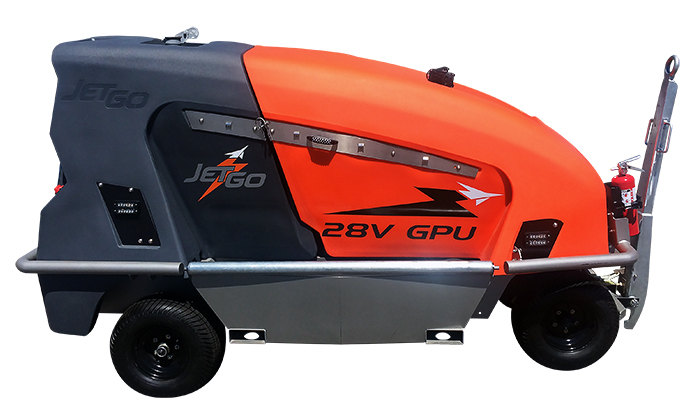

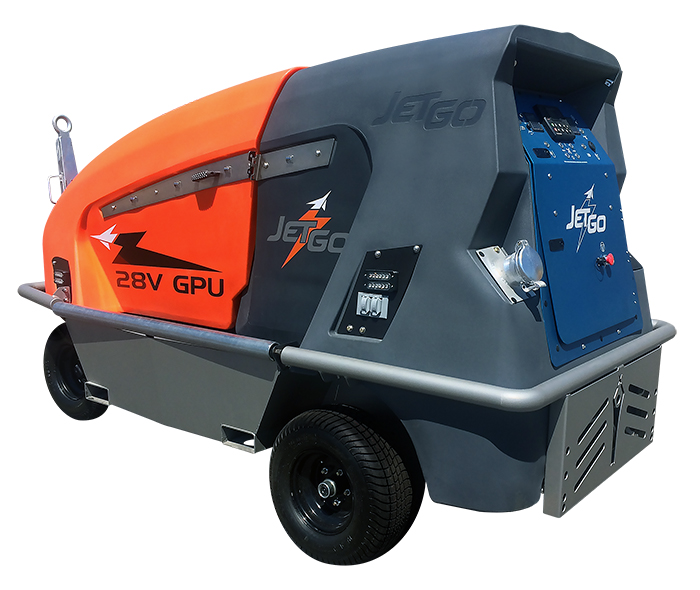

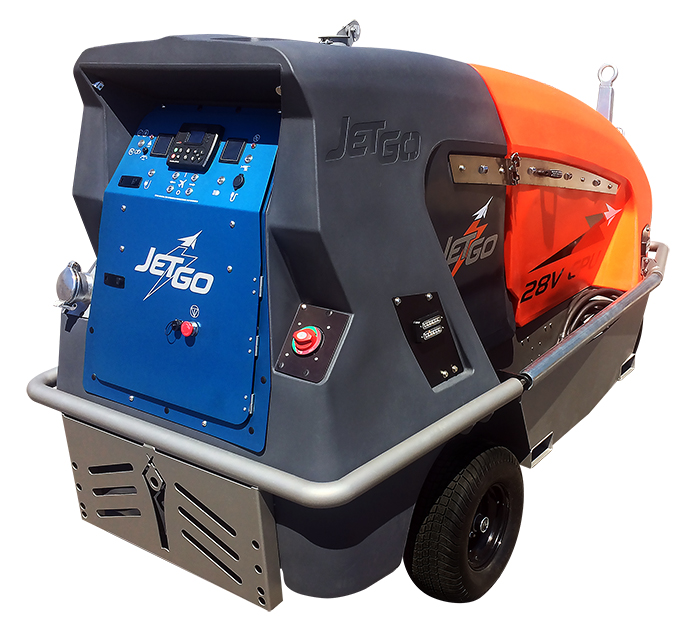

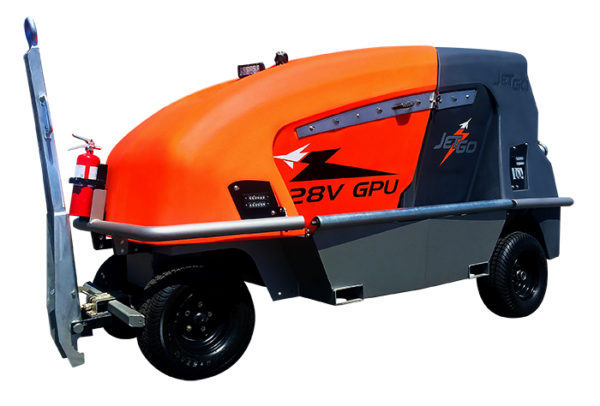

AERO JetGo 900 28V Diesel-Hybrid Ground Power Unit

Name: AERO JetGo 900 28V Diesel-Hybrid Ground Power Unit
SKU: 2006786

AERO Product ID: 2006786

Legacy AERO Product ID: N/A

This Item Will Be Quoted.

The AERO Specialties JetGo 900 is a groundbreaking development in our line of JetGo aircraft ground power units. Utilizing modern production methods and materials, we have created the most outstanding 28V GPU available. The all-new futuristic design, active aircraft safety features and reliable performance ensure that the JetGo 900 will be the dominant choice for your 28V ground power requirements.

This revolutionary GPU incorporates the highest continuous amperage in its class along with superior, safe starting amperage from the hybrid design. Featuring the well-proven water cooled Deutz 2.9TD Tier IV final engine, the JetGo 900 is designed to perform in the most arduous environments and the busiest of ramps. Industry leading 30’, 4/0 output cables including standard active thermal disconnect protection and long lasting ‘hardtip’ connector, standard LED floodlights, standard active overvolt protection systems, and standard OptiTune™ fine voltage adjustment on every unit ensures that this unit will be suitable and safe for every 28V DC aircraft. The JetGo 900 features a galvanized heavy duty trailer, oversized cable trays with rollers for easy deployment of output cables, rear suspension, and rugged fifth wheel towing system designed for demanding airline ramps.

Fuel-efficient diesel-hybrid design will run ~25 hours at 50% load
EPA Tier 4 Final compliant Deutz 2.9TD engine (does not require DEF)
Fully galvanized heavy-duty trailer with torsional suspension system and fifth-wheel steering with towbar
Protective galvanized steel bumpers
800 amps continuous and 2,000 amps peak performance (>2,000 amps in conjuntion with standard hybrid battery system)
Integrated digital MPC 10 generator controller with digital display allows for monitoring of engine and generator parameters
OptiTune™ feature allows for fine adjustment of output voltage from a nominal 27.0-29.0V
Blue “Hi-Viz” running lights
Overhead cable tray lighting
Standard LED adjustable flood lights
Standard low fuel “Hi Viz” warning beacons
Integrated USB charger
Turbine start redundancy utilizing unique hybrid battery design

Comprehensive 24 month warranty from date of delivery
Two-year or 2,000 hrs* full engine warranty plus an additional year or 3,000 hrs* on major components
- *Note 1: Whichever comes first
- *Note 2: Refer to all manufacturer’s manuals and documentation

Uncrated Dimensions:

126” L X 59” W X 66” H (3.2 x 1.5 x 1.7 m)
2,985 lbs. (1,354 kg.)

115V/20 amp or 220V/15 amp AC convenience receptacle
Towbar interlock protection system
12/14V 600amp output
Dual 28V output
Cold Weather Kit
Bumper Kit

Engine Specs

Fuel efficient Deutz 2.9TD 4-cylinder turbocharged diesel engine
24V engine electrical system
74hp, 2,400 RPM
Automatic regulation of power output with instantaneous full power on demand
Generator Performance: 800 amps continuous 28.5V and 2,000 amps 10 secs
Hybrid performance (standard operation): In excess of 2,000 amps >10secs available utilizing hybrid batteries in conjunction with generator. <0.1 ripple.

Fuel Consumption

1.2 gallons/hr (4.54 liters/hr) at 50% load

Fuel Tank Capacity

35 US gallons (132.5 liters)
Corrosion proof polypropylene tank
Approximately 25 hours run time at 50% load
Low fuel warning activation at 10% remaining
Electronic fuel shut off at 5% fuel remaining

Hybrid Battery System

Dual Northstar NSB 190FT-HT RED 12V (Pure Lead) cells
Zero maintenance AGM construction (1700 CCA)

Emission Compliance

Environmentally friendly, fuel efficient EPA Tier 4f compliant

Output Cable

Industry leading 30’, 4/0 output cables including standard active thermal disconnect protection and long lasting ‘hardtip’ connector

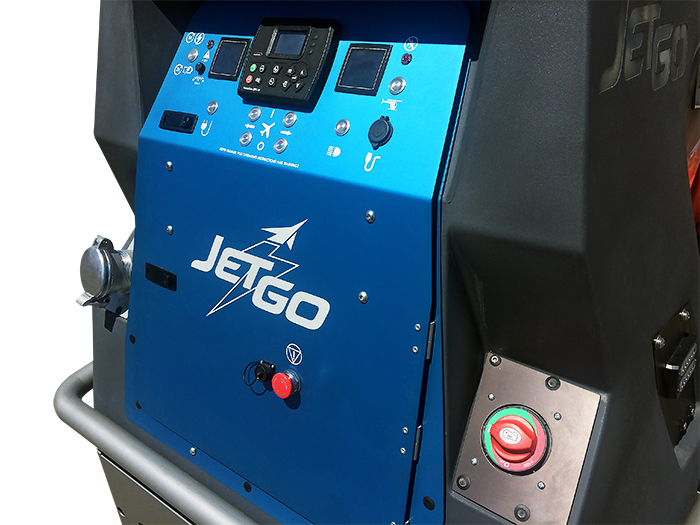

Engine Displays & Instruments

MPC 10 Digital Generator Controller
CANbus monitor reads engine and operating parameters
Built in alarms and fault code reporting
Service indicator
Modular solid state ‘plug and play’ relay system
Low oil, high temp, overspeed, underspeed, overvolt, low fuel, overcrank monitoring
Programmed clearance lighting incorporating flashing warning/alarm function
Active backlit digital volt & amperage gauges
Active overvolt control
Fine volt adjustment panel control 27.2V – 29.2V
Low amperage limit selection (“helicopter function”)
Two standard LED adjustable flood lights
USB charger
Military grade IP 67 actuation switches with homogenous lighting
E Stop and battery isolator switches

Construction

Fully galvanized heavy-duty trailer and dual oversized illuminated cable storage bins
Cable tray rollers allow for easy deployment of output cables
Torsional suspension system
Heavy duty fifth wheel front axle and towbar assembly
Wide, low roll resistance tires
Protective galvanized steel bumpers
Custom designed polypropylene foam filled enclosures
Available in white/grey or orange/grey color combination
Industry leading 30’, 4/0 output cables including standard active thermal disconnect protection and long lasting ‘hardtip’ connector
MIL-SPEC MS3506 cable heads with internal fused link

*Fuel Consumption data as shown above can vary. The calculation stated is a factor of theoretical fuel usage generated from onboard fuel prediction software and may not accurately represent the actual conditions under which this equipment is operated.
