2001104_Passenger_Stairway_134-223_01

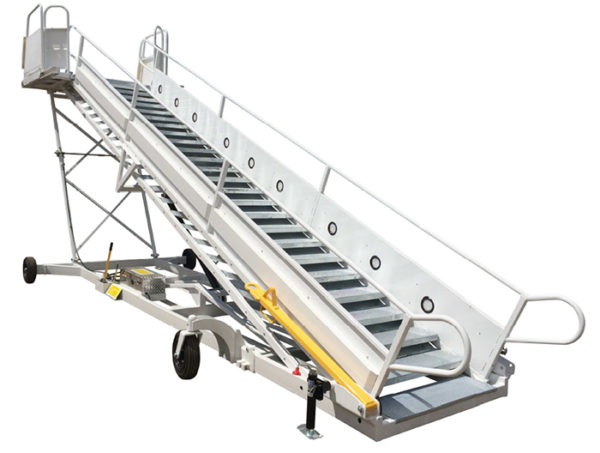

AERO 134″-223″ Towable Passenger Stairway

SKU 2001104 Category Towable Stairways

Legacy AERO Product ID: 001747

Brands: Airbus A300, Airbus A310, Airbus A320, Airbus A330-200, Airbus A330-300, Airbus A340-200, Airbus A340-300, Airbus A340-500, Airbus A340-600, Airbus Military (CASA) A330-MRTT

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Services various passenger door sill heights (from 134″ to 223″)
Platform size: 76″ x 50″
Step width: 48″
1,000 lbs. platform capacity
3,500 lbs. stairway capacity
Swivel platform bumper adjusts +/- 5 degrees
Galvanized steps & platform
Folding towbar with 3″ diameter eye
“Group 24” deep cycle battery
Adjustable platform height using hand pump
Battery powered LED lighting system with adjustable timer
Onboard battery charger
Battery level indicator
Stabilizer jacks
Sliding handrails to clear aircraft door
Non-marring soft rubber bumpers

Some of the aircraft serviced by this unit:

Airbus A300, A310, A320, A321, A330, A340
Boeing B747, B757, B767, B777, B787, MD-11
Lockheed L-1011 TriStar
McDonnell Douglas MD-11, DC-10

Shipping Dimensions:

Base length: 268”
Overall length: 403”
Width (no tires): 96”
Height (no tires): 98.5”
Weight: 4,500 lbs

Electric Power Lift: (Product ID 2001571)
- Includes hydraulic pump and motor, 12V DC battery, charger & backup hand pump.
Solar Charger Package for Remote Operations: (Product ID 2001613)
Canopy option

Canopy features removable roof attached at 6 points
Double U-Bolts at 4 locations
Existing step attachment bolts at 2 locations
Canopy covered with Lexan thermoclear twin wall bronze tint polycarbonate
