AERO Series Hydraulic Power Units, Size 2

SKU 2011339, 2016729, 2014254, 2016730 Categories , Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

HPU Application

Please describe your intended use (aircraft models, fluid types, etc.)

Options

Are you ready for fast, simple, and efficient operating and testing of your aircraft hydraulic systems? AERO Specialties Hydraulic Power Units are the answer to your needs. These units utilize state-of-the-art technology to offer more flow, more power, and less noise all at a competitive price.

AERO’s size 2 HPU features an easily drainable 20-gallon (75 liter) fluid reservoir (versus the larger 60-gallon [227 liter] reservoir of the size 3).

AERO’s HPUs are fitted with a modern digital display accompanied by an easy-to-use, software-driven operator interface. The included software allows for quick and easy access to settings, aircraft presets, calibration schedules, and more.

Our engineers developed these industry changing units with invaluable input from MROs and certified AMTs from around the world. Our HPUs offer advanced aircraft safety features, as well as electrical soft start that extends motor life by saving your motor from unnecessary wear and tear.

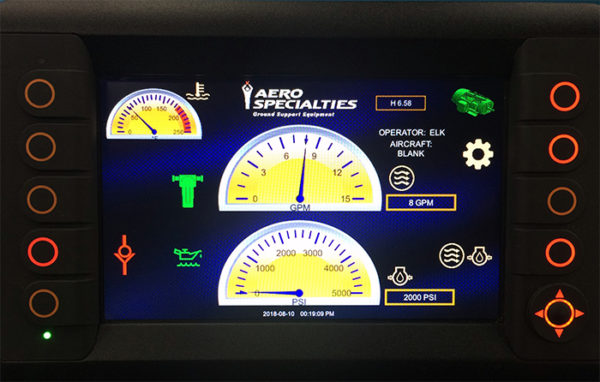

Push Button Digital Screen

  • Main dashboard displays live flow rate, pressure, fluid temperature, proper fluid level and the condition of both filters with an intuitive layout
  • Three programmable setpoints for flow and pressure
  • Available in French, German, English or Spanish in either metric or imperial units
  • Maintenance dashboard allows quick input of the date/time, operator and aircraft tail numbers and tracks filter replacement and gauge calibration
  • Easily navigated using backlit pushbuttons and rocker button
  • Data logging generates useful reports for each individual test performed with a time stamped data file of all pressure, flow and temperatures
  • Each file can be saved to a thumb drive and identified by the aircraft tail number

Standard Features

  • 3-micron synthetic pressure filter
  • 5-micron, high dirt holding capacity return filter
  • Visual and electronic filter clogging indicators
  • Automatic high fluid temperature shutoff
  • Visual reservoir sight glass
  • Automatic high/low level reservoir monitoring with automatic shutoff
  • 50 ft. (15.2 m) power cord, cables are pig-tailed and plug-ready (no plug included) – 2AWG 4 Conductor (25mm^2 EU)
  • 25 ft. (7.6 m) supply and return hoses
  • 5,000psi (345 bar) dual scale analog gauge
  • Low noise, (<74dBa) Quieter than a shop vacuum
  • Easy to access fluid sample port
  • Fluid sampling valve meets ANSI T2.24.1-1991
  • Easily drainable 20-gal (75 l) reservoir
  • Ergonomically designed for easy maneuverability and low clearance in tight hangers
  • Durable stainless-steel skins
  • Locking hinged access doors and fully removable top for maintenance access
  • Full true drip pan with drain plug
  • Leak preventing hose hangers
  • Electric soft start
  • Super bright green running light
  • Super bright red warning/error light
  • Voltage Monitor
  • CE Compliant

“We finally got to use the HPU on an aircraft last week and it worked perfectly. The pressure control is a really nice feature and it has to be the quietest HPU we have ever used. Thanks for the training, it served us well.”

-Stephen Ziglear, Director of Maintenance, Skyward Aviation

Comparable Tronair Hydraulic Power Unit (Mule, HPU): 51, 52, 53, 54 series

The equipment listed on this information sheet must only be operated by appropriately trained aircraft technicians.

HPU Testing Videos



Push Button Digital Screen

  • Main dashboard displays live flow rate, pressure, fluid temperature, proper fluid level and the condition of both filters with an intuitive layout
  • Three programmable setpoints for flow and pressure
  • Available in French, German, English or Spanish in either metric or imperial units
  • Maintenance dashboard allows quick input of the date/time, operator and aircraft tail numbers and tracks filter replacement and gauge calibration
  • Easily navigated using backlit pushbuttons and rocker button
  • Data logging generates useful reports for each individual test performed with a time stamped data file of all pressure, flow and temperatures
  • Each file can be saved to a thumb drive and identified by the aircraft tail number
Standard Features
  • 3-micron synthetic pressure filter
  • 5-micron, high dirt holding capacity return filter
  • Visual and electronic filter clogging indicators
  • Automatic high fluid temperature shutoff
  • Visual reservoir sight glass
  • Automatic high/low level reservoir monitoring with automatic shutoff
  • 50 ft. (15.2 m) power cord, cables are pig-tailed and plug-ready (no plug included) - 2AWG 4 Conductor (25mm^2 EU)
  • 25 ft. (7.6 m) supply and return hoses
  • 5,000psi (345 bar) dual scale analog gauge
  • Low noise, (<74dBa) Quieter than a shop vacuum
  • Easy to access fluid sample port
  • Fluid sampling valve meets ANSI T2.24.1-1991
  • Easily drainable 20-gal (75 l) reservoir
  • Ergonomically designed for easy maneuverability and low clearance in tight hangers
  • Durable stainless-steel skins
  • Locking hinged access doors and fully removable top for maintenance access
  • Full true drip pan with drain plug
  • Leak preventing hose hangers
  • Electric soft start
  • Super bright green running light
  • Super bright red warning/error light
  • Voltage Monitor
  • CE Compliant

  • Dry Weight: 1525 lbs. (692 kg)
  • Wet Weight: 1659 lbs(753 kg)
  • Crated Weight: 1800 lbs (816.5 kg)
  • Width: 43 in. (109 cm)
  • Height: 49 in. (124 cm)
  • Depth: 49 in. (124 cm)

HPU Model By AERO Product ID:

  • AERO Product ID 2011339
    • Max Flow Rate: 12 GPM (45 LPM)
    • Fluid Type: 5606/87257/83282
    • Motor Size: 15 HP (11 kw)
    • Max Pressure: 3,500 PSI (241 BAR)
    • Pressure Hose: -8 (.5")
    • Return Hose: -12 (.75")
    • Available Supply Voltage @50hz:
      • 200 VAC
      • 220 VAC
      • 380 VAC
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 208 VAC
      • 230 VAC
      • 380 VAC
      • 460 VAC
      • 575 VAC
  • AERO Product ID 2016729
    • Max Flow Rate: 12 GPM (45 LPM)
    • Fluid Type: Skydrol Type IV or V
    • Motor Size: 15 HP (11 kw)
    • Max Pressure: 3,500 PSI (241 BAR)
    • Pressure Hose: -8 (.5")
    • Return Hose: -12 (.75")
    • Available Supply Voltage @50hz:
      • 200 VAC
      • 220 VAC
      • 380 VAC
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 208 VAC
      • 230 VAC
      • 380 VAC
      • 460 VAC
      • 575 VAC
  • AERO Product ID 2014254
    • Max Flow Rate: 20 GPM (75 LPM)
    • Fluid Type: 5606/87257/83282
    • Motor Size: 30 HP (22 kw)
    • Max Pressure: 4,000 PSI (275 BAR)
    • Pressure Hose: -12 (.75")
    • Return Hose: -16 (1")
    • Available Supply Voltage @50hz:
      • 200 VAC
      • 220 VAC
      • 380 VAC
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 208 VAC
      • 230 VAC
      • 380 VAC
      • 460 VAC
      • 575 VAC
  • AERO Product ID 2016730
    • Max Flow Rate: 20 GPM (75 LPM)
    • Fluid Type: Skydrol Type IV or V
    • Motor Size: 30 HP (22 kw)
    • Max Pressure: 4,000 PSI (275 BAR)
    • Pressure Hose: -12 (.75")
    • Return Hose: -16 (1")
    • Available Supply Voltage @50hz:
      • 200 VAC
      • 220 VAC
      • 380 VAC
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 208 VAC
      • 230 VAC
      • 380 VAC
      • 460 VAC
      • 575 VAC
Additional Product Options:
  • Crossover check
  • Dual delivery 25' (7.6m) hoses
  • 50' (15.2m) delivery hoses
  • Dual delivery 50' (v) hoses
  • 100' (30.5m) power cord
  • Hand pump
  • Alarm

Specifications

  • Max Flow Rate: 20 GPM (90 LPM)
  • Fluid Type: Mineral Based or Skydrol Type IV or V
  • Max Pressure: 3,500 PSI (241 BAR)
  • Pressure Hose: -12 (3/4")
  • Return Hose: -16 (1")

Additional information

Model

15 HP Mineral Based, 15 HP Skydrol, 30 HP Mineral Based, 30 HP Skydrol
