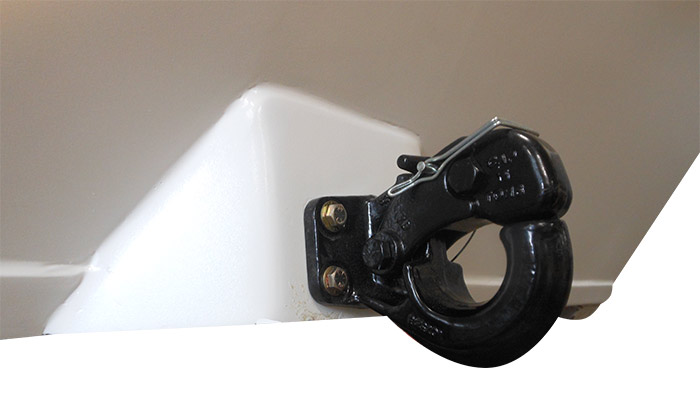

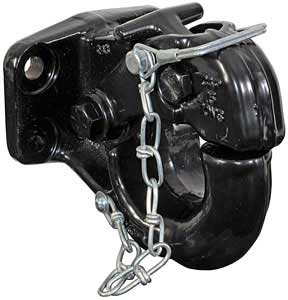

This Bolt-On Pintle Hook Hitch is designed to accommodate the lunette eye of a aircraft towbar or other towable ground support equipment. Drop forged alloy steel, finished with black powder coat for superior durability and corrosion resistance.
- 6,000 lbs. (2,721.55 kg.) maximum vertical load
- 30,000 lbs. (13,607.77 kg.) M.G.T.W.
- Lunette eye: 2″ to 3″ I.D. with 1-1/4″ to 1-5/8″ diameter section
- (4) 0.5″ mounting holes
- Includes mounting hardware and adhesive backed drilling template
- Weight: 12 lbs. (5.44 kg)
Compares to Tronair Pintle Hitches, part numbers K-4050, K-4175, K-4136.
