HT-60A Towbar (UH, HH-60, AH-64 Series Aircraft)

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

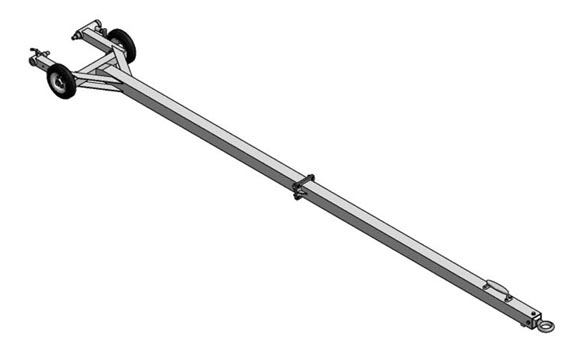

The Model HT-60A is a light weight aluminum tow bar designed for everyday ramp use and can be quickly broken down into two pieces for easy transporting. Pneumatic wheels take the hassle out of moving to and from the aircraft.

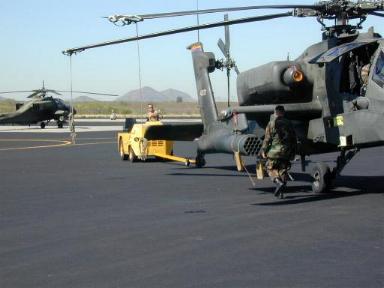

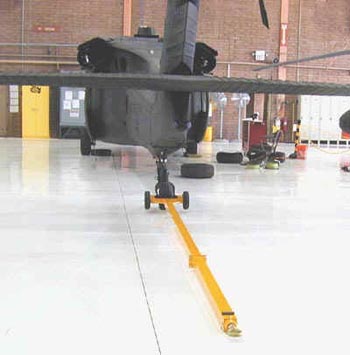

This towbar is used for Sikorsky UH, HH-60, H-60 Black Hawk, Boeing AH-64 Apache and AH-64 series aircraft with a single tail wheel. This towbar can be used for towing both the UH-60 and the AH-64 by locking the movable pin in the proper position.

The assembled overall length is approximately 13 ft. (3.96 m). This allows turning clearance for the horizontal stabilizer when using a Hummer as a tow vehicle.

  • Material: 2-piece aluminum
  • Assembled length: 13 ft. (3.96 m)
  • Finish: MIL yellow powder coat

The HT-60A Towbar has superseded the UH60-AH64-P portable Helicopter Towbar (PN: 2001375) that is no longer available.

NSN 1730-01-668-2178

Shipping dimensions:

  • 85" x 29" x 8" (216 x 74 x 20 cm.)
  • 72 lbs. (32.7 kg.))
