HT-7M Helicopter Towbar (MQ-8 Fire Scout, Bell UH-1, AH-1, 205, 206A/B 212, 412)

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Lead times vary, contact us for availability

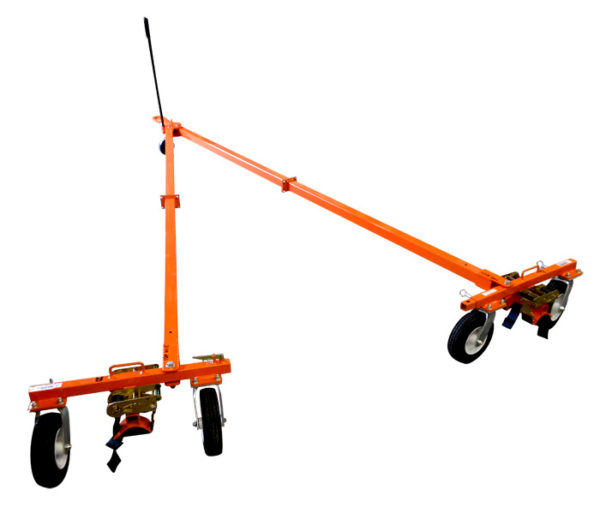

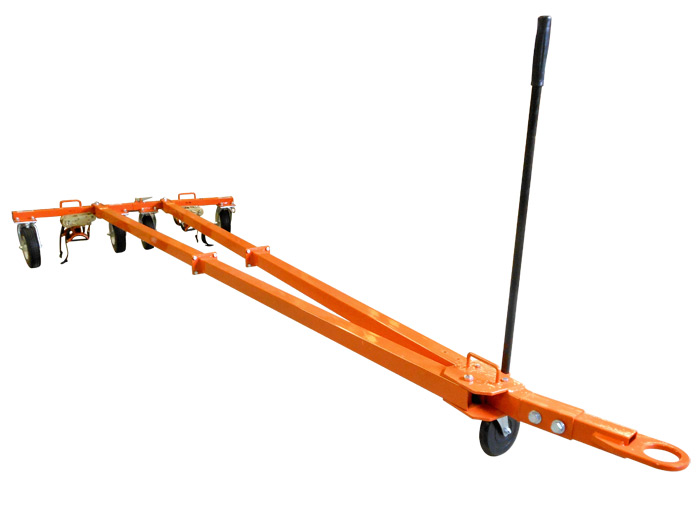

The HT-7M Helicopter Towbar is fabricated to withstand the forces of pushback and towing operations when attached to the skids of the Northrop Grumman MQ-8 (B & C) Fire Scout UAV as well as the Bell Huey family of helicopters, including the UH-1, AH-1, 204/205, 206A, 206B, 212 AND 412 type helicopters. This towbar will also fit Eurocopter skids (except AS-365 & EC-155).

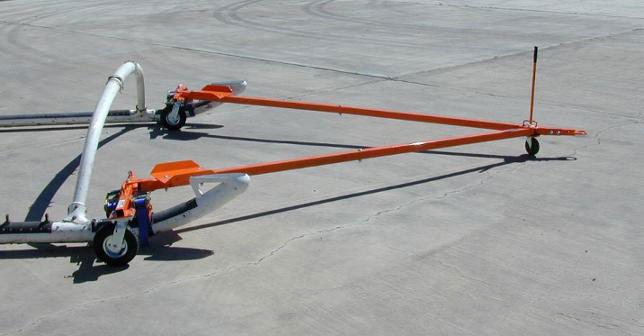

This towbar is a simple, easy-to-use towing solution that can be installed in 5 minutes and will not interfere with equipment mounted underneath the helicopter. To install, place the caster wheels over the skid tubes, then raise the helicopter up on the ground handling wheel. Allow enough room to slip the nylon straps under the skid and into the ratchets – ratchet the skid up into the rubber protected cups.

This towbar requires the use of ground handling wheels that must be purchased separately if your helicopter does not have them factory installed.

Applications:

  • Northrop Grumman MQ-8 (B & C) Fire Scout UAV
  • Bell UH-1
  • Bell AH-1
  • Bell 204/205
  • Bell 206A/206B
  • Bell 212, 214, 412
  • Eurocopter EC120, EC130, EC135, EC145

NSN: 1730-00-294-3031

  • 3.25" to 4.5" skid tube diameter
  • 25" to 120" adjustable skid spread
  • 140" total length
  • Towbar can be split into four (4) 5.5' pieces for easy transport
  • Pneumatic tires
  • Locking caster wheel
  • 2" inner diameter hitch ring
  • Orange powder coat paint
  • Weight: 155 lbs. (71 kg.)
