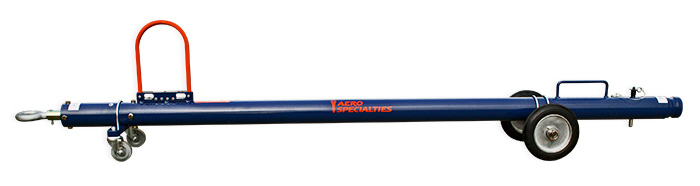

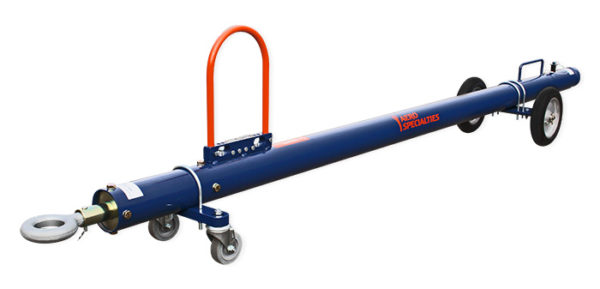

AERO JX Multi-Head Towbar, 125,000 lbs.

SKU 2024818 Categories , , ,
Legacy AERO Product ID: 003340 | 2002171
Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Aircraft operators have long been faced with a conundrum: is it best to use a strong (yet heavy) steel towbar, or to sacrifice some strength with a lightweight aluminum construction?

Our new towbar is the answer to your problems. Featuring the best of both worlds, the AERO Specialties JX-series multi-head aircraft towbar weighs only 110 lbs. (50 kg.), yet is constructed of heavy-duty DOM (Drawn Over Mandrel) 1026 cold-rolled seamless formed steel.

With a 3.25 inch (8.25 cm) diameter tube opening, the JX towbar is compatible with many towbar heads from AERO Specialties, Tronair, and other manufacturers.

The JX towbar has a towing capacity of 125,000 lbs. (56,699 kg.), making it the perfect solution for corporate and regional aircraft.

The strength of steel, with a similar weight to aluminum! Only from AERO.

  • 125,000 lb. capacity (56,699 kg.)
  • Heavy-duty 1026 cold-rolled seamless formed steel construction
  • “DropThru” linear shear protection on the lunette allows the operator to change a broken shear pin in seconds without tools and get back on the job, saving you from complicated and expensive ramp incidents
  • Proprietary elastomeric lunette cushioning system provides smooth and gradual resistance during push and pull operations
  • Lunette system is 100% maintenance free and won’t degrade over time
  • Limited tow-eye rotation
  • 3.25 inch (8.25 cm.) diameter tube opening accomodates many towbar heads manufactured by AERO Specialties, Tronair, and other manufacturers
  • 2.625 inch (6.67 cm.) lunette eyelet I.D.
  • Towbar weight: 110 lbs. (50 kg.)

Shipping dimensions (custom pallet):

  • Length: 139" (353 cm.)
  • Width: 22" (56 cm.)
  • Height: 15" (38 cm)
  • Weight: 154 lbs. (70 kg.)
