AERO TB125-5 5-Foot Multi-Head Towbar, 125,000 lbs.

SKU 2026274 Categories , , Tag
Legacy AERO Product ID: 001173

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Lead times vary, contact us for availability

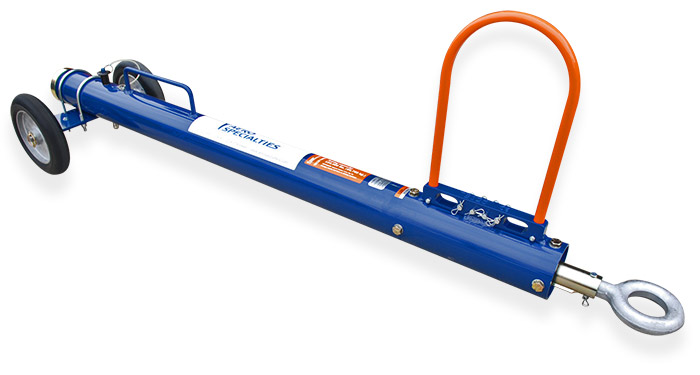

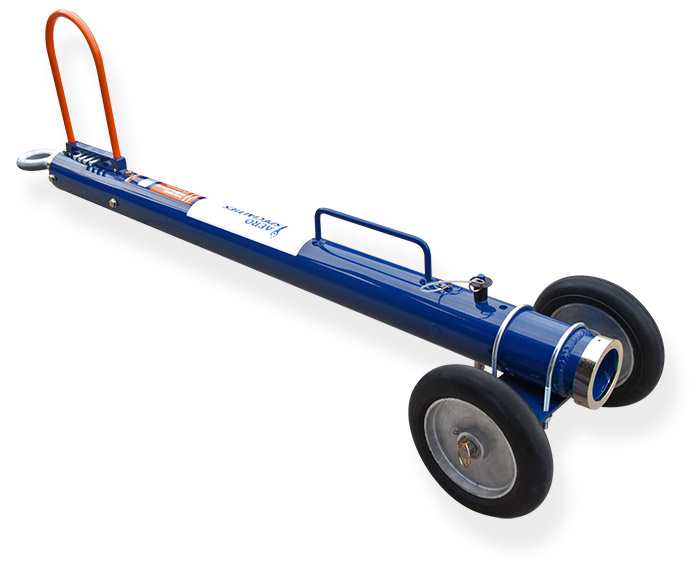

Our TB125-5 5-foot multi-head aircraft towbar is used for aircraft weighing up to 125,000 lbs. (56,699 kg.), and accepts all AERO Specialties aircraft towbar heads in that weight range.  The special 5-foot length allows maximum use of an entire hangar – even around tight corners. The TB125-5 also accepts other manufacturers’ towbar heads in this class.

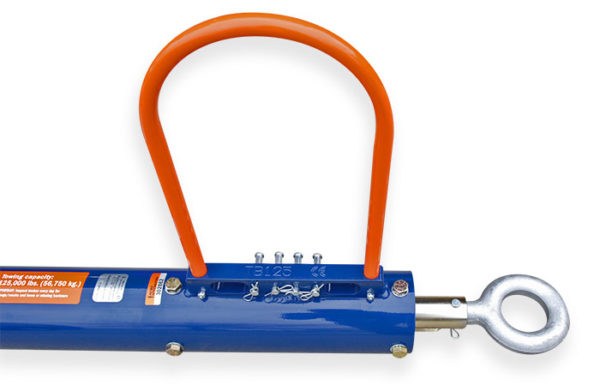

The TB125-5 features linear shear protection and limited eye rotation – a no-maintenance elastomer shock-absorbing lunette assembly, and a no-tool, field-replaceable drop-through shear pin system. The handle has also been upgraded, incorporating an easy-access spare shear pin holder.

AERO Specialties is the approved and preferred manufacturer of towbars and heads for Horizon, Frontier, and Mesa regional airlines, as well as most major FBO chains such as Signature Flight Support, Landmark Aviation, and Atlantic Aviation.

Compares to Tronair 125,000 lbs. capacity multi-head towbars, part numbers 01-1270-0010 and 01-1290-0100.

  • 3-1/4" I.D. heavy-duty, powder-coated, aluminum tube construction
  • 2.625" (6.67 cm) I.D. shear-protected hitch ring (lunette)
  • Includes quick-release Ball Lock head attachment pin with lanyard.
  • Head attachment hole is 9" (to center of hole) from end of tube
  • Heavy-duty caster and wheel assemblies (cusion-ride, flat-free tires)

Unit Dimensions: 70.5" L x 7.5" H x 5" W (179.07cm x 19.05cm x 12.7cm)

Unit Weight: 50 lbs. (22.68 kg.)
