These heavy-duty fluid service units are available in 5 and 20 gallon capacities and are built to withstand the test of time. All units are available in two configurations. The first configuration is designed for Skydrol or Chevron Hy-Jet IV type fluids. The second configuration is designed for MIL-H-5606/83282/87257 type fluids, turbine fluids, and engine oil. These units are constructed with a rotational-molded polyethylene tank and a pump, bracket, and handle made of anodized aluminum. These units feature a 15-foot service hose and a 10-micron filtration system. When not servicing aircraft and dispensing fluids, these service units can be used as a reservoir for fluid storage.

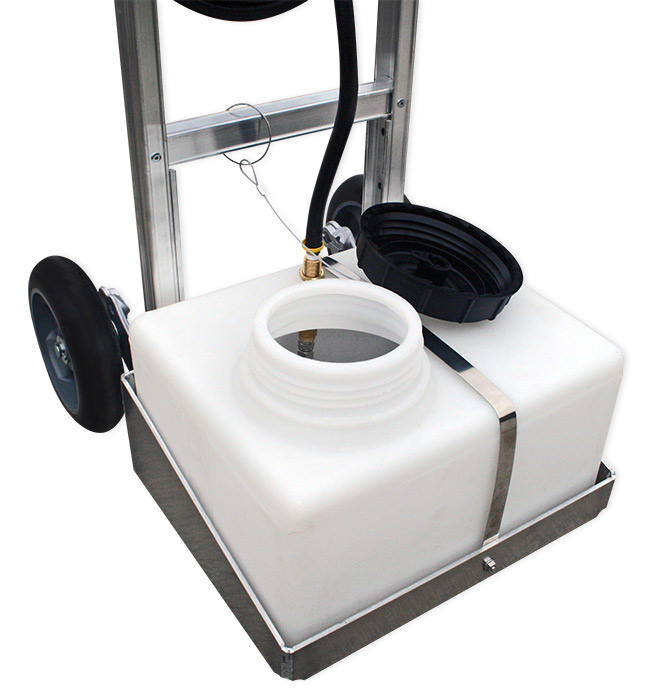

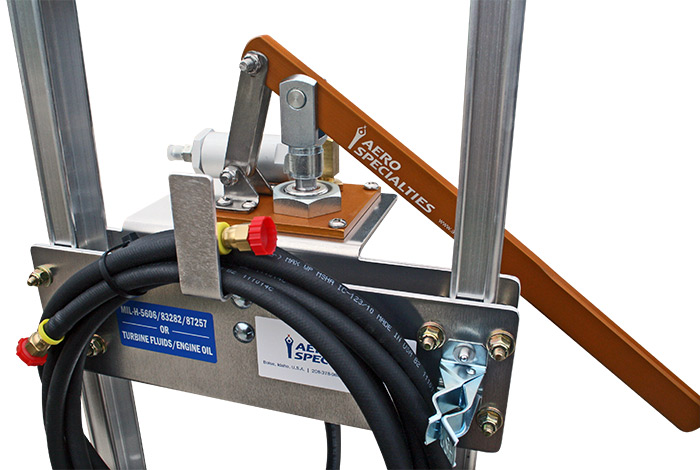

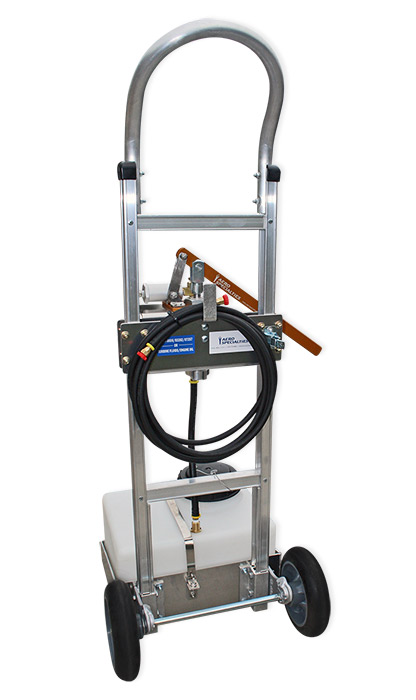

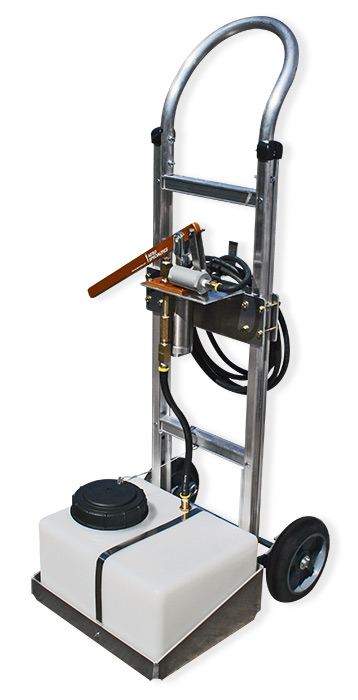

Note: Photos show our 5-Gallon unit, Product ID 002004.
Compares to Tronair Military Fluid Servicing Reservoirs (Hydraulic & Engine Oil Service Units), part numbers 06-5021-1500, 06-5021-1800, 06-5021-3600, 06T5021-1500, 06T5021-3600, 06-5042-0500, 06-5042-0800, 06-5042-3600, 06-5020-1500, 06-5020-1800, 06-5020-3600, 06-5043-1500, 06-5043-1800, 06-5043-3600, and 06-5084-1500.
PN’s: 2001313, 2001308, 2001318, 2001302, 2001310, 2001307
Unit dimensions: 23-3/4” x 40-1/2” x 24-1/2”
Unit weight (dry): 37 lbs. (16.81 kg.)
Gross weight: 74.5 lbs (33.86 kg.)
Shipping dimensions: 42-1/2” x 18-1/2” x 24-1/2”
AERO Product ID by configuration:
- 2001307 (Legacy AERO Product ID: 002009):
- 5 Gallons, Skydrol/Hy-Jet IV
- 2001302 (Legacy AERO Product ID: 002004):
- 5 Gallons, MIL-H-5606/83282/87257
- 2001318 (Legacy AERO Product ID: 002020):
- 20 Gallons, Skydrol/Hy-Jet IV
- 2001313 (Legacy AERO Product ID: 002015):
- 20 Gallons, MIL-H-5606/83282/87257
Other options:
