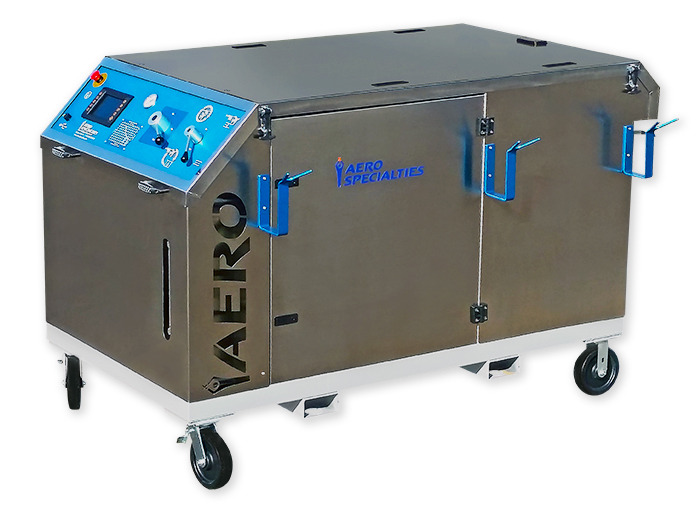

AERO Series Hydraulic Power Units, Size 3

This Item Will Be Quoted.

Clear

HPU Application

Please describe your intended use (aircraft models, fluid types, etc.)

Options

Are you ready for fast, simple, and efficient operating and testing of your aircraft hydraulic systems? AERO Specialties Hydraulic Power Units are the answer to your needs. These units utilize state-of-the-art technology to offer more flow, more power, and less noise all at a competitive price.

AERO’s size 3 HPU features an easily drainable 60-gallon (227 liter) fluid reservoir (versus the 20-gallon [75 liter] reservoir of the size 2).

AERO’s HPUs are fitted with a modern digital display accompanied by an easy-to-use, software-driven operator interface. The included software allows for quick and easy access to settings, aircraft presets, calibration schedules, and more.

Our engineers developed these industry changing units with invaluable input from MROs and certified AMTs from around the world. Our HPUs offer advanced aircraft safety features, as well as electrical soft start that extends motor life by saving your motor from unnecessary wear and tear.

Comparable Tronair Hydraulic Power Unit (Mule, HPU): 56 & 57 series

The equipment listed on this information sheet must only be operated by appropriately trained aircraft technicians.

HPU Testing Videos





Push Button Digital Screen:

  • Main dashboard displays live flow rate, pressure, fluid temperature, proper fluid level and the condition of both filters with an intuitive layout
  • Three programmable setpoints for flow and pressure
  • Available in French, German, English or Spanish in either metric or imperial units
  • Maintenance dashboard allows quick input of the date/time, operator and aircraft tail numbers and tracks filter replacement and gauge calibration
  • Easily navigated using backlit push buttons and rocker button
  • Data logging generates useful reports for each individual test performed with a time stamped data file of all pressure, flow and temperatures
  • Each file can be saved to a thumb drive and identified by the aircraft tail number
Standard Features:

  • 3-micron synthetic pressure filter
  • 5-micron, high dirt holding capacity return filter
  • Visual and electronic filter clogging indicators
  • Automatic high fluid temperature shutoff
  • Visual reservoir sight glass
  • Automatic high/low level reservoir monitoring with automatic shutoff
  • 50 ft. (15.2 m) power cord, cables are pig-tailed and plug-ready (no plug included) - 2AWG 4 Conductor (25mm^2 EU)
  • 25 ft. (7.6 m) supply and return hoses
  • 5,000 psi (345 bar) dual scale analog gauge
  • Low noise, (<74dBa) Quieter than a shop vacuum
  • Easy to access fluid sample port
  • Fluid sampling valve meets ANSI T2.24.1-1991
  • Easily drainable 60-gallon (227 l) reservoir
  • Ergonomically designed for easy maneuverability and low clearance in tight hangers
  • Durable stainless-steel skins
  • Locking hinged access doors and fully removable top for maintenance access
  • Full true drip pan with drain plug
  • Leak preventing hose hangers
  • Electric soft start
  • Super bright green running light
  • Super bright red warning/error light
  • Voltage Monitor
  • CE Compliant

  • Dry Weight: 2700 lbs (1225 kg)
  • Wet Weight: 3120 lbs (1415 kg)
  • Crated Weight: 3000 lbs (817 kg)
  • Width: 43 in. (109.22 cm)
  • Height: 52 in. (132.08 cm)
  • Depth: 81 in. (205.74 cm)

HPU Model By AERO Product ID:

  • AERO Product ID 2015078
    • Max Flow Rate: 45 GPM (170 LPM)
    • Fluid Type: Skydrol Type IV or V
      • Motor Size: 40 HP (29 kw)
    • Max Pressure: 4,000 PSI (275 BAR)
    • Pressure Hose: -16 (1")
    • Return Hose: -24 (1.5")
    • Available Supply Voltage @50hz:
      • 380 VAC
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 380 VAC
      • 460 VAC
  • AERO Product ID 2016904
    • Max Flow Rate: 45 GPM (170 LPM)
    • Fluid Type: Skydrol Type IV or V
      • Motor Size: 60 HP (44 kw)
    • Max Pressure: 4,000 PSI (275 BAR)
    • Pressure Hose: -16 (1")
    • Return Hose: -24 (1.5")
    • Available Supply Voltage @50hz:
      • 415 VAC
      • 440 VAC
    • Available Supply Voltage @60hz:
      • 460 VAC
    • AERO Product ID 2016905
      • Max Flow Rate: 45 GPM (170 LPM)
      • Fluid Type: Skydrol Type IV or V
        • Motor Size: 75 HP (56 kw)
      • Max Pressure: 4,000 PSI (275 BAR)
      • Pressure Hose: -16 (1")
      • Return Hose: -24 (1.5")
      • Available Supply Voltage @50hz:
        • 440 VAC
      • Available Supply Voltage @60hz:
        • 460 VAC
        Additional Product Options:
      • AERO Product ID 2017901: Crossover check
      • AERO Product ID 2017828: Dual delivery 25' (7.6m) hoses
      • AERO Product ID 2017820: 50' (15.2m) delivery hoses
      • AERO Product ID 2017825: Dual delivery 50' (v) hoses
      • AERO Product ID 2017106: Towing option
      • AERO Product ID 2017835: 100' (30.5m) power cord
      • AERO Product ID 2017853: Hand pump
      • AERO Product ID 2017917: Alarm


  • Max Flow Rate: 47 GPM (177 LPM)
  • Fluid Type: Skydrol Type IV or V
  • Max Pressure: 4,000 PSI (275 BAR)
  • Pressure Hose: -16 (1")
  • Return Hose: -24 (1.5")

Additional information

Model

40 HP (29 kw), 60 HP (44 kw), 75 HP (56 kw)
