AERO 35 Ton Axle Jack

SKU 2020692 Categories ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

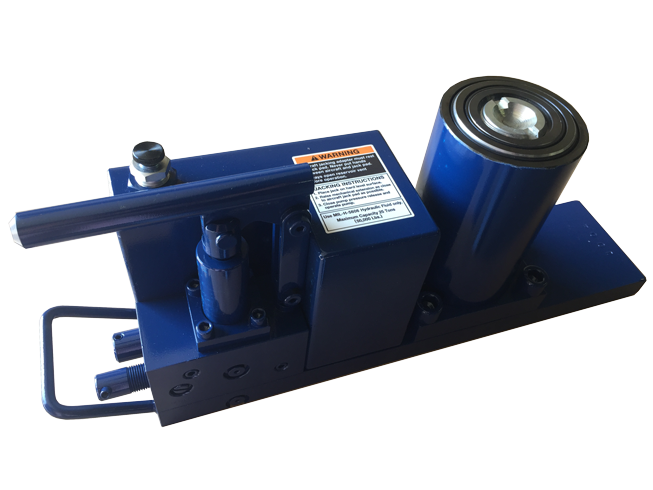

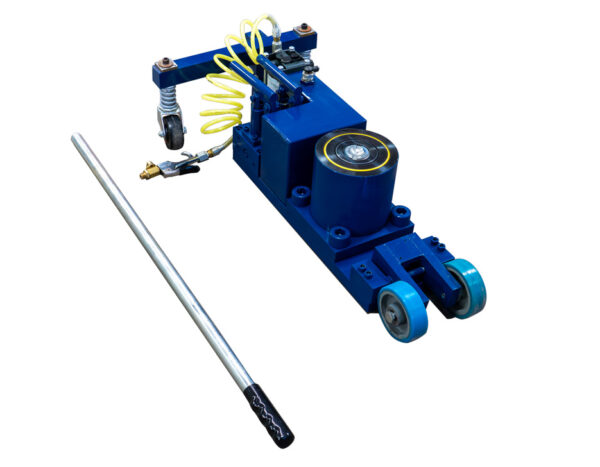

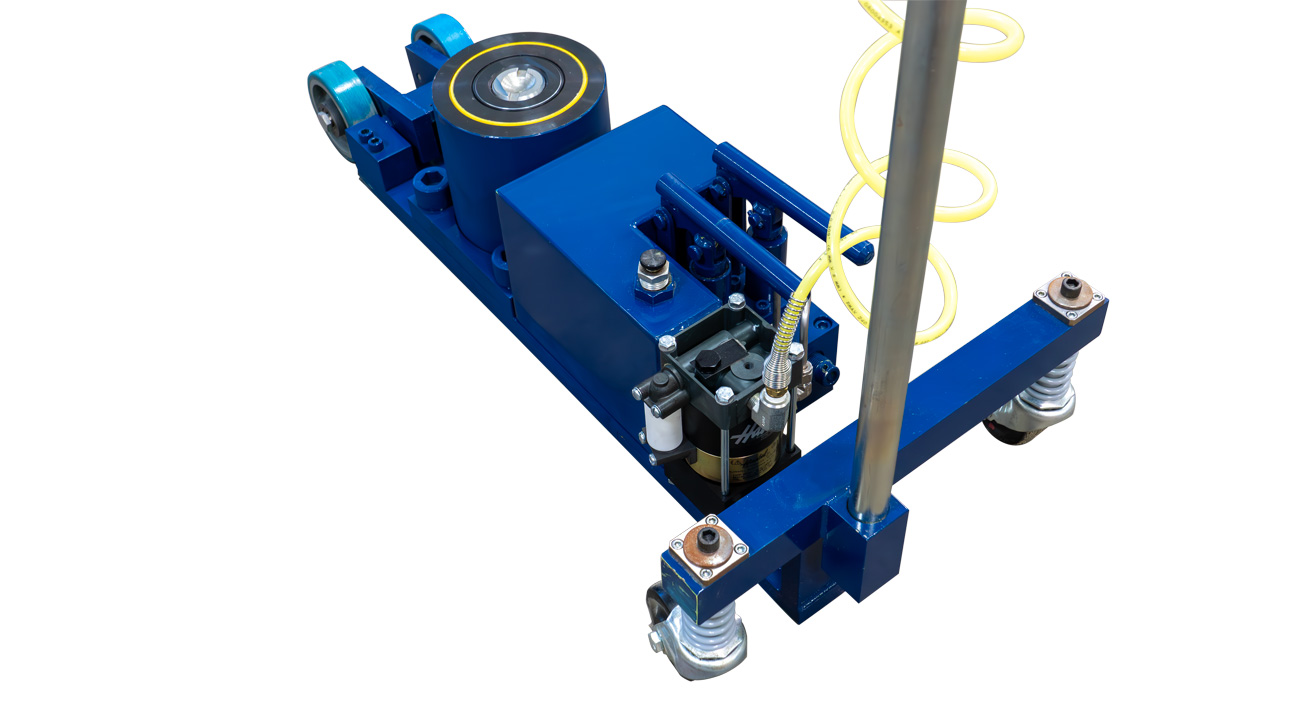

AERO Specialties 35-ton axle jacks. These jacks are used to lift aircraft for maintenance purposes. Our dedicated OEM manufacturing team of engineers, machinists, mechanics, welders and painters take great pride and work hard to produce precision aircraft servicing equipment of exacting standards. These rugged jacks are built to withstand harsh conditions and provide years of service.

The model 2012185 axle jack has a weight capacity of 35 tons (31.75 metric tons) and is capable of 11 inches (28 cm) of lift. Our series of axle jacks is available in various configurations, with 12 and 25-ton capacity units available. These hydraulic lifting jacks feature steel construction, manual hand pump, safety relief valve, and use 5606 hydraulic fluid for operation. The filler/breather cap is easily accessible to avoid damage caused by spills.

Aircraft axle jacks are used in aircraft maintenance to assist in changing tires, performing brake service, servicing wheels, and other procedures in which lifting the main or nose landing gear is necessary.

Compares to Tronair Axle (Axel) Jack, part number 02A7867C0100

  • Closed Height: 7.5” (19 cm)
  • Mechanical Extension: 4" (10 cm)
  • Hydraulic Extension: 11" (28 cm)
  • Fully Extended: 22.5" (57 cm)
  • Spring Loaded Swivel Casters

Unit Dimensions:

  • Length: 33" (84 cm)
  • Width: 7" (18 cm)
  • Weight: 150 lbs. (68 kg)
    • Spring Loaded Swivel Casters
