AERO Specialties 12/24V GA Pack Aircraft Start Unit

SKU 2210712 Category Tag
Legacy AERO Product ID: 2021225
Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Lead times vary, contact us for availability

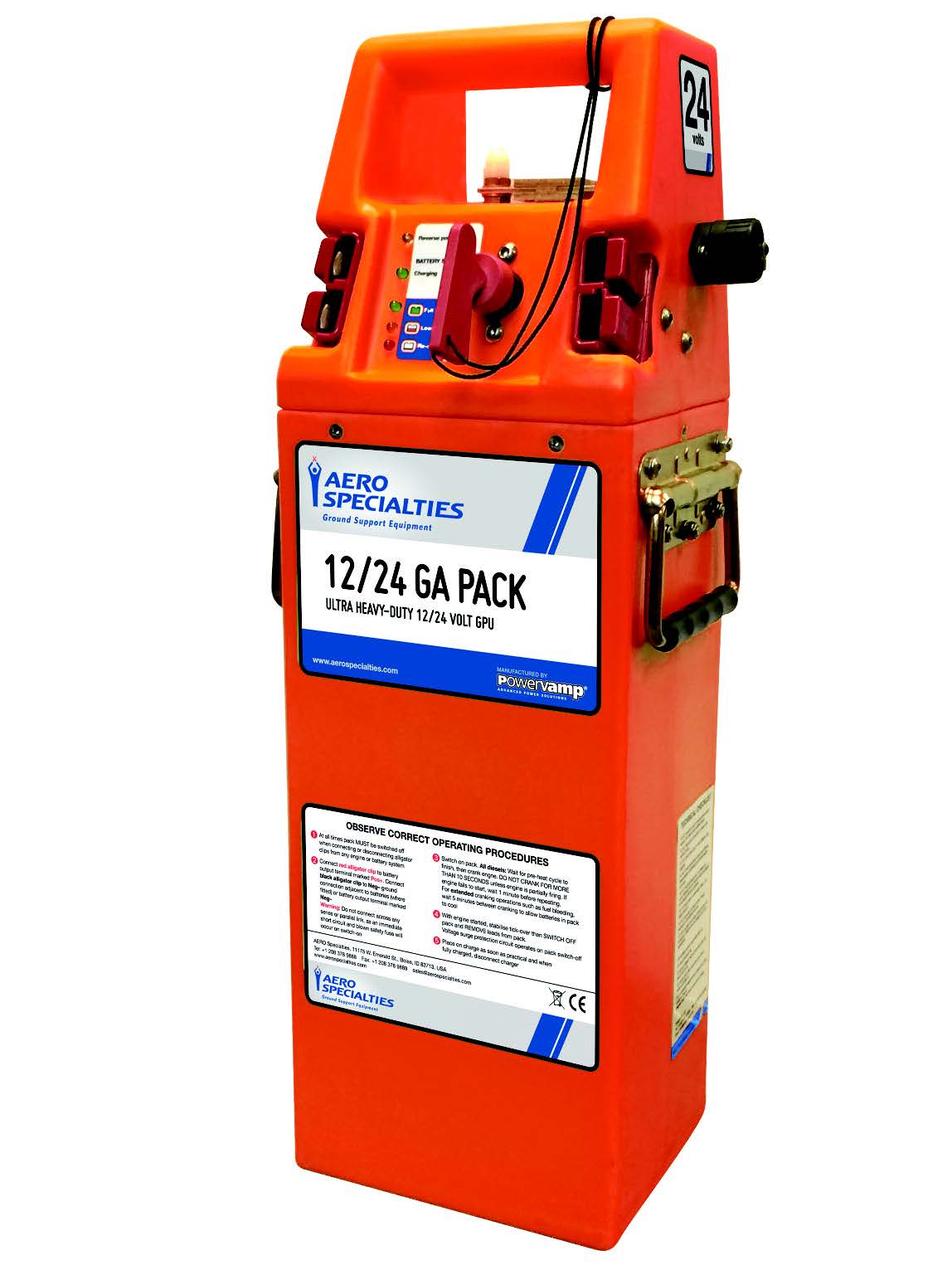

Produced in partnership with Powervamp, the 12/24V GA Pack is a tough, budget-priced, dual voltage aircraft start unit designed for the private owner and general aviation operator. It uses the same high quality, high-discharge batteries as used in Powervamp’s premium aviation product range. Ideal for smaller turbine aircraft and helicopter operators, all piston aircraft, or where the starting of 24V trucks and 12V vehicles is also a requirement.

The powerful dry-cell batteries are isolated via the internal 500A key switch allowing the aircraft start unit to be cleared for air-transportation. An externally mounted 750A fuse offers protection against excessive use or a dead short across the output cables.

The impact resistant polyethylene case allows the start unit to sit in snow or flooded sites up to 300mm (12in) deep without water ingress. The 12/24V GA Pack is supplied with an external 10A charger and two lead sets for both aircraft and automotive applications.

The solid state LED display shows battery status when the pack is switched on. An audible reverse polarity alarm warns against incorrect connection.

Optional accessories include longer lead sets and an on board charging kit (OBCK) to allow the pack to be charged via any automotive 12V DC vehicle cigarette/auxiliary socket.

Compares to: Red Box RB25 & RB25A, Start Pac 1324QC

  • High powered sealed lead acid AGM battery
  • Cleared for air transportation
  • External charger with LED status indicator
  • 3 LED battery charging status display
  • Aircraft cable with Piper connector
  • Aircraft cable with heavy-duty NATO connector
  • Cast brass, braided and fully insulated colour-coded alligator clips for direct battery connection
  • Tough polyethylene case
  • Audible reverse polarity warning buzzer
  • Voltage spike protection
  • Switched USB socket for mobile phone/tablet charging
  • External 750A output fuse
  • Output key switch isolator

  • L: 7" (180mm)
  • W: 6" (160mm)
  • H: 22" (570mm)
  • Weight: 55 lbs. (25kg)

  • GA Pack trolley
  • 4m croc leads
  • 2m piper lead
  • 4m piper lead
  • 4m Nato lead
  • 24V inspection lamp
  • On-board charging kit

  • Peak amps**: 2400A
  • Nominal voltage: 12V / 24V DC
  • Standing voltage: 12.8V and 25.6V DC
  • Amp/hour capacity: 26 Ah @ 10 hr rate (20°C)
  • Fuse rating: 750A
  • Operating temp: -40°C to +45°C. (-40°F to + 114°F)
  • Case: Moulded impact resistant polyethylene
  • Aircraft cable: 2m (6ft) with heavy-duty rubber Nato connector
  • Automotive cable: 2m (6ft) lead set with 1000 amp alligator clips for direct battery connection
  • Charger: 10A 3-stage external charger / 110–230V AC / 50–60Hz / single phase
  • NCAGE: KD628

Additional information

Weight 69 lbs
Dimensions 28 × 12 × 20 in
