TLD NBT-ER Walk-Behind Belt Loader (Electric)

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

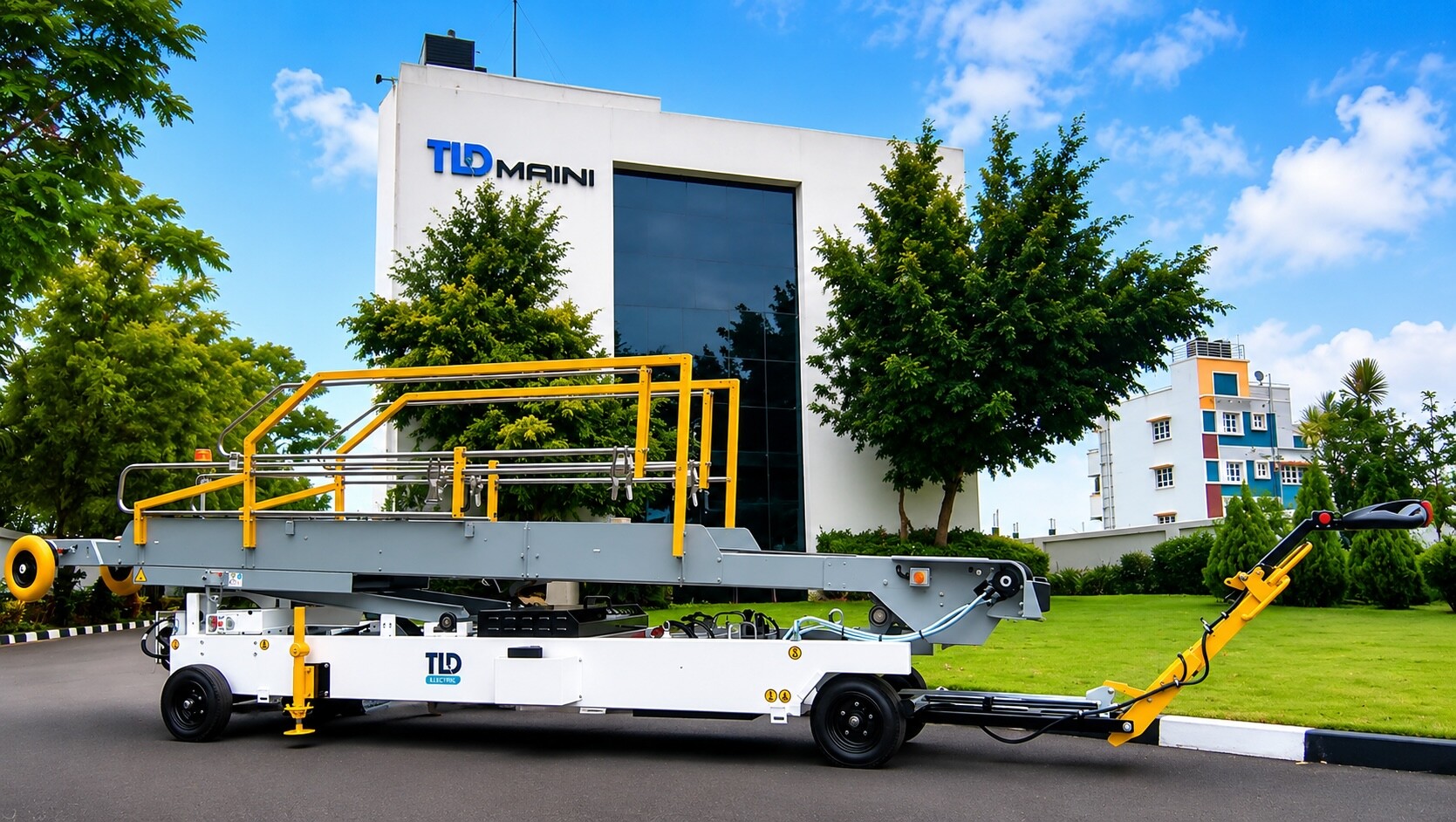

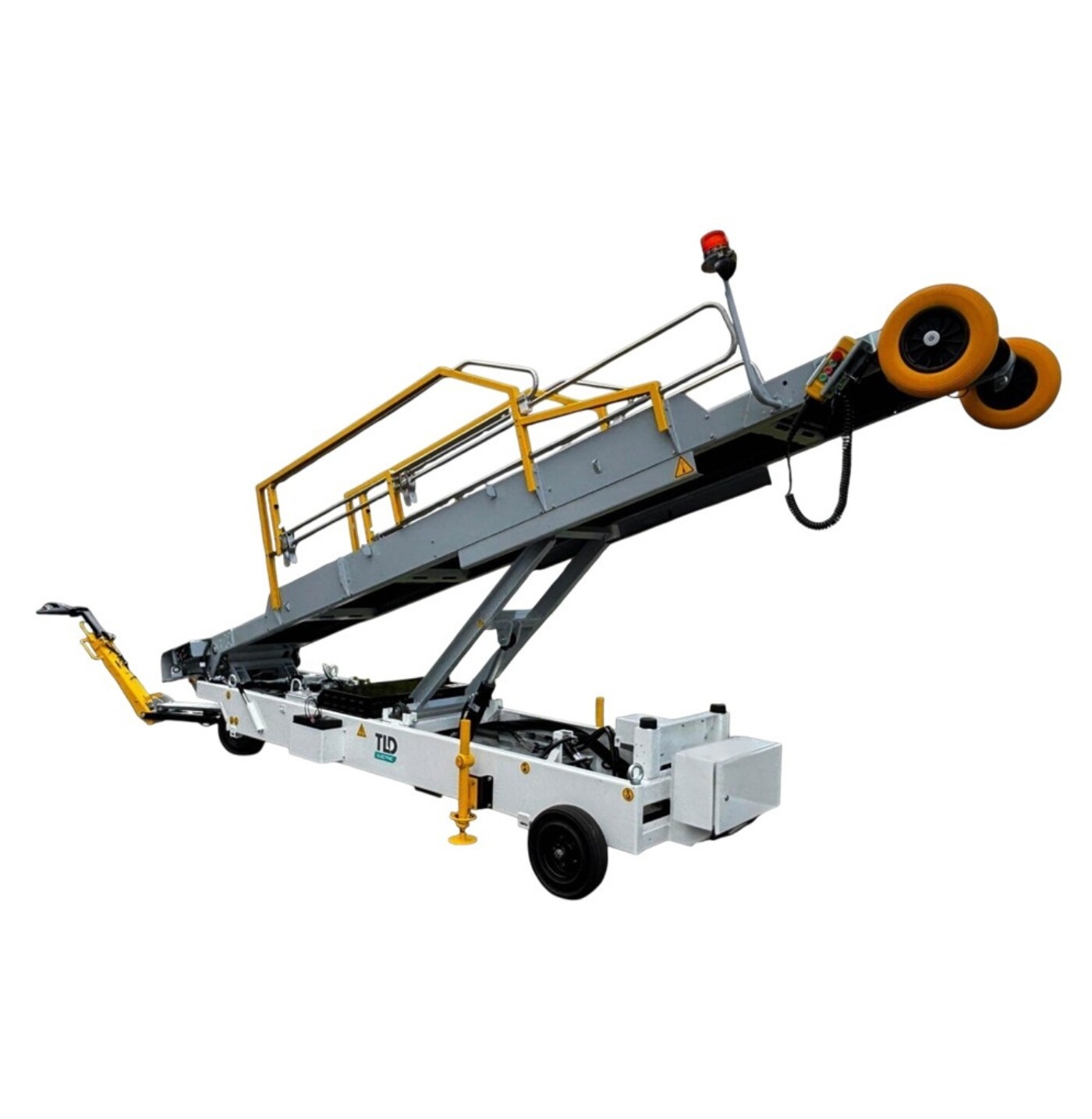

The electric TLD NBT-E is a versatile walk-behind and towable belt loader designed to serve business jets, regional airlines, and narrow-body aircraft. Its walk-behind capability provides added flexibility and maneuverability around the aircraft, while its towable design allows for efficient transport across the ramp.

The NBT-E can service bulk cargo doors for baggage and oversized packages, including aircraft with some of the lowest doorsill heights in the industry. It is built with heavy-duty components and efficient electric and hydraulic systems to deliver dependable performance, reduced emissions, and low maintenance costs.

A wide range of customization options allows the NBT-E to meet specific operational requirements, including adaptable handrails, a front bumper, an all-weather canopy, an off-board charger, and stabilizers. Ergonomically designed, the NBT-E offers excellent maneuverability, easy access to key components, and intuitive control panels for efficient, user-friendly operation.

  • Vehicle Weight: 4078 lbs (1850 kg)

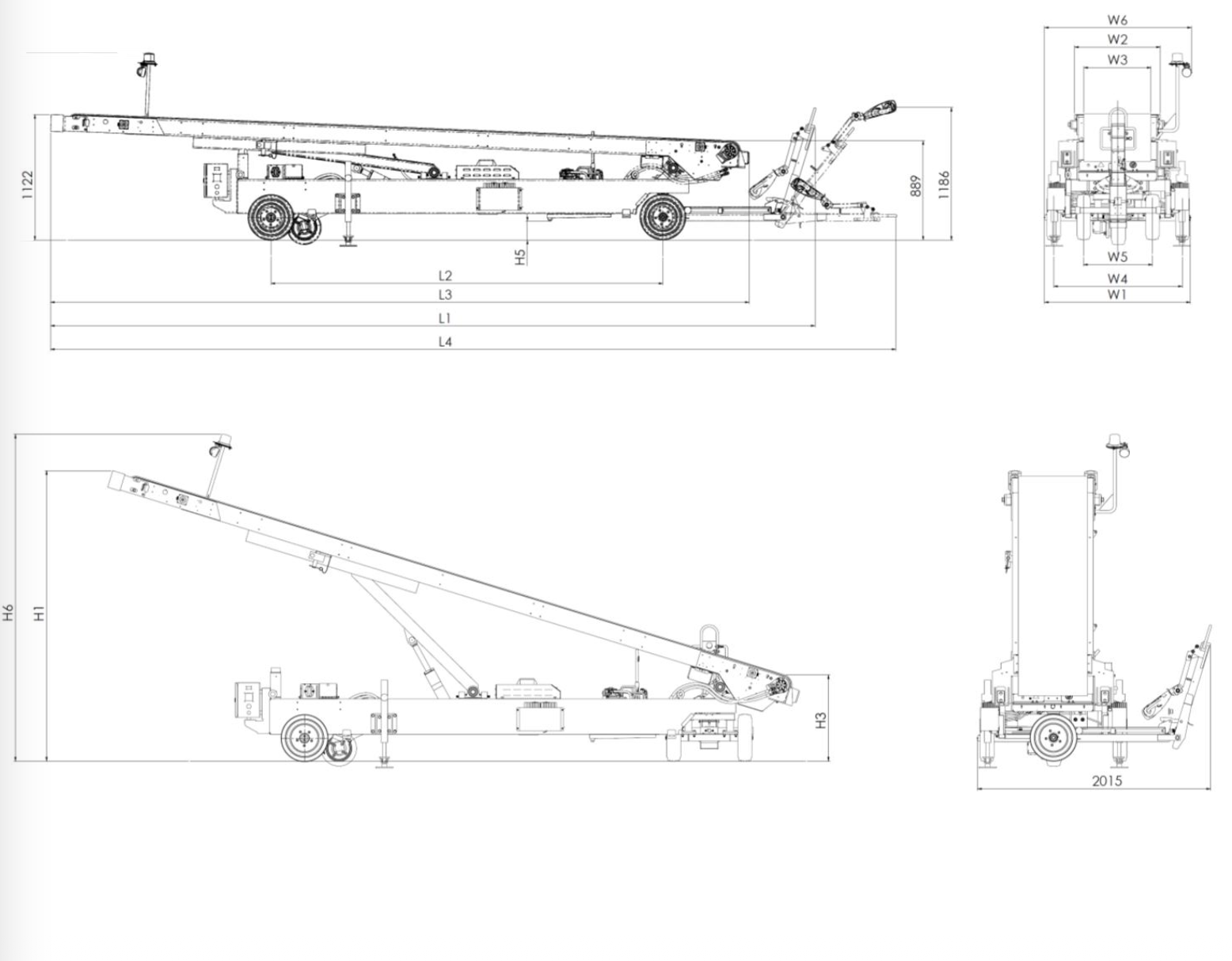

  • Operation height – min (front) 44″ (1122mm)
  • Operation height – max (front) 99″ (2515mm)
  • Operating height – min (rear) 22″ (742mm)
  • Operating height – max (rear) 35″ (889mm)
  • External charger
  • Double side handrail
  • Collapsable guiderail
  • Belt speed control
  • Wheel chock with holder
  • Pendent to operate from aircraft luggage compartment
  • Front movement buzzer
  • Proximity sensor with buzzer
  • Guiderail
  • Fire extinguisher
  • Motor: AC motor, power: 4 kW at 2,000 rpm
  • On-Board Charger: Input Supply: single phase, 50/60 Hz, Working Range: 170~300 VAC, 45~65 Hz, AC Input Current: ~ 7A at 230 VAC
  • Inverter: AC 48V inverter
  • Battery: 48V 150 Ah, Lead Acid
  • Front Axle: Fifth-wheel steering and rear stabilizer
  • Rear Axle: Two single fixed wheels at rear
  • Hydraulic Circuit: The hydraulic flow (9 lpm) for all the functions is provided by a gear pump
  • Front and rear solid wheels (4.00 X 8-3.75)

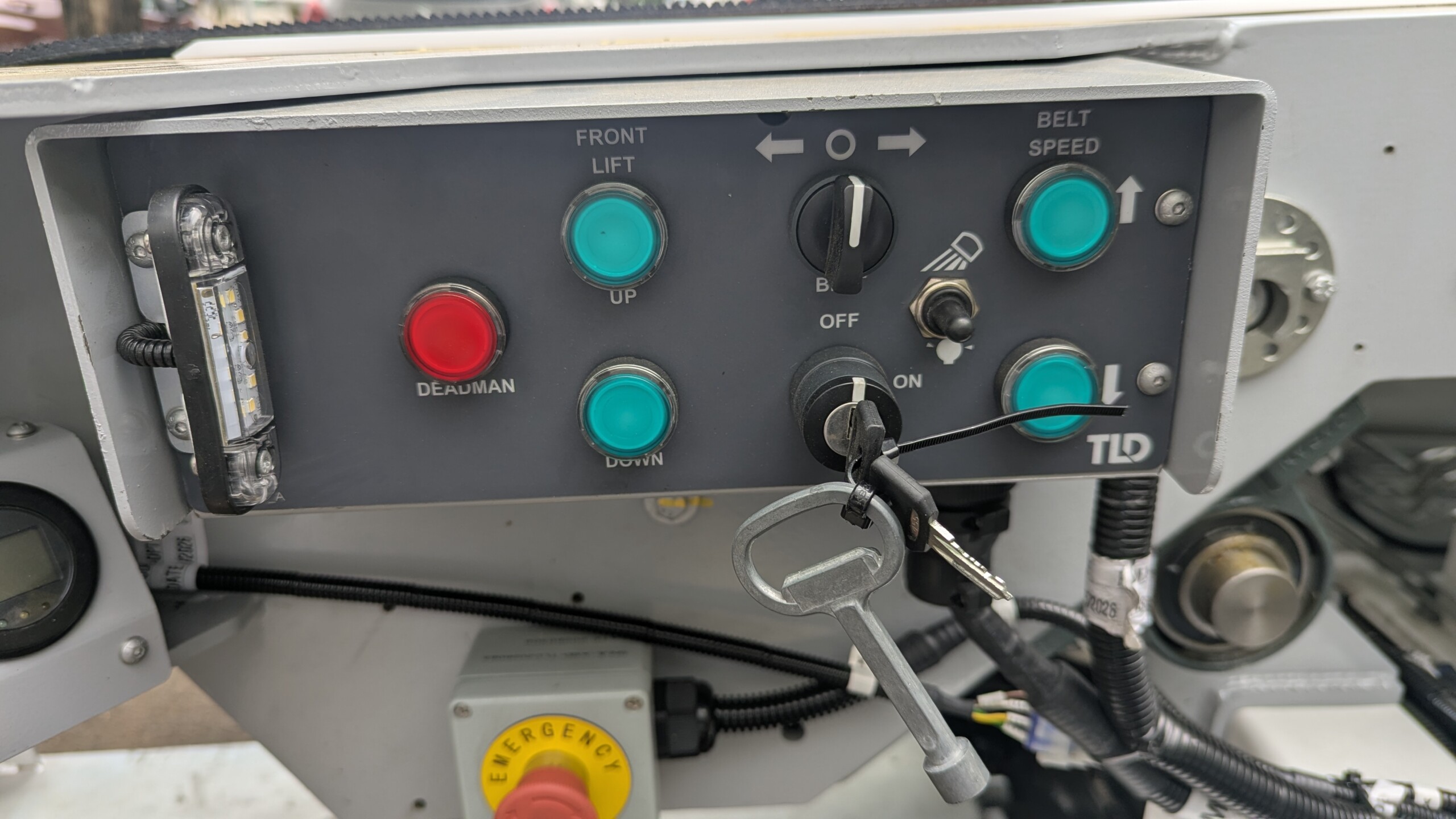

  • Fixed control box at rear RHS of the boom
  • Boom length 6,000 mm ; width: 600 mm
  • Emergency Stops (4x NBT-EF, and 5x NBT-ER)
  • Mechanical parking brake
  • Amber flashing beacon
  • Stapled belt
  • Solid tires
  • 810 kg maximum load capacity evenly distributed
  • Variable belt speed at 8-27 m/min
  • White paint RAL 9016, wheels grey RAL 7042 and security components yellow RAL 1007
  • Key Features:

    • Environmentally friendly – zero carbon emissions, no noise, and no vibration
    • The 6m boom design allows the boom to reach the lowest level in the market 1.2 m, and can serve all doors up to 2.7 m
    • Reliable and easy to maintain – lower maintenance, higher availability rate, no fuel consumption, significantly reducing your TCO
    • The 6-meter boom uses the same design and many of the same components as the RBL, so most boom spare parts are interchangeable with the RBL and NBL.

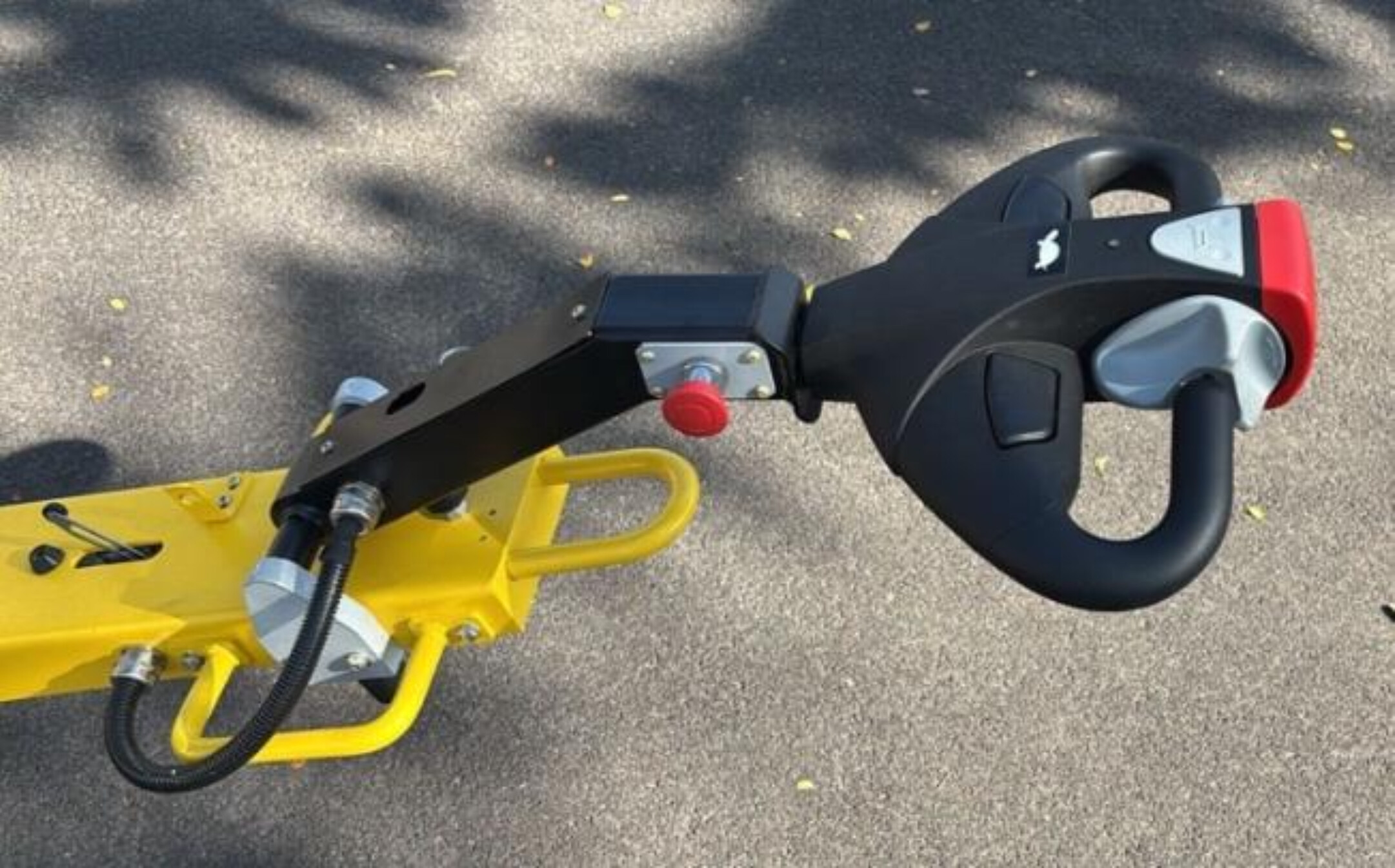

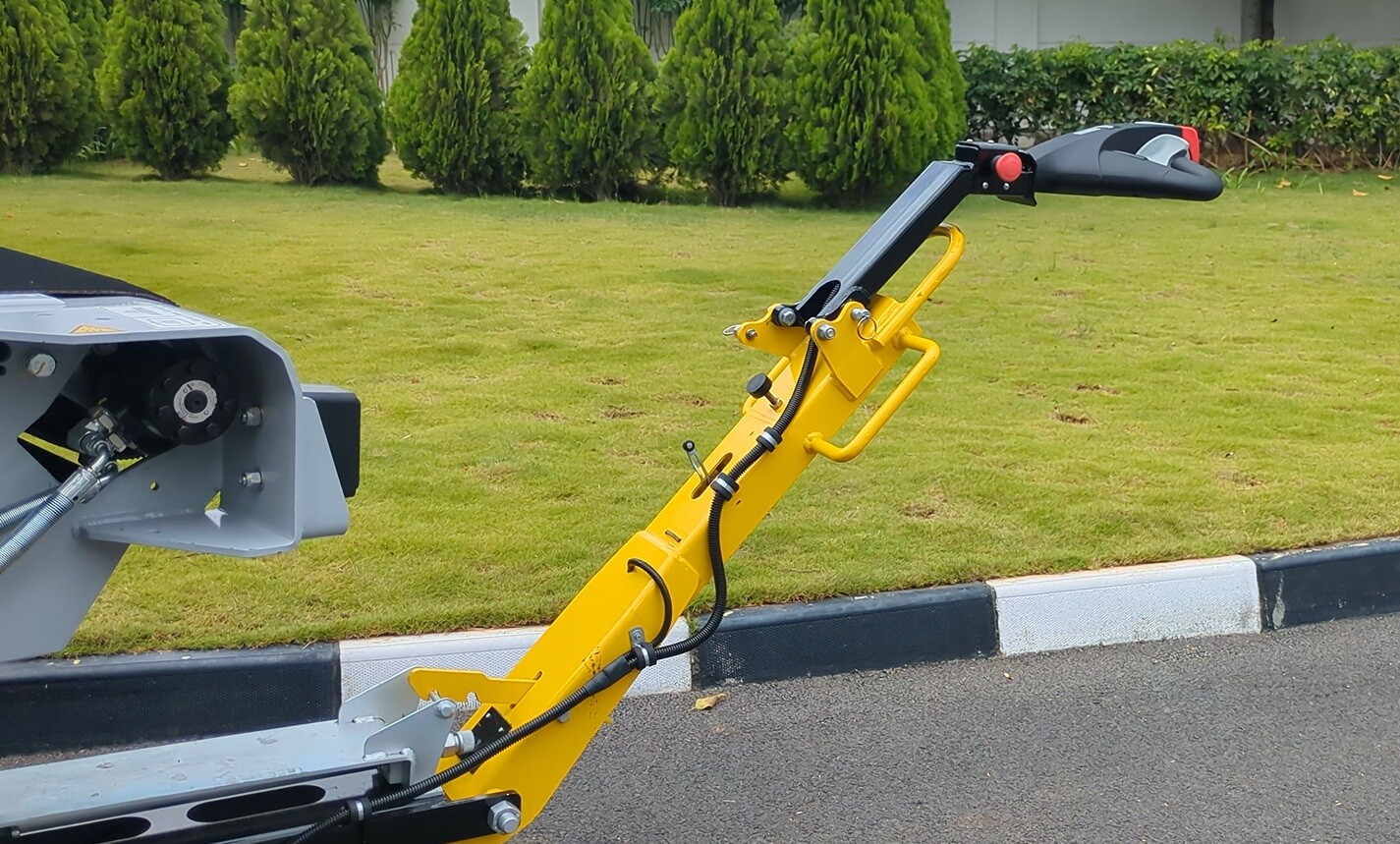

    • Walk-behind and towable operation for enhanced maneuverability
    • Load capacity of 810kg when boom down condition and 455kg during max angle
    • Suitable for regional, business jets and narrowbody aircrafts
    • Emergency stop buttons on all four corners
    • Variable Belt speed from 8 to 30m/min
    • On-board charger and emergency hand pump
