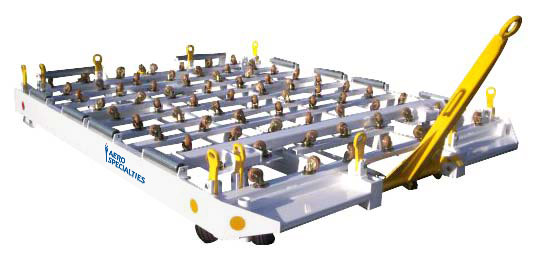

2710 Caster Bed Pallet Trailer

2710 Caster Bed Pallet Trailer

SKU: 2004011
Category:
Legacy AERO Product ID: 2710
This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.



Add to Quote

  • Cargo capacity: 15,000 lbs (6,804 kg).
  • Pallet capacity: 96″ x 125″ (243.84 cm x 317.5 cm) and 88″ x 125″ (223.52 cm x 317.5 cm).
  • E-Z bolt on stops for lower deck containers.
  • Spring loaded tip-up pallet stops. Ten stops per unit.
  • 76 casters with ten 2 1/2 “diameter lead on rollers.
  • 400 X 8 X 3.75 solid rubber tires mounted on demountable rims.
  • Towbar actuated brakes.
  • Rear hitch is an E-type, spring loaded pin unit. Other hitches are available upon request.
  • Front dual wheel swivel casters with dual rear wheels.
  • Stackable for shipping and storage in the ramp area.

Conveyor Deck:

  • Height: 20.5″ (52.07 cm)
  • Width: 97″ (246.38 cm)
  • Length: 128″ (325.12 cm)

Unit:

  • Height: 20.5″  (52.07 cm)
  • Width: 102″ (259.1 cm)
  • Length with tow bar down: 188″ (477.52 cm)
  • Length with tow bar up: 146″ (370.84 cm)

Shipping Weight: 2150 lbs (975 kg)
