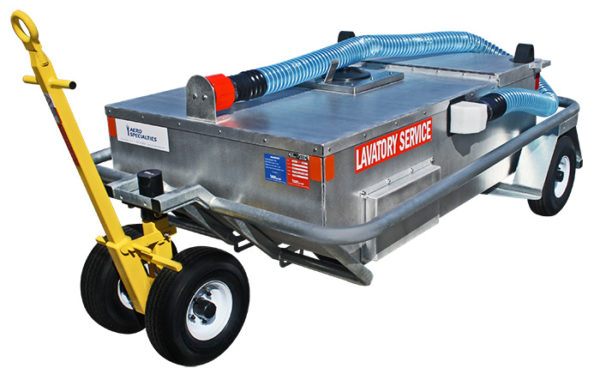

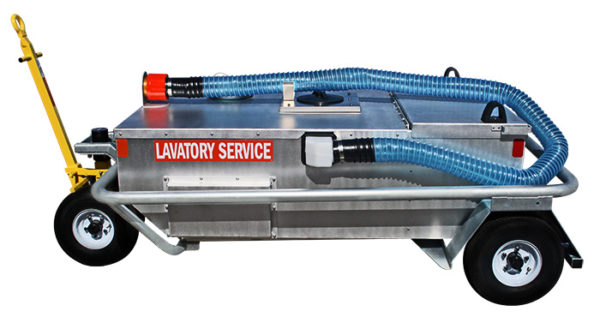

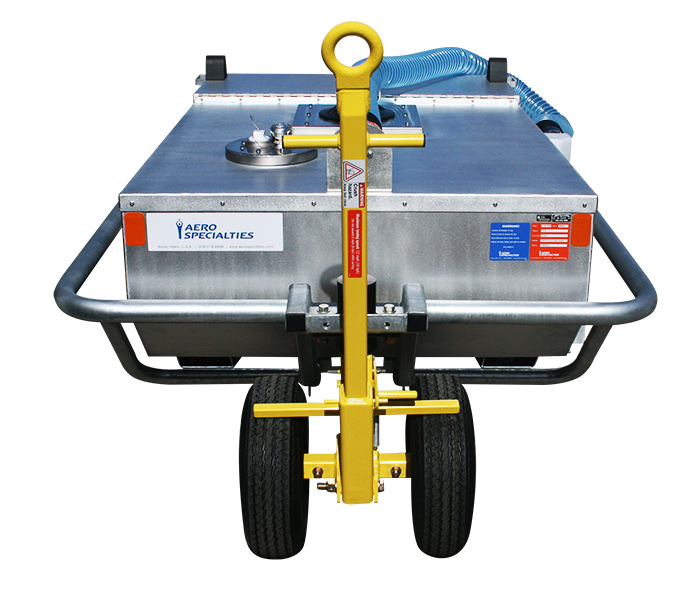

AERO LC180-RJ2E Electric Lavatory Service Cart

SKU 2001010 Category Tags ,
Legacy AERO Product ID: 001647
Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Designed for commercial air carriers, busy FBOs and military customers, the LC180-RJ2 is built to exceed rigorous standards for ramp equipment durability. The unit features a heavy-duty galvanized frame that completely wraps the unit, protecting it from potential damage. The cabinet is constructed of a heavy-gauge aluminum enclosure that will never require painting and is not affected by moisture or corrosive chemicals. All RJ2 series carts are completely winterized and totally enclosed in a high-density foam insulation system with onboard heaters to keep the unit ramp ready in any climate (fluids and storage compartments).

Compares to Tronair 204 Gallon Lavatory Service Cart/Unit, part numbers 10-6401-0010, 10-6411-0000.

NSN 4510-01-619-1377.

  • LC180-RJ2E: 12V DC electric pump; 6 gal/min (22.7 L/min) at 50 psi max; includes on-board battery and charging system
  • Rotationally-molded polyethylene tanks
  • 8,000 lb (3,628.7 kg) galvanized steel chassis with heavy-duty running gear
  • 110 gal waste, 70 gal fill/flush tank (416.4 L waste, 265 L fill/flush)

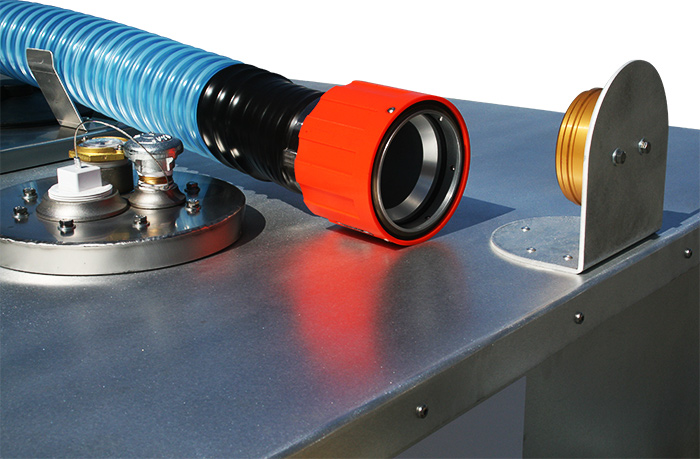

  • 12' (3.66 m) waste hose with straight 4" (10.1 cm) GA coupler
  • 10' (3.1 m) sealed cart dump hose
  • 12' (3.7 m) fill hose with fill coupler and plug
  • Low-profile 28" (71.1 cm) waste inlet height
  • Fill water drain-back and sealed waste hose storage
  • Gravity dump; requires no waste pump
  • Winterization kit, with insulated aluminum case and component compartments
  • Digital flow meter
  • FDA-approved
  • CE-certified and marked

L: 112" x W: 68" x H: 46" (L: 284 cm x W: 173 cm x H: 117 cm); 980 lbs (445 kg)

Option AERO Product ID
Safe-Lav Retrofit Kit 2011074
Solar Charger Kit and Panel 2000955
Personal Protective Gear Package 2000961
Breakaway Coupler 2001117
Wye (Y) Waste Coupler 2000958
Alternate Waste Hose 7' (2.1 m) 2000729
Alternate Waste Hose 10' (3.1 m) 2001359
Alternate Waste Hose 15' (4.6 m) 2001360
Back-up Hand Pump 2000702
Corner Bumper Kit 2006323
Lav Treatment Fluid (Blue), gal 2004950
Lav Treatment Fluid (Clear), gal 2004952
Lav Treatment Powder (Blue), tube 2001505
LearJet, HondaJet Lav Adapters and Stow Bracket Kit 2003054
Wheel Chock Holder 2003052
Safety Disconnect Towbar Cover 2008735
Waste valve configuration options:
  1. Standard outlet with dump hose
  2. 90˚ downturn (downturn elbow w/safety cap)
  3. Closed waste assembly
