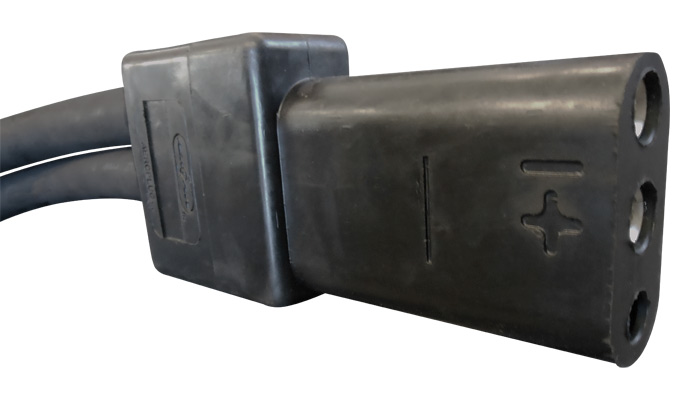

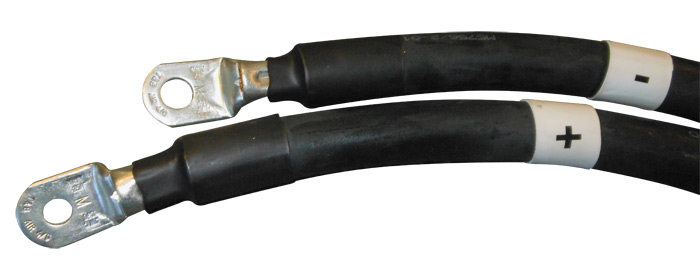

Is it time to replace that worn aircraft GPU cable? This easy-to-install GPU cable connects to the GPU power supply to the aircraft. Our DC GPU cable assembly has positive and negative battery terminals at the supply end of the cable with a molded 3-pole 28V DC aircraft plug that attaches the GPU to the aircraft.
Constructed of a proprietary synthetic elastomer, the molded aircraft plug/head has excellent moisture, chemical and abrasion resistance qualities. Each connector has silver-plated tellurium copper contacts with quad beams and engineered steel springs that assure consistent contact for thousands of cycles. Silver-plated tellurium copper contacts reduce contact electric resistance.

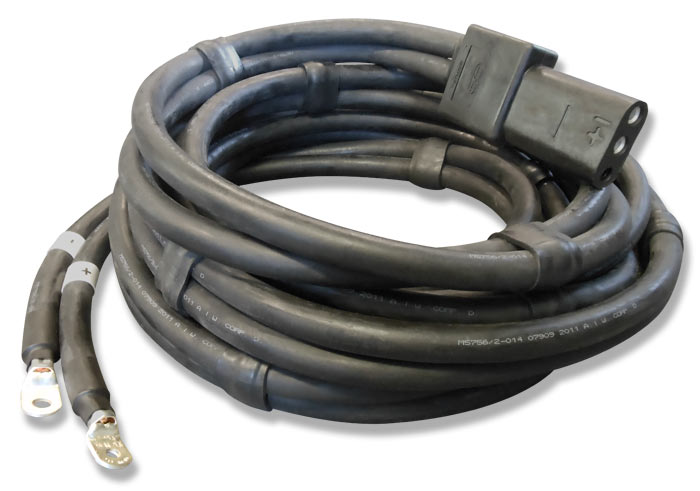

Our 28.5V DC Aircraft GPU Cable Assembly consists of (2) insulated 4/0 copper wires bound with a non-metallic band and an attached 3-pole molded aircraft plug/head.
Meets MIL-C-7974D, MIL-C-5756, MIL-STD-810F, MIL-C-81790 standards.
Be aware that a longer replacement cable than what was initially designed for your GPU may degrade the performance or require an adjustment to the voltage compensation parameters if your GPU is equipped with this feature. This performance impact is due to voltage line drop, which varies with the length of the cable.
Product ID by cable length:
- 2001406: 20-foot (6.1 m)
- Legacy AERO Product ID: 002116
- 2002482: 30-foot (9.14 m)
- Legacy AERO Product ID: JG550-01-009
- 2001441: 40-foot (12.2 m)
- Legacy AERO Product ID: 002166
- 2001500: 50-foot (15.24 m)
- Legacy AERO Product ID: 002241
- 2001442: 60-foot (18.29 m)
- Legacy AERO Product ID: 002167
- Hobart replacement 28V DC GPU cable part number 402025-002, 402025-003, 402025-004, 402025-006, 402025-007
- Tronair/Arvico 28 VDC Output Power Cable Assemblies, part numbers EC-1031-180, EC-1124-180, EC-1031-240, EC-1124-240, EC-1031-300, EC-1124-300, EC-1031-360, EC-1124-360, EC-1031-480, EC-1124-480, EC-1031-420, EC-1124-420, EC-1031-720, EC-1124-720, EC-1031-660, EC-1124-660, EC-1031-600, EC-1124-600, EC-1031-540, EC-1124-540
- Current Power 15/20/30/40/50/60-foot GPU cable assemblies with aircraft connectors, part numbers – Cable-28-15, Cable-28-20, Cable-28-30, Cable-28-40, Cable-28-50, Cable-28-60.
- Other part numbers MCPDC-20, 1627-0003-0020, MS90347-19, CTC90347-19, 1627-0003-0030, R65G3E-20, DC2-4020, JB2940-20m, MS90347-20, MCPDC-30, CTC90347-20, DC2-4030, R65G3E-30, JB2940-30, MS90347-21, 1627-0003-0040, MCPDC-40, CTC90347-21, R65G3E-40, DC2-4040, JB2940-40, MS90347-22, 1627-0003-0060, MCPDC-60, CTC90347-22, R65G3E-60, DC2-4060, JB2940-60, R65G3E-50, 1627-0003-0050, MCPDC-50, DC2-4050, JB2940-50, DD7-5672-15, DD7-5672-20, DD7-5672-30, DD7-5672-40, DD7-5672-50, DD7-5672-60, 401-0052-000, 401-0052-001, 401-0052-002, 401-0052-003, 401-0052-004, 401-0052-005, 401-0052-006, 401-0052-007, 401-0052-008, 401-0052-009.
