TLD TMX-150-9/12/15/16 Pushback & Tow Tractor

This Item Will Be Quoted.

AERO Specialties is proud to be an authorized distributor of TLD TMX-150 and 250 aircraft pushback and tow tractors.

The TLD TMX series aircraft tractors are designed to perform pushback and towing operations on narrow, medium and widebody aircraft. TLD TMX tractors have the ability to move aircraft up to the Boeing 787 and Airbus A350, depending on the specified weight configuration.

TMX tractors feature All Wheel Drive and All Wheel Steering capabilities to confidently move large aircraft in all weather conditions.

The TMX-150 and 250 boast turbocharged 4-cylinder diesel engines that are Tier and CARB compliant. This equates to regulatory-friendly power generation.

TMX tractors freature a compact and ergonomic design, constructed and tested to be safe and comfortable, yet rugged enough to stand up to the most demanding conditions. Operator visibility is unparalleled.

The TMX-150 All Wheel Drive and All Wheel Steer aircraft tow tractor is designed to perform pushback and towing operations on narrow and medium body aircraft in all weather conditions. Its ergonomic design provides agility and visibility. TLD’s high standards of build and component quality make the TMX-150 a durable and reliable tractor.

The TMX-150 is available in 3 weight configurations:

  • TMX-150-9: 15,270 lbs DBP (18,280 lbs GVW)
  • TMX-150-12: 20,880 lbs DBP (25,770 lbs GVW)
  • TMX-150-15: 26,940 lbs DBP (33,260 lbs GVW)
  • TMX-150-16: 27,600 lbs DBP (35,000 lbs GVW)

Capable of handling a wide range of aircraft, including:

  • A310
  • A300
  • A318
  • MD80
  • DC9
  • B767
  • B757
  • B737
  • B727
  • B717
  • F100
  • Saab 2000
  • Fokker 70/100
  • ATR 42/72

  • Engine: 4 cylinders turbo diesel engine.
  • Transmission: CLARK T12000 powershift transmission with torque converter, 4 forward and 3 reverse
  • Maximum Speed (empty): Forward, 25 kph (15.6 mph); Reverse, 20 kph (12.5 mph)
  • Front axle: DANA SPICER steering and driving axle with leaf spring suspension
  • Rear axle: DANA SPICER steering and driving axle
  • Brake (Service): On 4 wheels, hydraulically powered immersed wet disc brake system, dual circuit
  • Brake (Parking): Immersed wet disc brake on 2 front wheels, mechanically actuated
  • Steering: Hydraulically-powered steering, 4 wheels

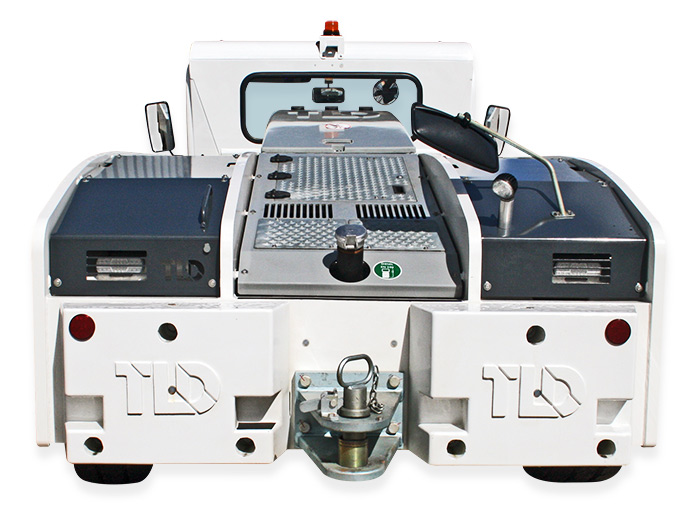

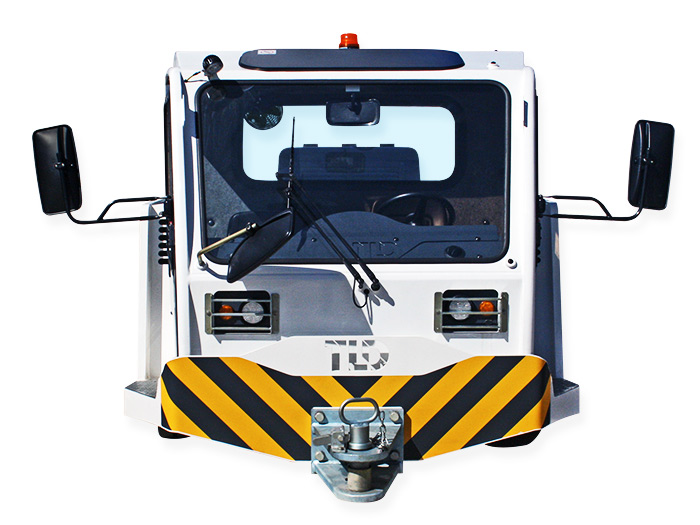

  • Tow hitch: Front and rear hitch with 70 mm (2.7") diameter tow pin. Manually controlled (1 level)
  • Tires: 8.25 R 15 or 315/70 R15 depending on versions
  • Fuel tank capacity: 83 liters (22 US Gal)
  • Hydraulic tank capacity: 80 liters (21 US Gal)
  • Without cab: suspended driver seat, standard seat for passenger
  • Paint: white
  • Hydraulic system: One hydraulic pump flanged on transmission PTO for power steering and braking.
24VDC Electrical System equipped with the following items:
  • 2 x 12V 95Ah Battery
  • 55 A alternator
  • Front head lights
  • Rear lights
  • Stop lights
  • Turn signal lights
  • Flashing beacon
  • Back up alarm of light
  • Hazard lights

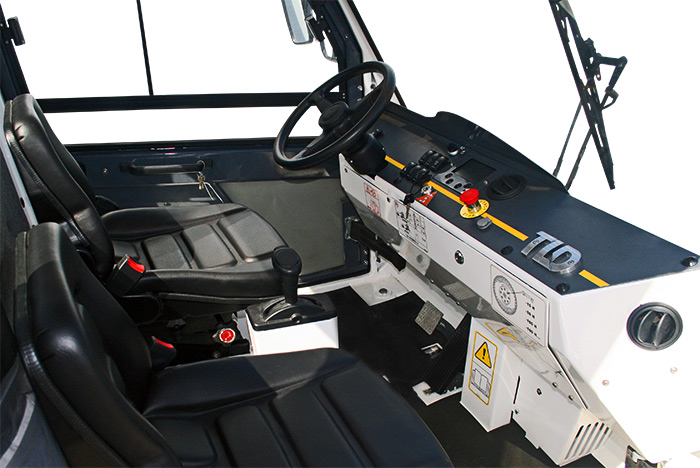

  • Driving station equipped with the following features:
    • Electrical horn
    • Ignition switch
    • Gauges:
      • Hourmeter
      • Transmission oil temperature
      • Fuel level
    • Indicator lights:
      • Brake oil level
      • Coolant level
      • Battery charge
      • Engine oil pressure
      • Engine water temperature
      • Preheating
      • Turn signal lights
      • Head lights
      • Parking brake
  • All TLD TMX series aircraft tractors are covered by an extensive 30-month or 2000/3000 hour warranty. TLD offers 24/7 tech support and on-site service. In addition, AERO Specialties offers distributor warranty support.

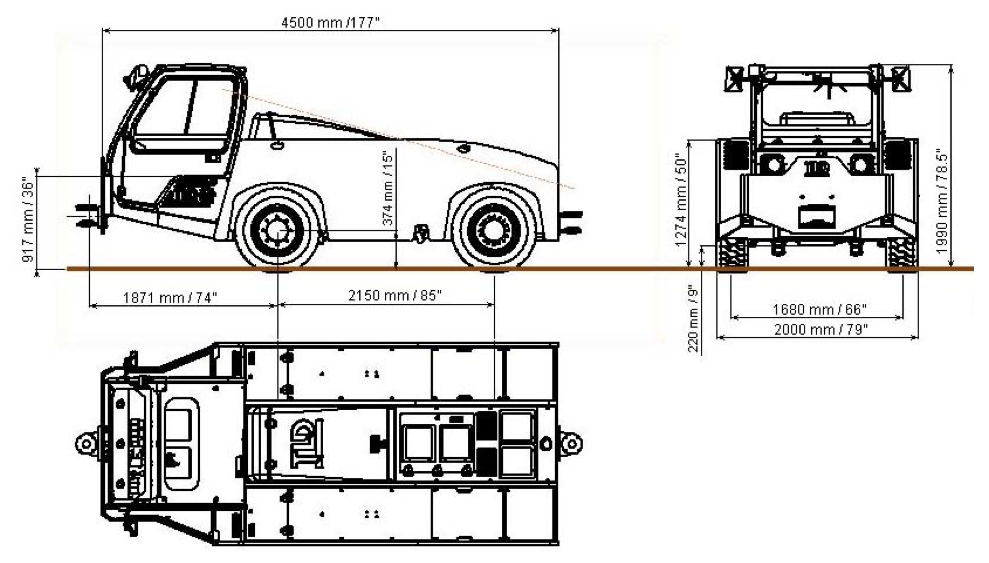

    • Front track: 1,680 mm (66”)
    • Rear track: 1,680 mm (66”)
    • Ground clearance: 220mm (8.66”)
    • Turning radius (4 Wheels steering): 650 mm (65”) Inside; 4,300 mm (169”) Outside

    TYPE

    FRONT WEIGHT

    REAR WEIGHT

    TOTAL WEIGHT

    TMX-150-9

    TMX-150-12

    TMX-150-15

    TMX-150-16

    4,760 kg (10,470 lbs)

    6,470 kg (14,230 lbs)

    8,160 kg (17,950 lbs)

    7,900 kg (17,400 lbs)

    3,540 kg (7,790 lbs)

    5,230 kg (11,500 lbs)

    6,940 kg (15,270 lbs)

    8,000 kg (17,600 lbs)

    8,300 kg (18,260 lbs)

    11,700 kg (25,740 lbs)

    15,100 kg (33,220 lbs)

    15,900 kg (35,000 lbs)

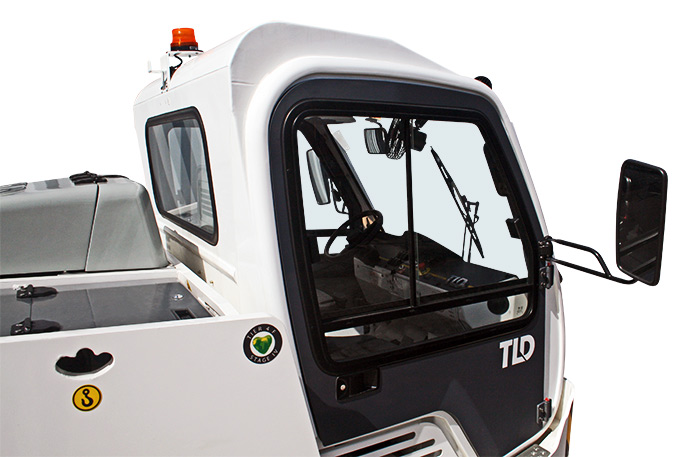

    • Cab with 2 hinging doors and heater
    • Suspending seat for passenger
    • Special hitches (3 level hitches, etc.)
    • Rotating warning beacon
    • Work light
    • Emergency DC pump
    • Mirror above the hitch
    • Spare wheels
    • Fire extinguisher
    • Special paint
    • De-icing windscreen
