34B Universal Towbar Assembly, 14,000 lbs. Capacity

SKU 2004124 Categories ,
Legacy AERO Product ID: 34B

$739.86 USD

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

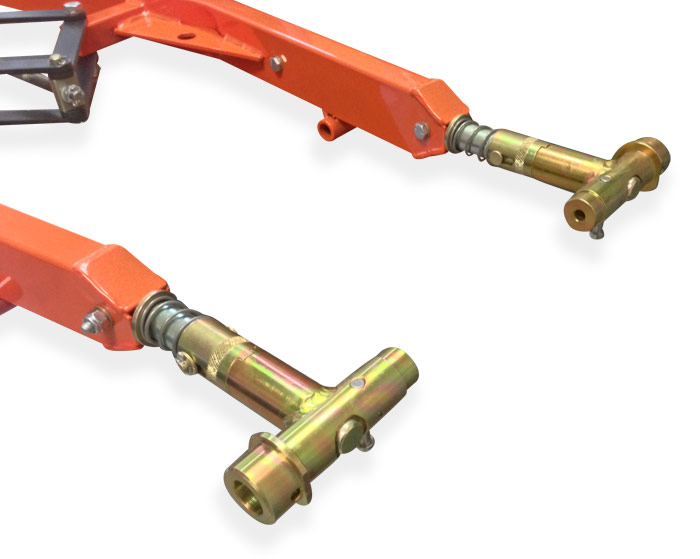

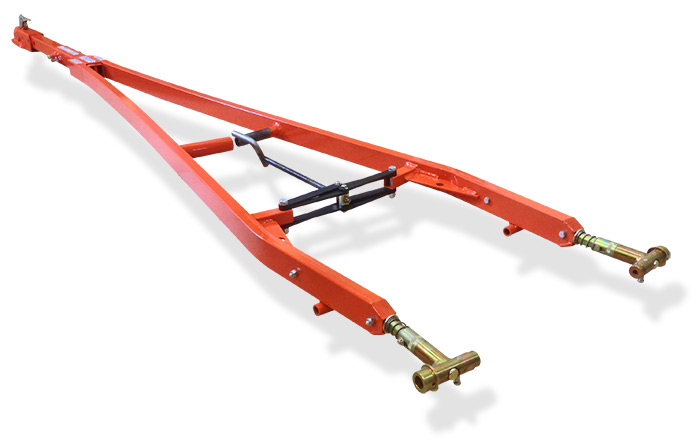

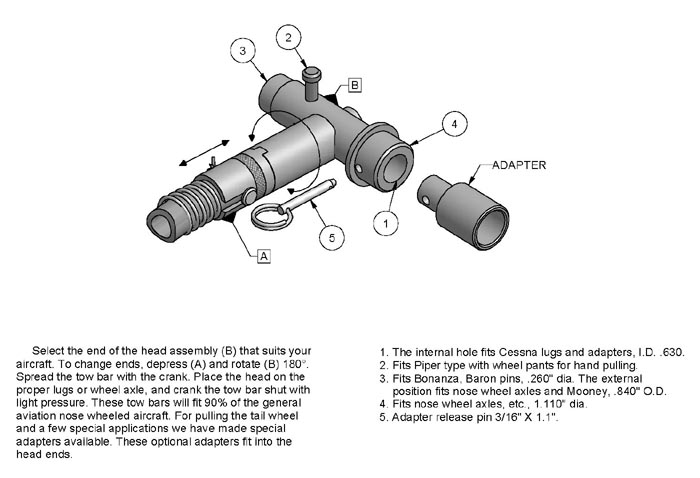

The 34B aircraft towbar features a universal head assembly that has the capability of fitting onto most aircraft from the Cessna 150 up through King Airs with a maximum weight of 14,000 lbs.

Adapter sets are available for this towbar, allowing towing of:

  • Aeronca L-3 Jet
  • Agusta 109
  • Beechcraft Duchess
  • Bell 430
  • Cessna
  • Cirrus
  • DGA Staggerwing
  • Diamond DA-20, DA-40, DA-42
  • Lancair IV
  • Maule
  • North American T-28 Trojan, T-6 Texan
  • Pilatus PC-6
  • Pilatus PC-12, U-28A
  • Piper PA-22/28, PA-46, Malibu, Mirage
  • Rockwell Commander 114
  • Scott
  • Sikorsky S-76
  • Socata TBM, Trinidad, Tobago

Shipping Dimensions: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)

Weight: 35 lbs. (16kg)

This towbar is available with a ring hitch (model 34R).

Adapters available for the following aircraft:

  • 1.375 O.D. adapter set
    • AERO Product ID: T-1375
  • Aero L-39 Albatross Jet (0.730 O.D.)
    • AERO Product ID: T-730
  • Agusta 109 (0.625 O.D.)
    • AERO Product ID: T-625
  • Beechcraft Duchess (0.750 O.D.)
    • AERO Product ID: T-DEX
  • Beechcraft Model 17 Staggerwing Tail Wheel (1.188 I.D.)
    • AERO Product ID: TWA-11
  • Bell 430 (0.515 O.D.)
    • AERO Product ID: T-515
  • Cessna Wheel Pants Extender (0.0625 O.D.)
    • AERO Product ID: T-N182
  • Cirrus (0.349 O.D.)
    • AERO Product ID: T-349
  • Dassault Mirage (0.820 O.D.)
    • AERO Product ID: T-820
  • Diamond DA-20 (0.260 O.D.)
    • AERO Product ID: T-260
  • Diamond DA-40 (1.500 O.D.)
    • AERO Product ID: T-1500
  • Diamond DA-42 (0.700 O.D.)
    • AERO Product ID: T-700
  • Head Extender (0.840 O.D.)
    • AERO Product ID: T-840
  • Howard DGA Tail Wheel (1.188 I.D.)
    • AERO Product ID: TWA-11
  • Lancair IV (0.730 O.D.)
    • AERO Product ID: T-730
  • Maule Tail Wheel
    • AERO Product ID: T-MAULE
  • North American T-28 Trojan (0.730 O.D.)
    • AERO Product ID: T-730
  • North American T-6 Trojan (0.730 O.D.)
    • AERO Product ID: T-730
  • Pilatus PC12 (0.451 O.D.)
    • AERO Product ID: T-451
  • Piper Lance (0.795 O.D.)
    • AERO Product ID: T-795
  • Piper Malibu (0.820 O.D.)
    • AERO Product ID: T-820
  • Piper PA-22 (1.00 O.D.)
    • AERO Product ID: T-P228
  • Piper PA-28 (1.00 O.D.)
    • AERO Product ID: T-P228
  • Piper PA-46 Malibu (0.795 O.D.)
    • AERO Product ID: T-795
  • Rockwell Commander 114 (0.750 O.D.)
    • AERO Product ID: T-750
  • Scott Tail Wheel (0.93 I.D.)
    • AERO Product ID: TWA-10
  • Sikorsky S-76 (0.750 O.D.)
    • AERO Product ID: T-750
  • Socata (0.375 O.D.)
    • AERO Product ID: T-375
  • Socata TBM (0.451 O.D.)
    • AERO Product ID: T-451
  • Socata Tobago (0.375 O.D.)
    • AERO Product ID: T-375
  • Socata Trinidad (0.375 O.D.)
    • AERO Product ID: T-375

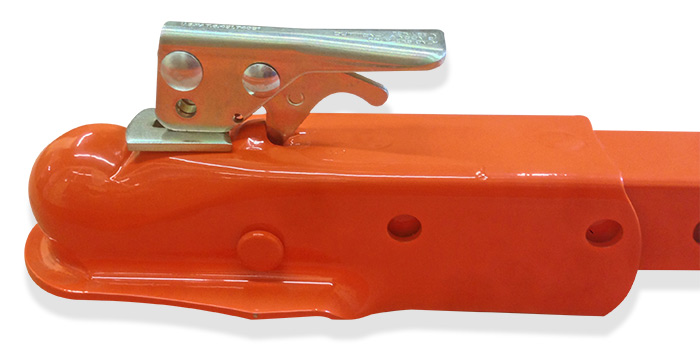

  • 2-inch ball hitch tongue
  • Maximum aircraft weight: 14,000 lbs (6,356 kg)
  • Maximum opening 12 1/2" (31.75 cm)
  • Length: 92" (233 cm) closed, 104" (264 cm) extended
  • Color: orange powder coating

Additional information

Weight 43 lbs
Dimensions 94 × 12 × 3 in
