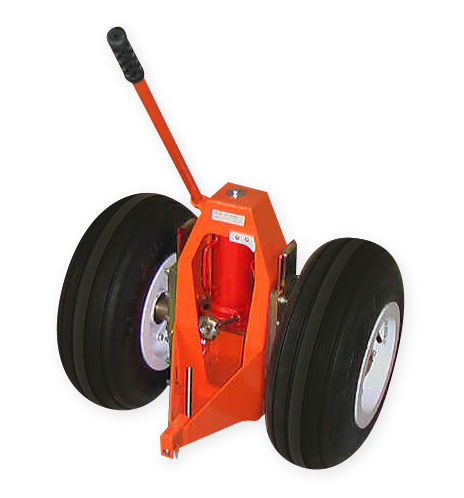

Bell AH-1, UH-1, 204-205, 212, 222, 230 & 412 Hydraulic Ground Handling Wheels (Military Version)

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Helicopter ground handling wheels are used to lift a helicopter off the ground for easy movement in the hangar or on the ramp. They are attached to the skids, allowing for the user to easily balance the aircraft during maneuvering without the tail hitting the ground.

Our ground handling wheels provide a portable and dependable solution for the maneuvering of your helicopter. This model allows for movement of military version Bell UH-1, AH-1, 204-205, 212, 222, 230 and 412 model helicopters by means of heavy-duty tires and an integrated hydraulic hand pump system. Using the hydraulic pump, the helicopter may easily be lifted off the ground. The weight of the helicopter is supported by the hydraulic system.

The dual-wheel design reduces twisting by providing equal pressure on both sides of the tube. Therefore, the stress and strain associated with single wheel systems is greatly reduced.

Note: Unit is sold individually, not as a pair. Two (2) units are required for most applications.

NSN: 1730-015-492-387, 4920-015-492-387

Unit dimensions (each side):

19" x 20" x 21" (48.3 x 50.8 x 53.3 cm)

Weight: 95 lbs. (43.1 kg.)

Shipping dimensions:

18" x 22" x 24" (45.7 x 55.9 x 61 cm) (2 boxes of this size are shipped)

Weight: 191 lbs. (86.6 kg.)

  • Operation: hydraulic 8-ton jack
  • Approximate skid lift: 4"
  • Attach points: 2 each eye bolts fit both 16.41" & 17.875" centers
  • Skid tube diameter: 4.00"
  • Tire size: 18 x 5.5 @ 105 psi
  • Color: orange powder coat
  • Must be removed prior to flight
