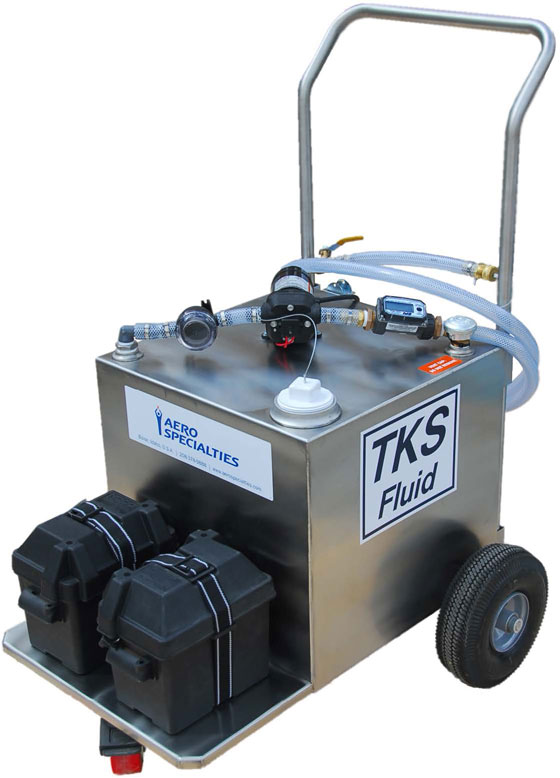

TKS30E Fluid Service Cart

The TKS30E Fluid Service Cart is a self-contained mobile cart designed for delivering de-icing fluid to commercial,
corporate, and business aircraft. The TKS30E tank is made of 12-gauge stainless steel. The pumping system
consists of a 12-volt electric pump. The TKS30E fluid cart includes all required hoses and fittings to service any
applicable aircraft. It is designed for towing by hand only.

Major Components
Chassis
The chassis is constructed of stainless steel welded directly to the tank. The TKS30E uses two solid wheels on
a rear axle with a swivel caster at the front of the cart to improve portability required for the extra weight of
the battery and charger.

Tank Assemblies
The 30-gal fluid tank is constructed of 12-gauge stainless steel. All tanks are fitted with 1) a threaded fitting
for either a _” fill adapter or level gauge (optional items) 2) a stainless steel-screened dome vent 3) a 3-in.
PVC threaded plug for the fill port and 4) a threaded tank bottom drain.
NOTE: Check with your local regulatory agencies regarding standards and requirements for storing and
processing TKS fluid.

Pumping System
The TKS30E features a 12-volt, 4.5 gallons-per-minute electric pump system. An on-board 12-volt battery and
charger are located on the front stainless steel shelves of the tank. The fill hose features a plug attached to a
lanyard to prevent leaking when not in use. An in-line digital flow meter is included for monitoring the volume
of fluid pumped.

Capacity
TKS fluid tank size: 30 gal (113.70 L)

Pumping System
FLOJET 12-volt DC electric pump: Model 4325-143A
• 3.75 in. High x 6.3 in. Wide x 9.9 in. Long, 6 lbs
(95mm x 160mm x 252mm, 2.8 kg)
• 4.5 GPM (17 L/min) @ 40 psi
• Motor: permanent magnet, ball bearings @ front & rear endbell
• Self-priming up to 6 ft suction lift
• Dry-running without damage
• 4-chamber positive displacement diaphragm
• Corrosion-resistant construction, thermally protected
• Strainer included
• Replacement parts available

12-volt battery: GelStar M24SLDG
• Nom Voltage(V): 12
• Nom Capacity (AH) 5hr rate: 66 AH
• Nom Capacity (AH) 20hr rate: 73.6 AH
• Weight: 53.6 (24.3kg)
• Length (mm): 10.25 (260mm)
• Width (mm): 6.75 (171mm)
• Height (mm): 9.88 (251mm)
• Reserve Capacity: 132

12-volt charger: Dayton 6Z763C
• Input Amps @ 120 VAC 60HZ: 2.2/9.5
• Output Amps @ 6VDC: 10 @ 12VDC: Set on 10/2 Amps for battery maintenance and charging
• Engine start Amps @ 7.2 VDC: 55

Hose & Fittings
Fill hose: 3/4-in. I.D. reinforced PVC hose, 10 ft
Fill coupler: 3/4-in. AERO Specialties anodized aluminum fill coupler, with plug
Flow Meter (optional): GPI 01N31GM Digital In-Line meter, 3-30 GPM
Chassis
Stainless steel
Tires/Wheels
• 4-in. steel wheels and 3.5/4.1-in solid tires
• 5/8-in. wheel bearings
• Solid rubber swivel caster
