AERO JetGo 600Mti-RJ 28V DC Diesel Hybrid Ground Power Unit (Base Unit)

SKU JetGo600Mti-RJ Category Tag

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

The JetGo 600Mti-RJ series is now discontinued. It has been replaced by the JetGo 900 28V Deisel-Hybrid Ground Power Unit, which offers many improvements over its predecessors.

Click here to view the new AERO JetGo 900 28V Diesel-Hybrid Ground Power Unit

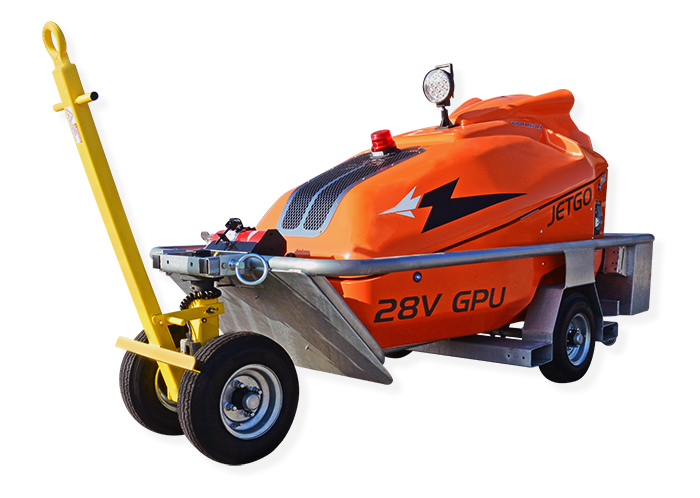

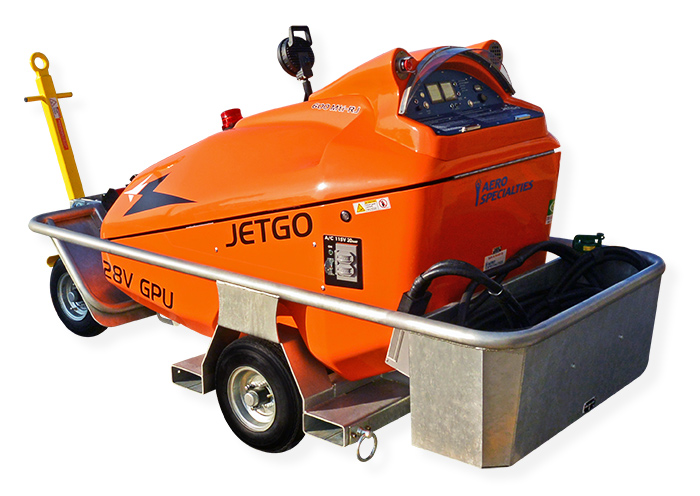

The JetGo 600Mti-RJ is the improved version of the popular JetGo precision hybrid GPU. The 600Mti-RJ is an extremely compact, full-powered ground power unit offering impressive continuous and peak power in addition to sophisticated active aircraft protection systems. The unit’s light weight and compact size allow for easy mobility, whether it be across the ramp or around the world. Applications include avionics support, electrical air conditioning, aircraft maintenance, and engine starts. This unit is suitable for a wide range of users, from a small flight department to the busiest FBO. With over 500 units operating worldwide, this unit is the perfect economical choice for your operation. This GPU will operate 24/7, aircraft to aircraft with zero down time between turbine starts.

The 600Mti-RJ is the most recognizable, affordable & economical full-powered GPU available today.

Note: This is the price for the base unit. To request a quote on a unit with additional options, please visit this page.

  • Fine, variable voltage adjustment means this unit can handle even the most sensitive aircraft
  • Extremely low voltage ripple provides ultimate security for the latest avionics
  • Hybrid battery monitoring on the instrument panel
  • IP65 & 67 MIL SPEC switches, controls & gauges
  • Quiet industrial grade Kubota diesel engines with worldwide support
  • 1700 CA batteries combine with 600 amp alternator to provide clean “cool spool” turbine starts
  • Active overvoltage protection with auto aircraft disconnect
  • New soft-start/low amperage selection for helicopter operations
  • Rapid recharging of GPU’s hybrid batteries allows multiple engine starts 24/7
  • Failsafe 24V DC battery pack provides continuous power if engine should stop, preventing turbine “hot starts” and damage to aircraft engine
  • Fully weather proof illuminated panel incorporates accurate digital gauges
  • Compact and light, easy tow size allows wing and fuselage clearance
  • Low profile design protects aircraft from potential collision damage
  • LED clearance lights illuminate when GPU in operation
  • Fiberglass enclosure is rust and dent-proof, with marine grade UV resistant gelcoat
  • Marine grade stainless steel external hardware
  • Towable, yet easy to push by hand into service position
  • Torsion axle suspended trailer for smooth towing
  • Block heater and fuel separator now standard equipment


  • JetGo: 12 month manufacturer’s limited warranty
  • Kubota: 2 years/2,000 hours engine limited warranty, 3 year/3,000 hour engine component limited warranty
  • NorthStar Battery: Limited 24 months manufacturer’s warranty

Physical dimensions: L: 121” x W: 46” x H: 56.5” (L: 3070mm x W: 1168mm x H: 1435mm)

Weight: 1,933 lbs (877 kg)

Engine Specs:

  • Kubota diesel engines with E-TVCS combustion systems provide high performance at the lowest fuel consumption available
  • 4 cyl, 1.5 liter turbo charged, 27.2kw (36.5hp) continuous @ 3000 rpm
  • Performance: 600 amp continuous 28V DC output with 2300 amp starting capability (includes generator and battery performance)
Fuel Consumption:
  • 0.8 gallons per hour at 50% load
Fuel Tank Capacity / Fuel Type / Run time:
  • 15 US gallon capacity, corrosion resistant materials
  • 10 hrs of constant run time at average load Fuel Grades: diesel, low sulfur diesel
Hybrid Battery System:
  • NorthStar AGM maintenance free batteries (2 each)
  • Capacity: 1700 CA
Emission Compliance:
  • Environmentally friendly: EPA Tier-4i and EU Stage IIIB
Engine Displays & Instruments:
  • Start/stop button
  • Alarm indicator, notes faults in any protection system
  • Low oil and low fuel protection with auto shutdown
  • Glow plug preheat system automatically engages in cold weather
  • Over-speed/under-speed protection with auto shutdown
  • Fuel quantity gauge (non-RJ models only)
  • Hobbs (hour) meter
  • Low fuel shutoff & warning
GPU Displays & Instruments:
  • Digital volt and amp gauges
  • Active overvolt system with annunciator disconnects power to aircraft
  • Contactor on/off switch with bright LED indicator
  • Static battery check
  • Fine voltage adjustment with approximate range 27.5V - 29.0V
  • Low/limited amperage selection with warning annunciator
Construction:
  • Fiberglass enclosure, UV resistant gelcoat
  • DC cable: MS3506 mil-spec 20 feet (6m) quad cable with standard NATO plug
  • Towbar friction activated brake system
  • Torsion suspended rear axle
  • Galvanized tubular steel heavy-duty towing chassis
  • External cable tray, fuel tank, fuel fill port, direct refuel gauge, and front splash guard
  • Marine grade stainless steel exterior hardware
  • Protectoseal safety fill cap with flash arrester
  • Extra heavy-duty wheels and road-rated tires
