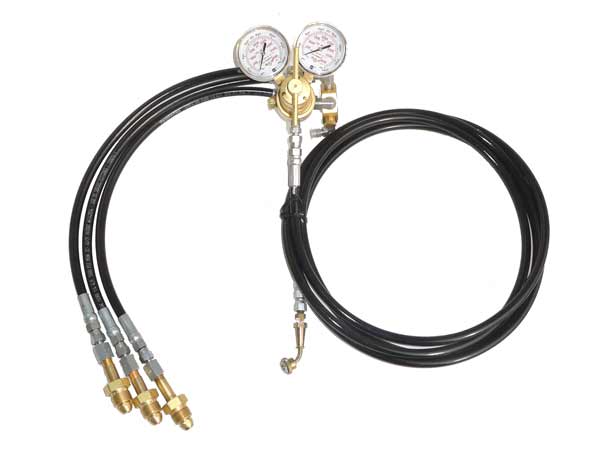

3-Bottle Nitrogen High Pressure Regulator System

SKU 1347071 Categories ,
Legacy AERO Product ID: 001770 | 2026386

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

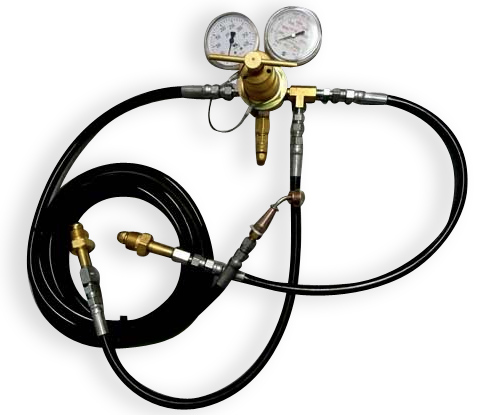

Our low or high nitrogen regulator assemblies come in 1-bottle, 2-bottle, 3-bottle, and 4-bottle configurations.

The purpose of having a high-pressure regulator is to service high pressure nitrogen systems. For example, aircraft struts, and accumulators which are used as a backup system for hydraulic failure.

Note: For customers outside North America, AERO Specialties supplies a standard CGA bottle connector that will connect to a North American gas cylinder. Customers outside North America must provide their local gas cylinder connection information to ensure proper fit.

Shipping Dimensions: 24" x 18" x 12" (61cm x 46cm x 30cm)

Weight: 10 lbs (4.5 kg)

Weight: 10 lbs (4.5 kg)

  • 15' (457.2 cm) delivery hose, inflating valve adapter, manual, and calibration certificates
  • Includes inlet and outlet gauges
  • Delivery range: 200-3000 psi
  • This 3 bottle nitrogen regulator mounts to panel and has 3 input hoses with CGA580 connectors. Please SPECIFY if hose to bottle fitting requirement (bottle connection point) is different than CGA580.  This regulator will come configured with the standard U.S.A. CGA connection, unless notified of different bottle connection type.
