AERO Portable Narrow Body FlyAway Towbar

SKU: 2001063

Category: Commercial Towbars, Multi-Head Towbars, Towbars

Legacy AERO Product ID: 001700

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Add to Quote

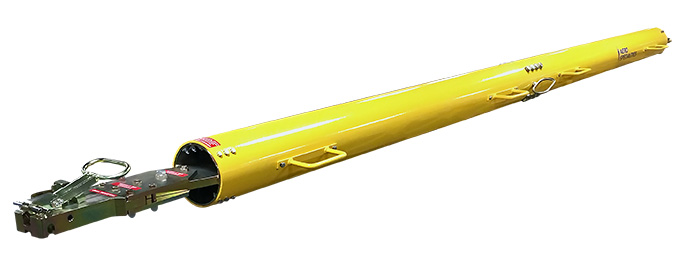

Split aluminum bar (two pieces) and head without wheels.
Heads available for Boeing B727, B737 and B757 or Airbus A300, A310, A318, A319, A320 and A321 aircraft
Dimensions in Fly-Away Mode: 9′ L x 2′ W x 1′ H (2.74m x 60.96cm x 30.48cm)
Assembled length is 15′ (4.57m)
Towbar halves are secured by a removable pin secured by a chain
Overall shipped length without head: 195″ (495.3 cm)

Note:

Note: Crating is recommended for protection of towbars during transit. AERO Specialties accepts no liability for damage during transit of un-crated towbars.

Compares to Tronair Portable towbar, part number 01-1323-0000.

NSN: 1730-01-594-8699, 1730-01-628-7947 (depending on configuration)

Overall length without head: 195″ (4.95m)

Dimensions in Fly-Away mode (split for transport): 9′ L x 2′ W x 1′ H (2.74m x 60.96cm x 30.48cm)

Unit weight: 300 lbs. (136.08 kg.)

Crated dimensions: 218″ L x 25.5″ W x 26″ H (5.54m x 64.77 cm x 66.04 cm)

Weight: 655 lbs. (297.1 kg.)

Heads available for Boeing 727, 737 & 757 as well as Airbus A300, A310 & A320 aircraft
Alternative tube lengths available upon request
Custom paint colors available
