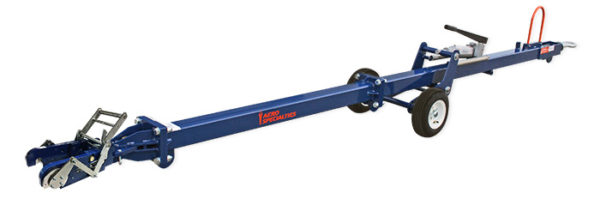

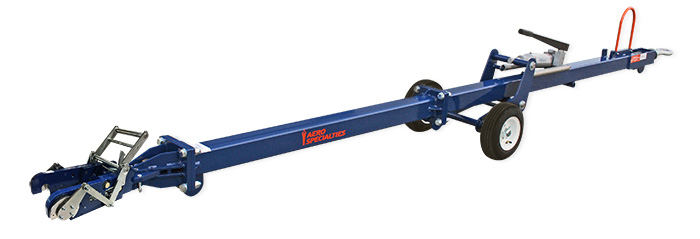

AERO Rx-P3 Orion Towbar (Lockheed P-3 Orion, CP-140 Aurora)

SKU 2008303 Categories , Brand:

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Our steel Rx-P3 Orion towbar (220,000 lbs. [99,790 kg.] capacity) is designed to perform push and pull operations on the Lockheed P-3 Orion and CP-140 Aurora aircraft family.

Compares to AMP P3 Orion Towbar, part number FS60-M-P3-236 and Manson P3 Orion Towbar.

NSN: 1730-01-586-0499

Physical: 198” L x 24” W x 20” H (503cm x 61cm x 51cm), 432 lbs. (196 kg.)

Shipping: 120” L x 28” W x 28” H (302cm x 71cm x 71cm), 600 lbs. (272 kg.)

  • Heavy-duty steel
  • 3.125" (7.94 cm) I.D. hitch ring (lunette)
  • Linear & radial shear protection
  • Hydraulic lift kit
  • Road speed rated wheels, hubs and bearings
  • 15' [4.57 m] long towbar
  • Ships mostly assembled. Towbar head must installed on site with (4) 3/4" bolts, and tubes must be attached with (4) 3/4" bolts.
