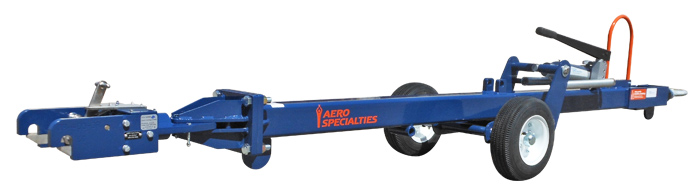

AERO RX-D8-400 Towbar (Bombardier Dash 8-400, Q400)

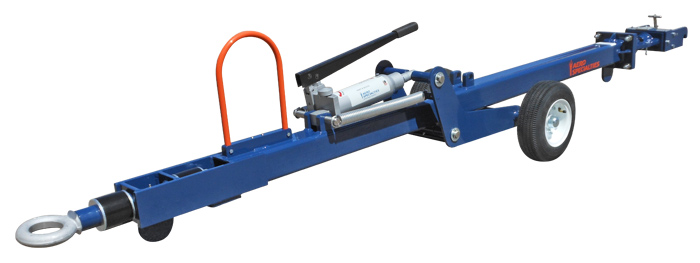

AERO RX-D8-400 Towbar (Bombardier Dash 8-400, Q400) - Image 2

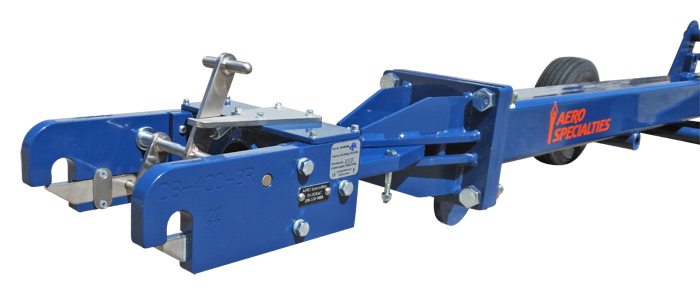

AERO RX-D8-400 Towbar (Bombardier Dash 8-400, Q400) - Image 3

AERO RX-D8-400 Towbar (Bombardier Dash 8-400, Q400)

SKU: 2001052
Category: ,
Legacy AERO Product ID: 001689
This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.



Add to Quote

Our steel RX-D8-400 towbar (220,000 lbs. [99,790 kg.] capacity) is designed to perform push and pull operations on Bombardier (DeHavilland) Dash 8-400, Q400 regional airline aircraft.

Compares to Tronair multi-head towbar and DASH 8-400 towbar head, part numbers 01-1290-0100, 01-0400-0000 and 01-1201-0010.

PLEASE NOTE, customers with Q400 towbars (001689) and/or heads (001497): The SP2 Shear Pin (003229) has been replaced for use on Q400 heads with the SP3 Shear Pin (004669).  If you have an AERO Specialties Q400 (DHC-8-400 series) towbar or head and need a replacement shear pin, you require SP3 Shear Pin, Part Number 004669. Click here to see our service bulletin regarding this change.

Dimensions:

  • Physical: 144″ L x 24″ W x 20″ H (365.76cm x 60.96cm x 50.8cm)
  • Shipping: 120″ L x 28″ W x 28″ H (302.3cm x 71.1cm x 71.1cm)

Weight:

  • Physical: 308 lbs (140 kg)
  • Crated: 534 lbs (242.21kg)

  • Heavy-duty steel
  • 3.125″ (7.94 cm) I.D. hitch ring (lunette)
  • Linear & radial shear protection
  • Hydraulic lift kit
  • Road speed rated wheels, hubs and bearings
  • 10′ [3.05 m] towbar (or 15′ [4.57 m] bar with additional 5′ extension)
  • Ships mostly assembled. Towbar head must installed on site with (4) 3/4″ bolts.
