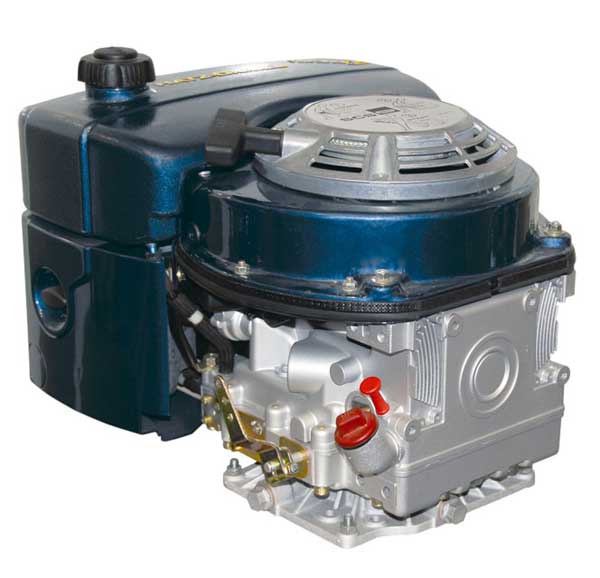

Hatz 1B20X-9902 Diesel Engine
Hatz 1B20X-9902 Diesel Engine - Image 2
Hatz 1B20X-9902 Diesel Engine - Image 3
Hatz 1B20X-9902 Diesel Engine - Image 4

Hatz 1B20X-9902 Diesel Engine

SKU 2001160 Categories , , , , , , , , , , Tags , , ,
Legacy AERO Product ID: 001820

$3,444.94 USD

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Hatz 1B20X-9902 Diesel Engine with Electric Start

This small, lightweight diesel engine is used in our LC180-RJ2, LC270-RJ3, and LC270-Insert lavatory carts and WC180-RJ2, WC270-RJ3, and WC270-Insert potable water service carts.

  • Air-cooled single-cylinder 4-stroke Diesel engine
  • Vertical cylinder
  • Light alloy diecast cylinder crankcase
  • Light alloy cylinder head
  • Forged crankshaft
  • Light alloy piston for low free forces of gravity
  • Lubrication by pressurised circulation of oil, fine screen filtering in main flow
  • Valve control by rocker, push-rods and tappets

Dimensions: 11" L x 14" W x 16" H (28 x 37 x 41 cm)

Weight: 62 lbs (28 kg)

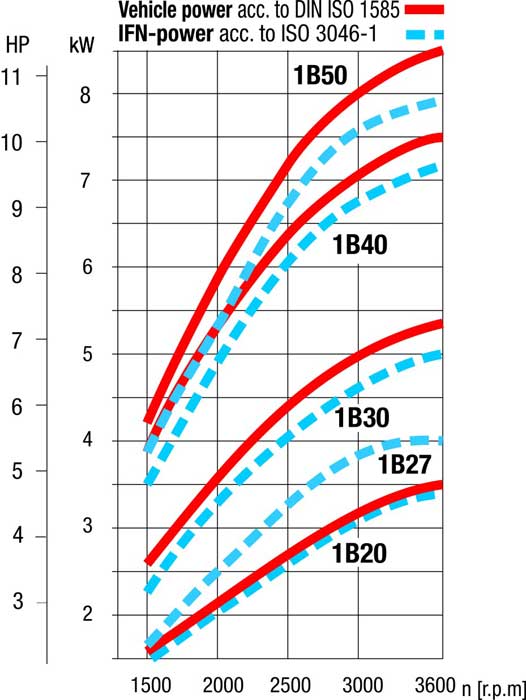

  • 4.6 HP
  • Electric and pull start
  • 3/4" x 2-7/16" (7.62 cm x 6.19 cm) shaft
  • Direct injection
  • Compression from 1:21 to 1:22. Good cold start performance.
  • Fuel orientated mixture preparation. Result: excellent exhaust quality. EPA /CARB.
  • Speed regulation by spring-loaded governor. Proportionality < 5% at 3000 / 3600 r.p.m.
  • The control cover houses the governor, the entire valve drive, the injector pump drive and the automatic decompression system and oil pump.
  • Oil drain on both (narrow) sides of the engine. This gives free access of at least one drain position for almost all installations.
  • Dry air filter with paper cartridge and integrated pre-cleaner.
  • Cooling fan and AC generator incorporated in the flywheel (not sensitive to dust).
  • 4 seperate engine feet permit mounting on uneven foundations. Differences of level of up to 1 mm can be corrected.
  • Exhaust outlet flexible as regards both position and direction of exit.
