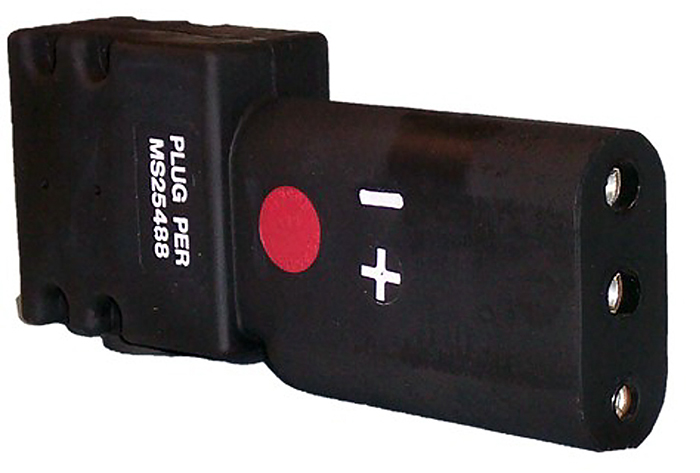

Replacement 28V DC 4/0 GPU Connector Plug, 3-Pole Female

3-Pole 4/0 28V DC Female Aircraft Connector Plug for aircraft ground power units (GPUs).

Replace your worn GPU aircraft connector plug without buying an entire cable assembly. This 28V DC connector is designed to replace non-functional molded-head style GPU cable plugs.

Intended for use with 28V DC aircraft applications, this female plug is the connection point where a ground power unit cable attaches to the aircraft. Constructed of a proprietary synthetic elastomer, this DC aircraft GPU plug has excellent moisture, chemical and abrasion resistance qualities. The power contacts are made of machined copper, silver-plated to reduce contact resistance. Contact lugs may be either crimped or soldered to cables. This cable head is manufactured to MS25488 specifications and is on the QPL (Qualified Product List) for Mil-C-7974D. Portable receptacles are particularly useful where a portable connection is required or for extending existing cables.

This Attachable GPU Cable Head is compatible with Hobart 28V DC GPU Cable part numbers 402025-002, 402025-003, 402025-004, 402025-006, 402025-007. This aircraft GPU connector will function on Tronair/Arvico EC-1124 series and J & B JB2940-20, JB2940-30, JB2940-40, JB2940-50, JB2940-60 4/0 28 VDC ground power output cable assemblies. Contact us regarding replacement aircraft connectors for Tronair/Arvico EC-1031 series and J & B JB2920-20, JB2920-30, JB2920-40, JB2920-50, JB2920-60 2/0 28 VDC ground power output cable assemblies.

Compares to Tronair/Arvico 28.5V DC Power Cable Repair Kits (GPU Connecter), part numbers K-2216, K-2217, MS25488-27, R65G3E, CP1765-3, 28XP-0.

Note: This cable head replaces our old part number 2001478 (legacy part number 002217).
