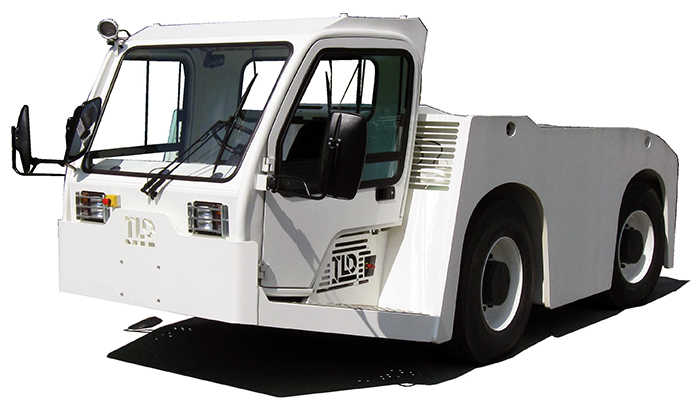

The TMX-350 aircraft towing tractor, with a maximum draw bar pull up to 21 000 daN, is designed to perform push and pull operations from narrow to wide body aircraft up to 300 tons (perfect for upcoming aircraft as the Airbus A350 and Boeing B787 ). Its ergonomic design provides agility and visibility. TLD’s high standards of build and component quality make the TMX-350 a durable and reliable tractor.

The TMX-350 is available in two main configurations:

  • TMX-350-24
    • Gross Weight: 53,000 lbs. (24,000 kg.)
    • DBP: 43,030 lbs. (191 kN)
  • TMX-350-28
    • Gross Weight: 61,600 lbs. (28,000 kg.)
    • DBP: 47,200 lbs. (210 kN)

  • Engine: CUMMINS QSB4.5 120 kW
    • 4 cylinders turbo diesel engine
  • Transmission: Powershift transmission with torque converter
  • Maximum Speed: (empty)
    • Forward: 15 mph ( ~25 km/h)
    • Reverse: 3 mph ( ~ 5 km/h)
  • Front Axle: heavy duty steering and driving axle with leaf spring suspension
  • Rear Axle: heavy duty steering and driving axle
  • Brake (Service): On 4 wheels, hydraulically powered immersed wet disc brake system, dual circuit
  • Brake (Parking): Immersed wet disc brake on rear axle, spring applied hydraulically released
  • Steering: Hydraulically-powered steering : 4WD – 4WS
  • Tow hitch: Front and rear hitch with 70 mm (2.7") diameter tow pin. Manually controlled (1 level)
    • Mirror on rear hitch in standard
  • Tires: 310/80-R22.5
  • Fuel Tank Capacity: 150 l ( ~40 US Gal)
  • Hydraulic Tank Capacity: 45 l ( ~12 US Gal)
  • Cab: Suspended seats
  • Paint: White RAL 9016
  • Hydraulic System: One hydraulic pump flanged on transmission PTO for power steering and braking.
  • Electrical Equipment: 24VDC electrical system equipped with the following items:
    • 2 x 12 V 95 Ah battery
    • 70 A alternator
    • Front head lights
    • Rear LED lights
    • Stop LED lights
    • Turn signal LED lights
    • Rear LED working light
    • Flashing beacon
    • Back up alarm and light
    • Hazard lights
  • Driving Station:
    • Electrical horn
    • Ignition switch
    • Gauges:
      • Hourmeter
      • Transmission oil temperature
      • Fuel level
      • Indicator lights
      • Brake oil level
      • Coolant level
      • Batteries charge
      • Engine oil pressure
      • Engine water temperature
      • Preheating
      • Turn signal lights
      • Head lights
      • Parking brake

  • Front Track: 83" (2,130 mm)
  • Rear Track: 83" (2,130 mm)
  • Ground Clearance: 9" (235 mm)
  • Turning Radius (4 Wheel Steering):
    • 215" (5,460 mm) Wall-to-Wall
    • 195" (4,950 mm) Outside Tires
  • TMX-350-24:
    • Front Weight: 26,500 lbs. (12,000 kg.)
    • Rear Weight: 26,500 lbs. (12,000 kg.)
    • Total Weight: 53,000 lbs. (24,000 kg.)
  • TMX-350-28:
    • Front Weight: 30,800 lbs. (14,000 kg.)
    • Rear Weight: 30,800 lbs. (14,000 kg.)
    • Total Weight: 61,600 lbs. (28,000 kg.)

  • 3 steering modes: 2 wheels steering, 4 wheels steering, crab.
  • Special hitches (3 level hitches, etc.)
  • Rotating warning beacon
  • Front working light
  • Emergency DC pump
  • Mirror on front hitch
  • Spare wheels
  • Fire extinguisher
  • Special paint
  • De-icing windscreen
  • Air conditioning
  • Self jacking
  • Centralized automatic greasing
  • Heater
