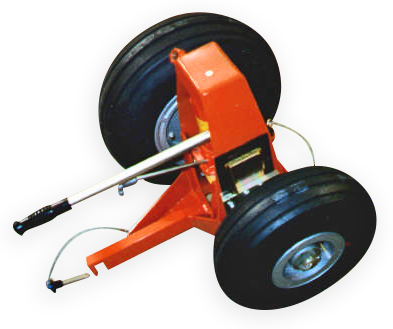

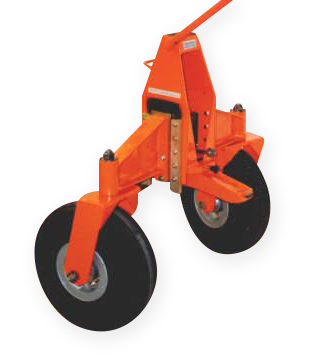

Bell 214ST Hydraulic Ground Handling Wheels

SKU 2001402 Category
Legacy AERO Product ID: 002111
Brand:

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Helicopter ground handling wheels are used to lift a helicopter off the ground for easy movement in the hangar or on the ramp. They are attached to the skids, allowing for the user to easily balance the aircraft during maneuvering without the tail hitting the ground. Our ground handling wheels provide a portable and dependable solution for the maneuvering of your helicopter.

This model of hydraulic ground handling wheels allows for movement of Bell 214ST model helicopters by means of heavy-duty tires and an integrated hydraulic hand pump system.

Using the hydraulic pump, the helicopter may easily be lifted off the ground. The weight of the helicopter is supported by the hydraulic system. The dual-wheel design reduces twisting by providing equal pressure on both sides of the tube. Therefore, the stress and strain associated with single wheel systems is greatly reduced. These wheels are high-gross to 20,000 lbs. Superior design allows the wheels to be jacked straight down. This is done with a simple & reliable 8-ton hydraulic bottle jack. Duality of purpose is achieved with the jack handle also being used as a tote handle to move the wheels.

Price is for both the left and right side assemblies and tote/jack handles.

Unit dimensions (each side):

19" x 20" x 21" (48.3 x 50.8 x 53.3 cm)

Weight: 95 lbs. (43.1 kg.)

Shipping dimensions:

18" x 22" x 24" (45.7 x 55.9 x 61 cm) (2 boxes of this size are shipped)

Weight: 191 lbs. (86.6 kg.)

  • Operation: hydraulic 8-ton jack
  • Approximate skid lift: 4"
  • Attach points: 2 each eye bolts fit both 16.25" & 18.00" centers
  • Skid tube diameter: 4.00"
  • Tire size: 18 x 5.5 @ 105 psi (outer) & 5.00x5-10 ply (inner)
  • Color: orange powder coat
  • Must be removed prior to flight
