Bell UH-1Y & AH-1Z Hydraulic Ground Handling Wheels

SKU 2020754 Category
Legacy AERO Product ID: 002106 | 2001397
Brands: ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

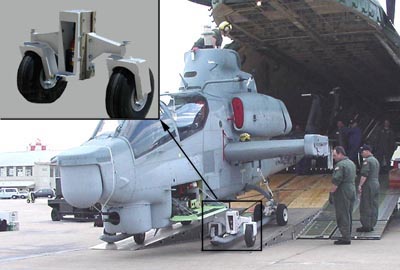

Helicopter ground handling wheels are used to lift a helicopter off the ground for easy movement in the hangar or on the ramp. They are attached to the skids, allowing for the user to easily balance the aircraft during maneuvering without the tail hitting the ground.

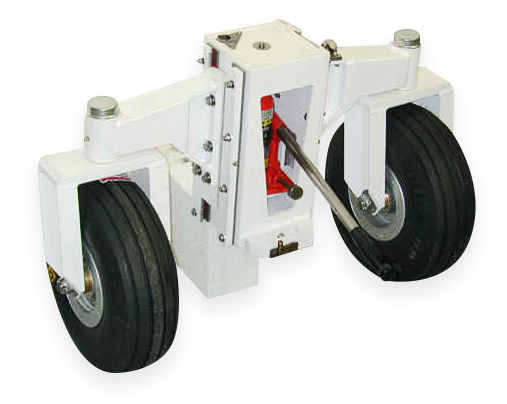

Our ground handling wheels provide a portable and dependable solution for the maneuvering of your helicopter. This model of hydraulic ground handling wheels allows for movement of Bell UH-1Y “Venom” and AH-1Z “Viper” model helicopters by means of heavy-duty tires and an integrated hydraulic hand pump system. Using the hydraulic pump, the helicopter may easily be lifted off the ground. The weight of the helicopter is supported by the hydraulic system.
This set is designed for the Bell UH-1Y & AH-1Z military helicopters, but may also be used as replacements for PN 209-0520-224-1 mechanical caster wheels used on AH-1 series helicopters. The dual-wheel design reduces twisting by providing equal pressure on both sides of the tube. Therefore, the stress and strain associated with single wheel systems is greatly reduced.
Price is for both the left and right side assemblies.
NSN: 1730-01-038-7655, 4920-01-480-6482

Unit dimensions (each side):

38" x 13" x 26" (96.5 x 33 x 66 cm)

  • Operation: hydraulic
  • Approximate skid lift: 3.5"
  • Attach points: on 8" centers
  • Aluminum construction
  • Color: white powder coat or military request
  • Must be removed prior to flight
