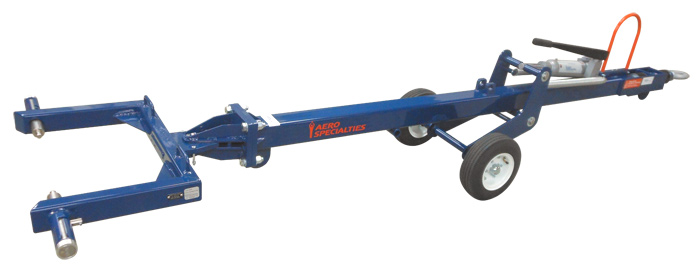

AERO RX-CRJ Towbar (Bombardier CRJ-100/200/700/900/1000, Challenger 850)

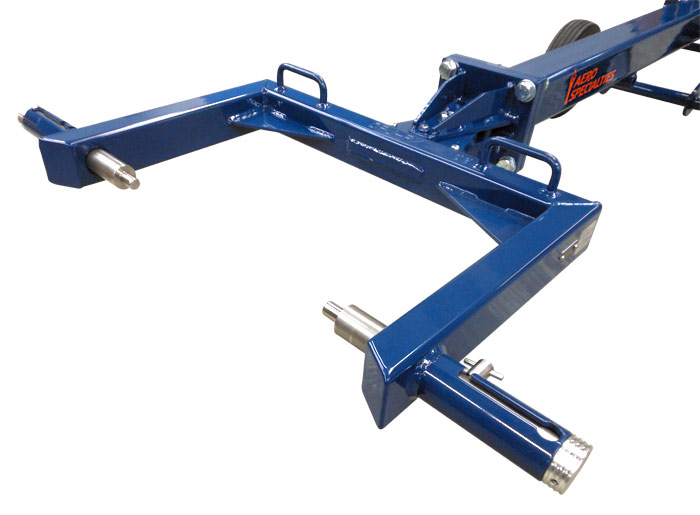

AERO RX-CRJ Towbar (Bombardier CRJ-100/200/700/900/1000, Challenger 850) - Image 2

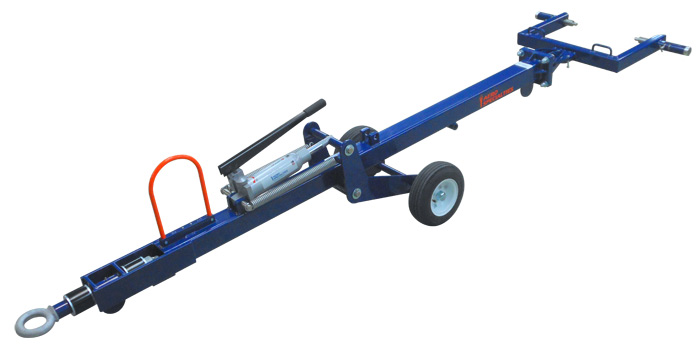

AERO RX-CRJ Towbar (Bombardier CRJ-100/200/700/900/1000, Challenger 850) - Image 3

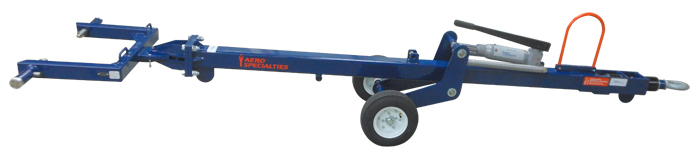

AERO RX-CRJ Towbar (Bombardier CRJ-100/200/700/900/1000, Challenger 850) - Image 4

AERO RX-CRJ Towbar (Bombardier CRJ-100/200/700/900/1000, Challenger 850)

SKU 2001050 Categories ,
Legacy AERO Product ID: 001687
Brand: , , , , , , , , , , ,

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Lead times vary, contact us for availability

Our steel RX-CRJ towbar (220,000 lbs. [99,790 kg.] capacity) is designed to perform push and pull operations on Bombardier CRJ-100/200/300/440/700/705/900/1000, Challenger 850/870/890 and Hawker 4000 regional airline aircraft.

Compares to Tronair multi-head towbar and CRJ 100/200/700/900 towbar heads, part numbers 01-1290-0100, 01-0803-0000, 01-0571-0011.

Dimensions:

  • Physical: 144" L x 24" W x 20" H (365.76cm x 60.96cm x 50.8cm)
  • Shipping: 120" L x 28" W x 28" H (302.3cm x 71.1cm x 71.1cm)

Weight:

  • Physical: 308 lbs (140 kg)
  • Crated: 534 lbs (242.21kg)

  • Heavy-duty steel
  • 3.125" (7.94 cm) I.D. hitch ring (lunette)
  • Linear & radial shear protection
  • Hydraulic lift kit
  • Road speed rated wheels, hubs and bearings
  • 10' [3.05 m] towbar (or 15' [4.57 m] bar with additional 5' extension)
  • Ships mostly assembled. Towbar head must installed on site with (4) 3/4" bolts.
