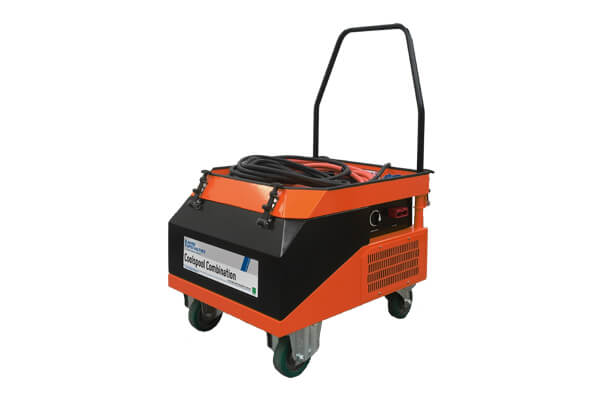

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit

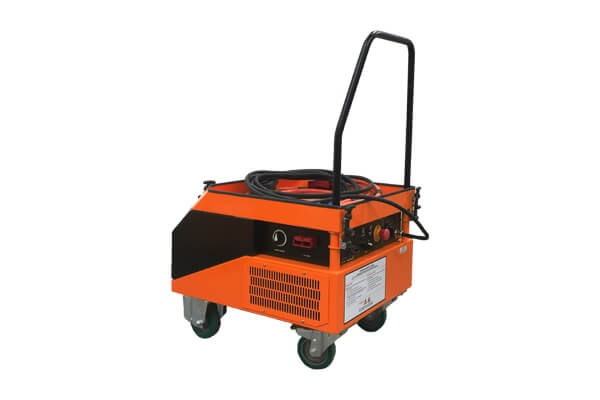

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 2

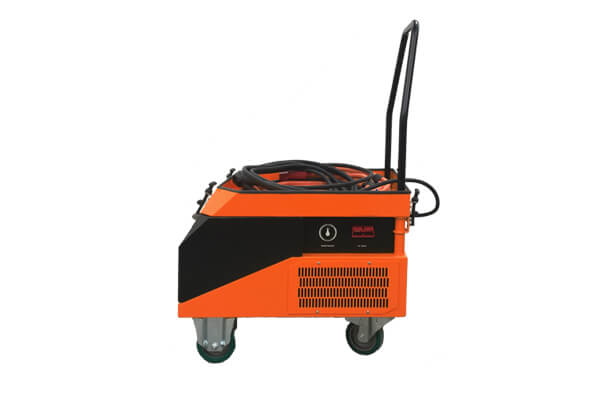

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 3

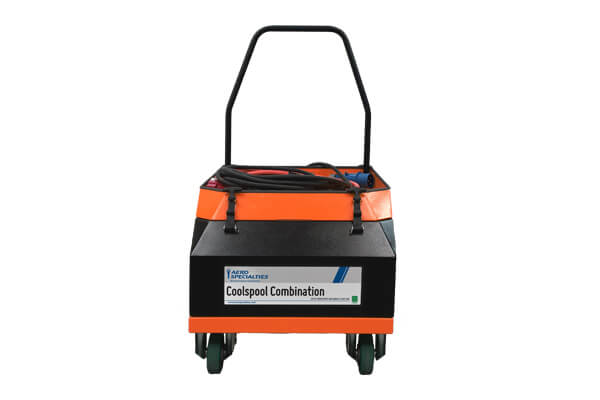

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 4

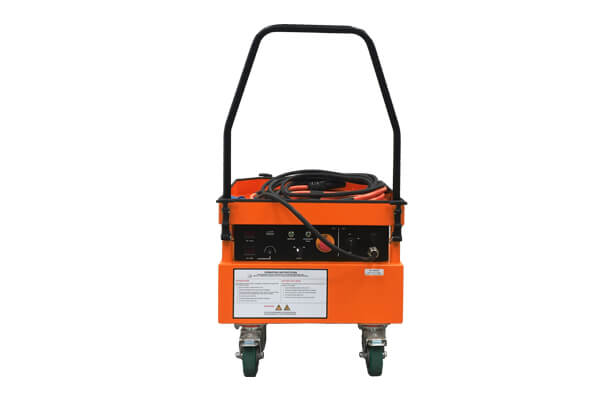

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 5

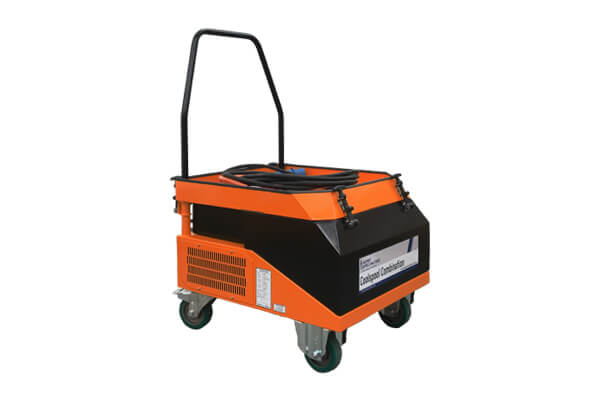

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 6

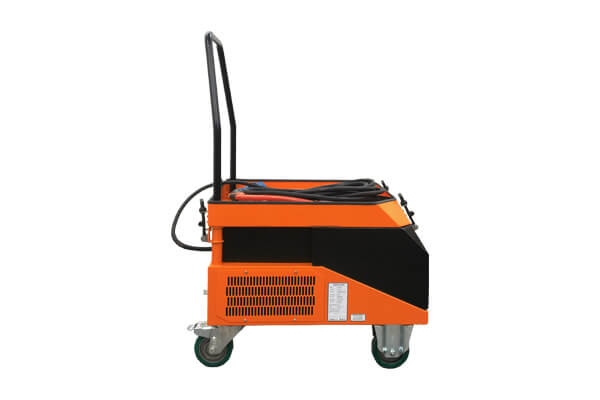

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 7

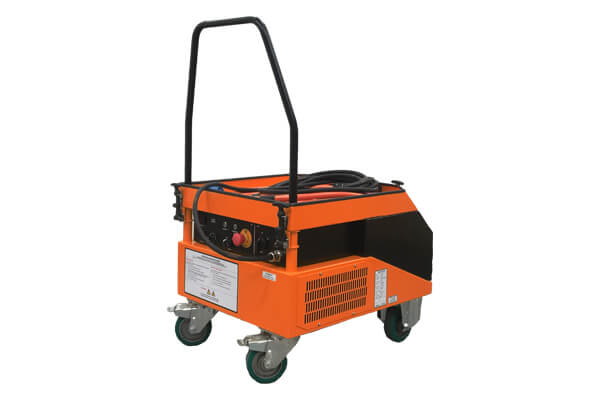

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit - Image 8

AERO Coolspool Combination 28V DC Power Supply and Aircraft Start Unit

SKU 2210599 | 2210600 | 2210534 | 2210601 | 2210602 | 2211632 Categories , ,
Legacy AERO Product ID: 2018197 | 2018313 | 2018122 | 2018314 | 2018315 | 2021537

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Options

The Coolspool Combination GPU has been developed to provide continuous power for avionics/air conditioning and for starting most DC turbine and turboprop aircraft. This small and easy-to-move GPU is completely user configurable.

Available in three different configurations, (100A, 200A or 300A) the Coolspool Combination utilises DC power supplies and high-discharge batteries to deliver instant ripple free power for turbine starting. The output voltage can be manually adjusted by the operator ensuring the GPU delivers the desired output voltage to the aircraft. Each Coolspool Combination GPU is supplied with power supply status LEDs, output voltage and current indicators and battery state-of-charge monitoring system.

The battery isolator switch and sealed lead acid batteries ensure the GPU is cleared for air transportation. The GPU is supplied with a Nato lead set and input lead cable, and also has dedicated cable storage space. Each Coolspool Combination GPU can be used inside the hangar or outside on the ramp, either plugged in to an external supply input or utilising its own DC battery power for turbine starting.

  • Weight: 3000 lbs [1360 kg]
  • Battery Capacity : 44 kWh
  • Current Output: 2500A Peak
100-600 A Continuous
  • Voltage: 28VDC
  • Ripple: <2%
  • Engine Starts: 110 @ 2000A Peak
  • Voltage Compensation: 4V at 600A
  • Charger Power: 15kW @ 3-Phase
5kW @ 1-Phase
  • Charging Time: ~2.7 hrs. @ 15kW
  • Discharge Time to 10% Life: 600 A Load = 2 hrs. | 300 A Load = 4 hrs.
  • Operating Temperature: -22 to 140°F
  • Noise Level: <65 dBA
  • Protection Level: IP55
  • Mean Time to Repair: 15 min
  • Overload Ratings: 600 A continuous use
1200 A for 30 seconds
1900 A for 10 seconds
2200 A for 5 seconds
2500 A for 2 seconds
  • Modular design with up to x3 power supplies for redundancy
  • Super-smooth, low ripple 28V DC adjustable output for sensitive avionics
  • Maintenance-free ultra high power sealed lead acid batteries deliver multiple turbine starts
  • Output voltage adjustable via knob situated in the control panel
  • Voltmeter and ammeter
  • Mains on/off switch
  • Power supply LED status indicators
  • Emergency stop push-button
  • Aircraft cable with NATO connector
  • Harsh environment input cable with plug
  • Low-resistance castor wheels for easy movement
  • Corrosion-resistant stainless-steel main enclosure, cable tray and handle; aluminum panels
  • Replaceable/washable air filters allow outdoor use
  • Civil or military use
  • Cleared for air transportation

  • Crated Weight: 350 lbs (159 kg)
  • Width: 36 in. (91.4 cm)
  • Height: 36 in. (91.4 cm)
  • Depth: 48 in. (122 cm)

  • 13ft NATO lead
  • 33ft input lead extension

  • Output Voltage: 28.4 to 29.4V DC (Adjustable)
  • Standing Voltage: 25.6V DC
  • Output Current (Continuous Rating): CSC100 - 100A; CSC200 - 200A; CSC300 - 300A
  • Peak Amps: CSC100 - 2400; CSC200 - 4800; CSC300 - 5000
  • Amp/Hour Capacity: CSC100 - 43 Ah @ 10hr rate (20°C); CSC200 - 86 Ah @ 10hr rate (20°C); CSC300 - 114 Ah @ 10hr rate (20°C)
  • Output Ripple: <240mV p-p
  • Input Voltage: CSC100 - EC1: 180-264VAC (15A max) 1-Ph+N+E, EC2: 90-180VAC (15A max) 1-Ph+N+E; CSC200 - EC1: 180-264VAC (29A max) 1-Ph+N+E, EC2: 90-180VAC (30A max) 1-Ph+N+E; CSC300 - EC1: 312-457VAC (15A max) 3-Ph+N+E, EC2: 180-264VAC (27A max) 3-Ph+N+E, EC3: 180-264VAC (45A max) 1-Ph+N+E
  • Input Frequency: 47 - 63 Hz
  • Operating Temperature: -20°C to +50°C (-2°F to +122°F)
  • Aircraft Cable: 2m (6ft) with heavy-duty rubber NATO Connector - optional 4m (13ft)
  • Input Cable: 10m (33ft) - optional extra separate extension of 10m (33ft)
  • Input Plug: CSC100 - EC1: 16A 3 pin 6h blue, EC2: 16A 3 pin 4h yellow; CSC200 - EC1: 32A 3 pin 6h blue, EC2: 32A 3 pin 4h yellow; CSC300 - EC1: 32A 5 pin 6h red, EC2: 32A 4 pin 9h blue, EC3: 63A 4 pin 6h blue
  • Cooling: Forced Ventilation
  • Projections (power supplies): Thermal, current overload, short circuit, overvoltage
  • Dimensions: CSC100 - With handle: L 960mm (38in), Without handle: L 710mm (28in); CSC200 - With handle: W 590mm (23in), Without handle: W 590mm (23in); CSC300 - H 1100mm (43.3in), With handle: H 554mm (22in)
  • Weight (including cables): CSC100 - 86kg (189.6 lbs); CSC200 - 115kg (253.5 lbs); CSC300 - 147kg (324 lbs)
  • NCAGE: KD628
