TLD GPU-409-E-CUP 90 kVA Diesel Ground Power Unit

SKU GPU-409-E-CUP Categories , , , Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

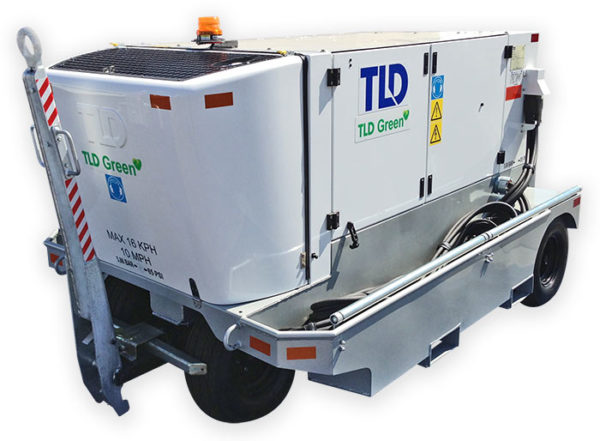

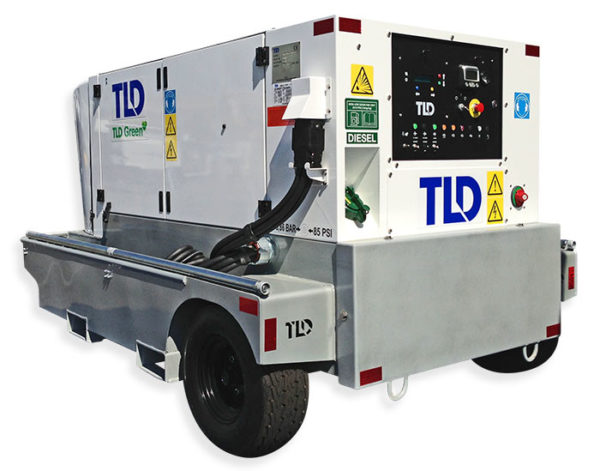

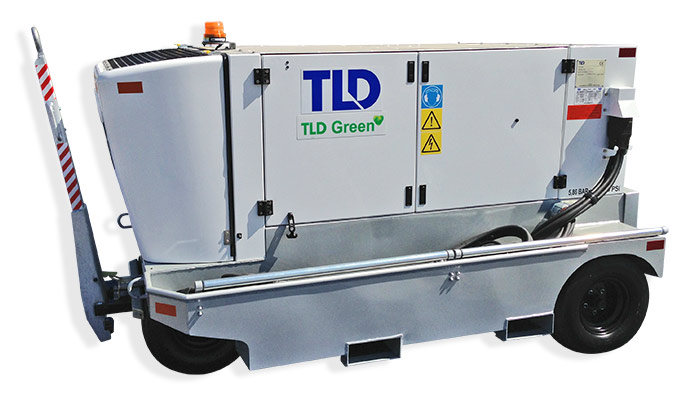

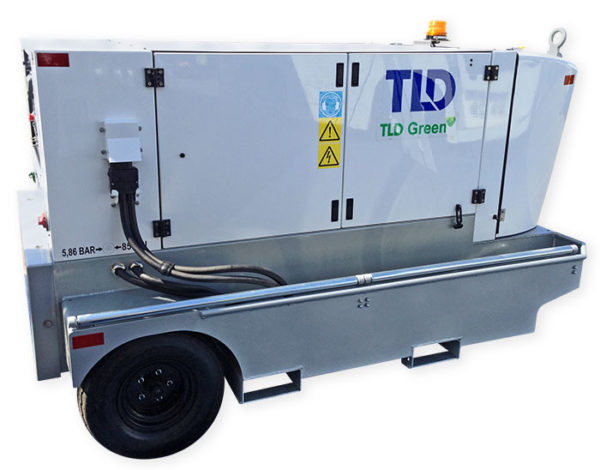

The TLD GPU-409-E-CUP Aircraft Ground Power Unit features an optimized 1,846 RPM brushless revolving field generator, which efficiently produces 90 kVA (72 kW) 400 Hz AC power to start and service aircraft. Designed with operators in mind, the GPU-409 Ground Power Unit’s full-size performance comes in a compact size, allowing for easier handling and better mobility near aircraft while reduced sound levels ensure customer and passenger comfort. Powder-coated aluminum and fiberglass panels that surround a rugged galvanized steel chassis are a durable, yet lightweight alternative to traditional designs. Mobility is enhanced by a rubber torsion axle, tight turn radius fifth-wheel steering, simple direct-acting brakes and a safe nodrop towbar. The unit’s engine can meet U.S. Tier 4i and EURO emission standards. Other engines options are available that will meet the specific regulatory needs of your geographic location.

The GPU-409-E-CUP is available with an optional 28.5 volts DC power output package, part number GPU-409-E-CUP-28. The 28V option creates dual outputs for a 90 kVA 400 Hz AC and 28 VDC combination aircraft ground power supply.

NOTE: Sales territory restrictions may apply, please contact us for more information.

NSN: 6115-01-061-6610

Generator Controls:

Digital generator control module (GCM) features voltage regulation, generator fault protection, and a generator operating parameter display. The GCM monitors the 400 Hz output when 400 Hz is in use and automatically switches over to monitor 28.5 VDC output when optional 28.5 VDC transformer rectifier is in use. The voltage regulator provides line drop compensation on 400 Hz as well as line drop compensation and current limiting on optional 28.5 VDC transformer rectifier. The GCM displays the generator output operating parameters such as voltage, current, and frequency digitally on a backlit LCD. The GCM is programmed to provide generator output fault protection in the following settings:

  • Over frequency: 420 Hz in 5 seconds
  • Under frequency: 380 Hz in 7 seconds
  • Over voltage: 130 volts in 2 seconds
  • Under voltage: 100 volts in 7 seconds
  • Overload: 125% of rated load for 5 minutes

Engine Controls:

Electronic engine governors provide precise frequency regulation and fast transient response. Engine protection such as low oil pressure and high coolant temperature are programmed into the ECM. An engine diagnostic connector is provided for communicating with the engine. Engine operating parameters are displayed via SAE J1939 CANBUS:

  • Engine speed, voltage and hours
  • Oil pressure and coolant temperature
  • Real time % load
  • Active and stored service codes
  • Various languages - US and Metric units
  • Automatic cool down cycle
  • Emergency shutdown
  • Separate analog fuel gauge provided

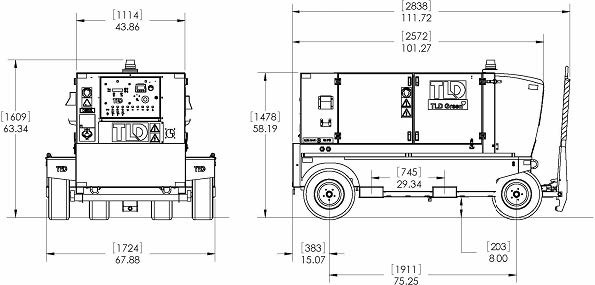

Dimensions: 112" L x 68" W x 59” H (284 x 173 x 148 cm)

  • Second 400 Hz output
  • Transformer rectifier: 28.5 VDC with current limiting - 800 amps continuous, 2000 amps peak. Can be field installed.
  • Beacon: Amber or red, flashing or rotating
  • Low fuel warning with shutdown or rampdown
  • Engine block heater
  • Fuel filter/water separator with heater
  • Hush kit
  • Rub rails
  • High efficiency fan clutch

Engine Specifications:

  • 24 volt starting motor
  • Heavy-duty spark arrestor / silencer
  • Pusher type fan
  • Full-flow lubricating oil filter
  • Dry-type air cleaner
  • (2) 12-volt batteries
  • Pusher-type fan
  • Low coolant shutdown

Generator Specifications:

  • 400 Hz 115/200 volts nominal
  • +/- 15% adjustable
  • 3 phases
  • 4 wire wye-connected
  • Grounded neutral
  • Revolving field
  • Brushless
  • Self-cooling
  • Single bearing
  • Brushless rotating rectifier assembly
  • Direct engine connection

Electrical Characteristics:

  • Meets MIL-STD-704F
  • Voltage regulation: +/- 1% over full load range
  • Voltage transient: +/- 13.8% no load to full load
  • Voltage transient recovery time: +/- 1% of nominal voltage within 100 milliseconds
  • Voltage modulation: 0.5% at steady state
  • Phase balance: <1% at balanced 3 phase load. <4% at 1/3 load on 1 phase and no-load on 2 phases
  • Harmonic content: THD <2%. Any 1 phase harmonic <1.5% at 0.8 PF linear load
  • Crest factor: 1.414 +/- 0.07
  • Frequency regulation: +/-0.1% no-load to full-load and overload
  • Frequency transient: +/- 2.5% no-load to full load
  • Frequency transient recovery time: +/- 0.5% of nominal frequency within 1.5 seconds
  • Overload rating: 125% for 5 minutes
  • Line drop compensation: Increases up to 10 VAC
  • L-N to compensate for aircraft cable voltage drop

Chassis Characteristics:

  • Easy access to all components
  • Side mounted cable trays with integral rollers
  • Fuel tank – 46 gallons for over 8 hrs of run time
  • 5th wheel steering with no-drop towbar brake
  • Forklift pockets and tie down rings
  • Cable plug holders
