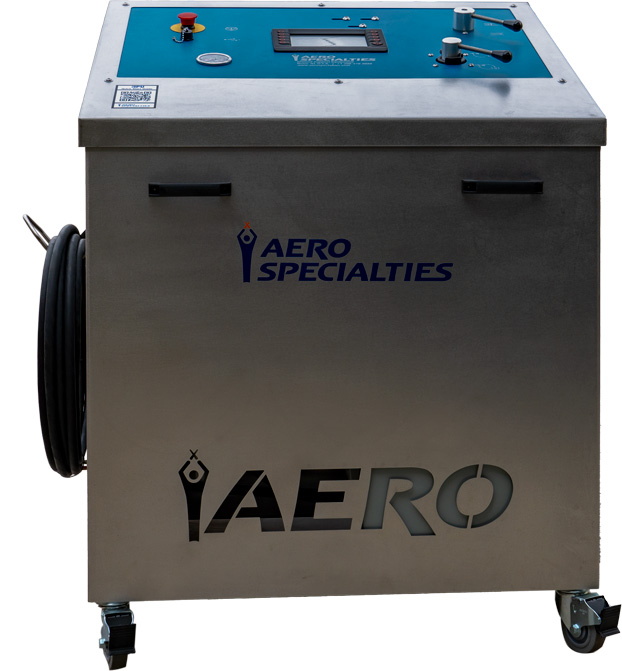

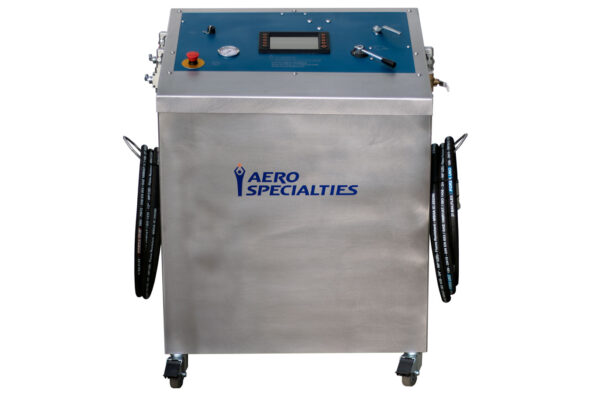

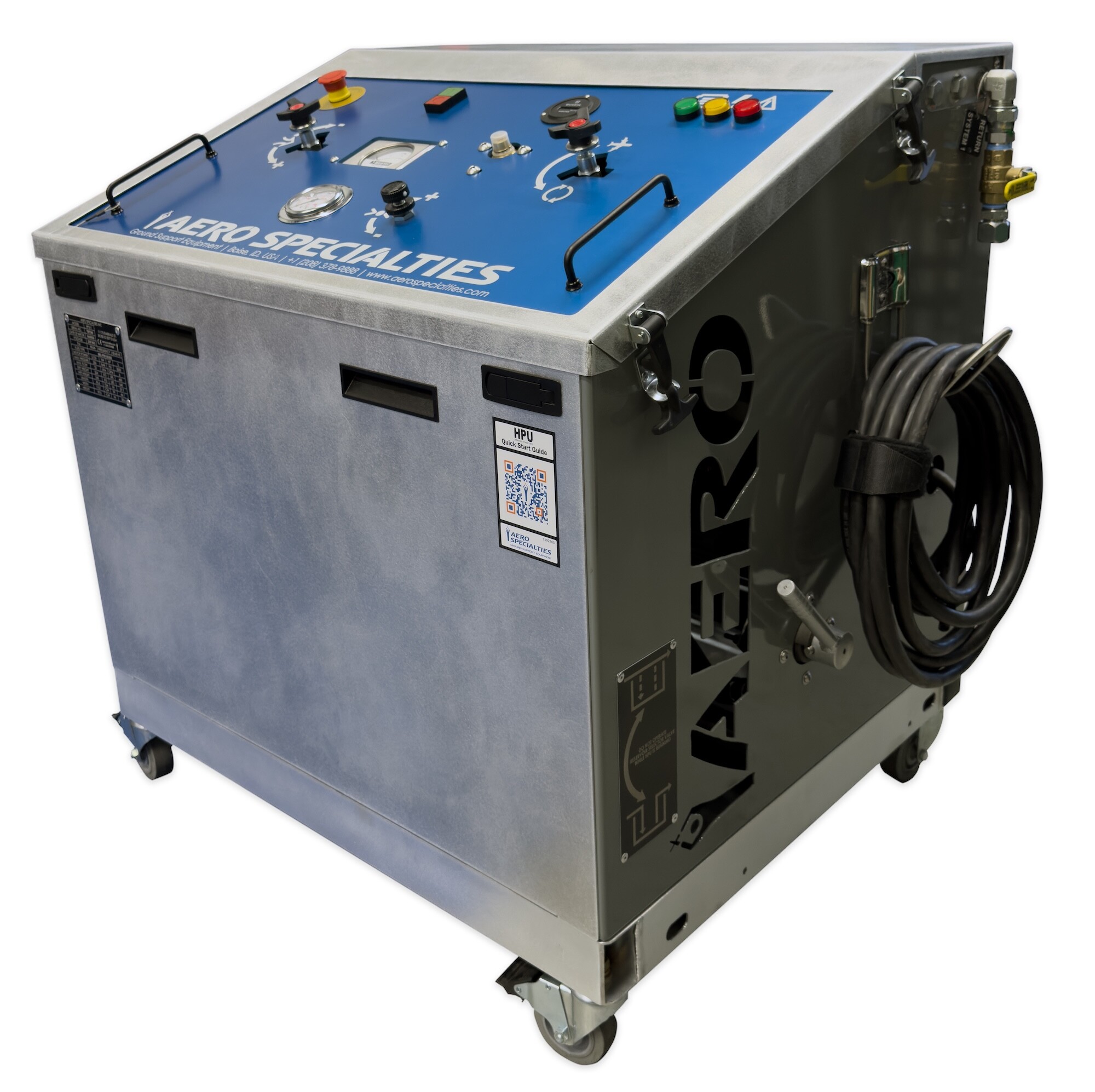

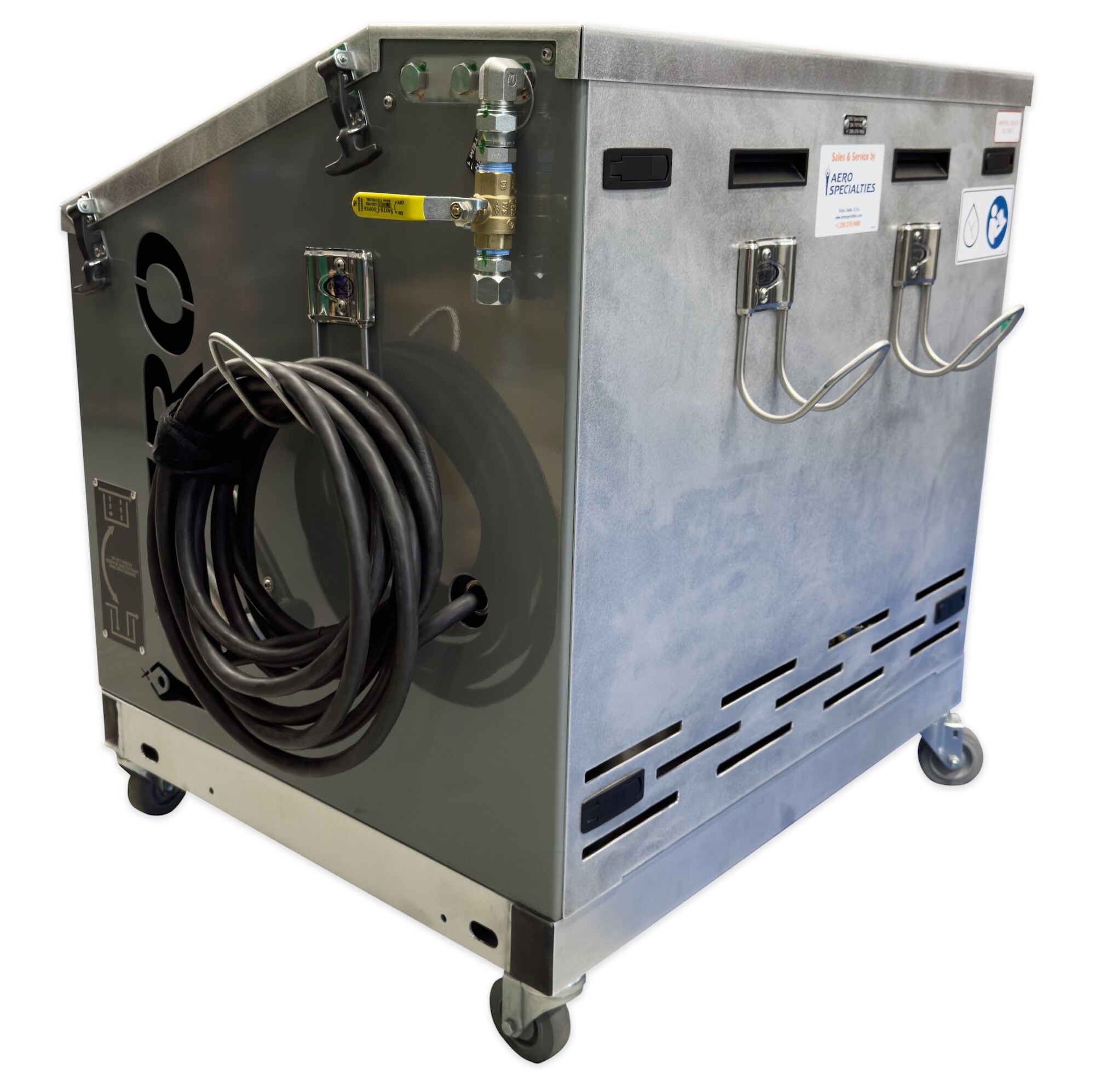

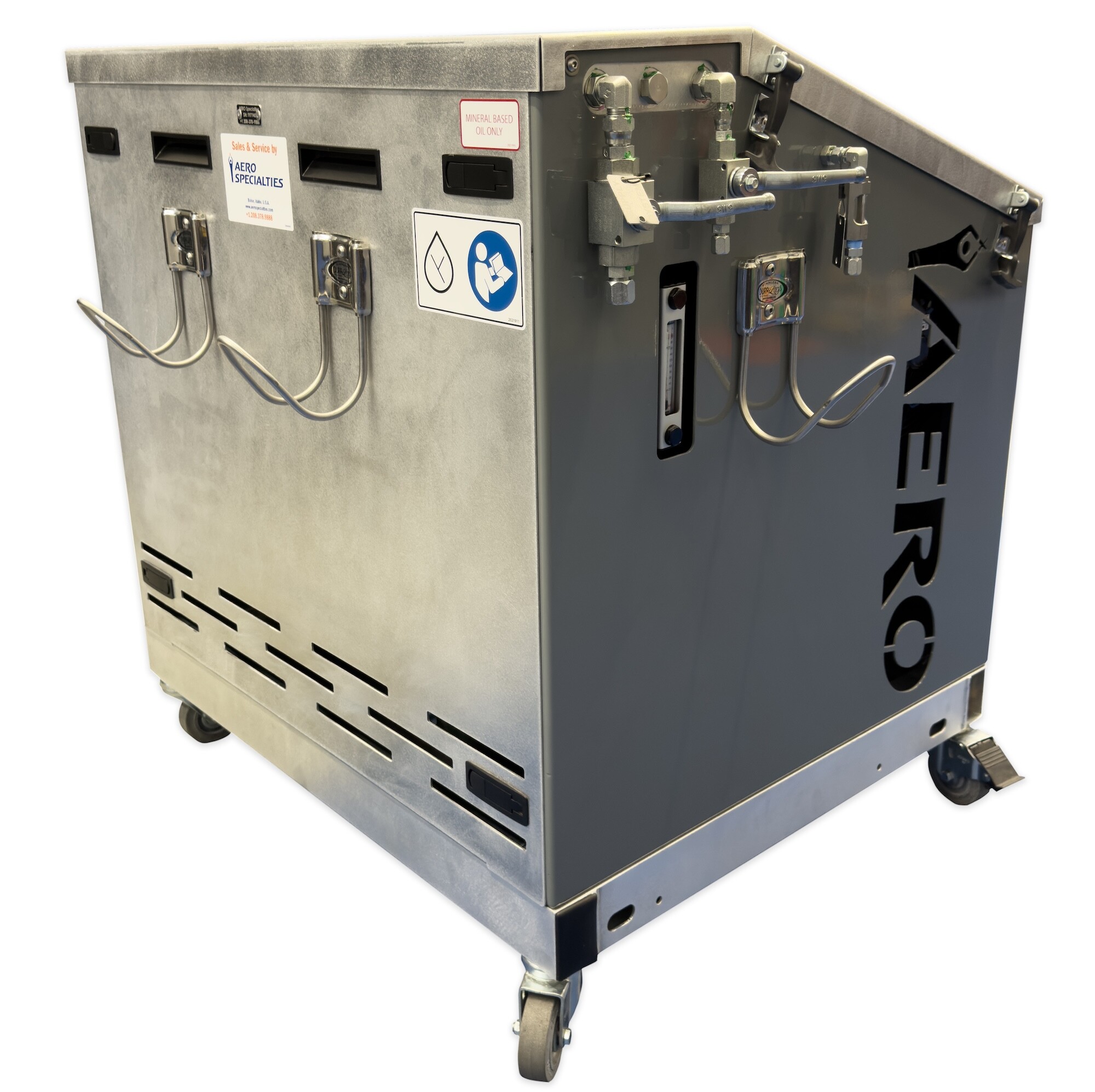

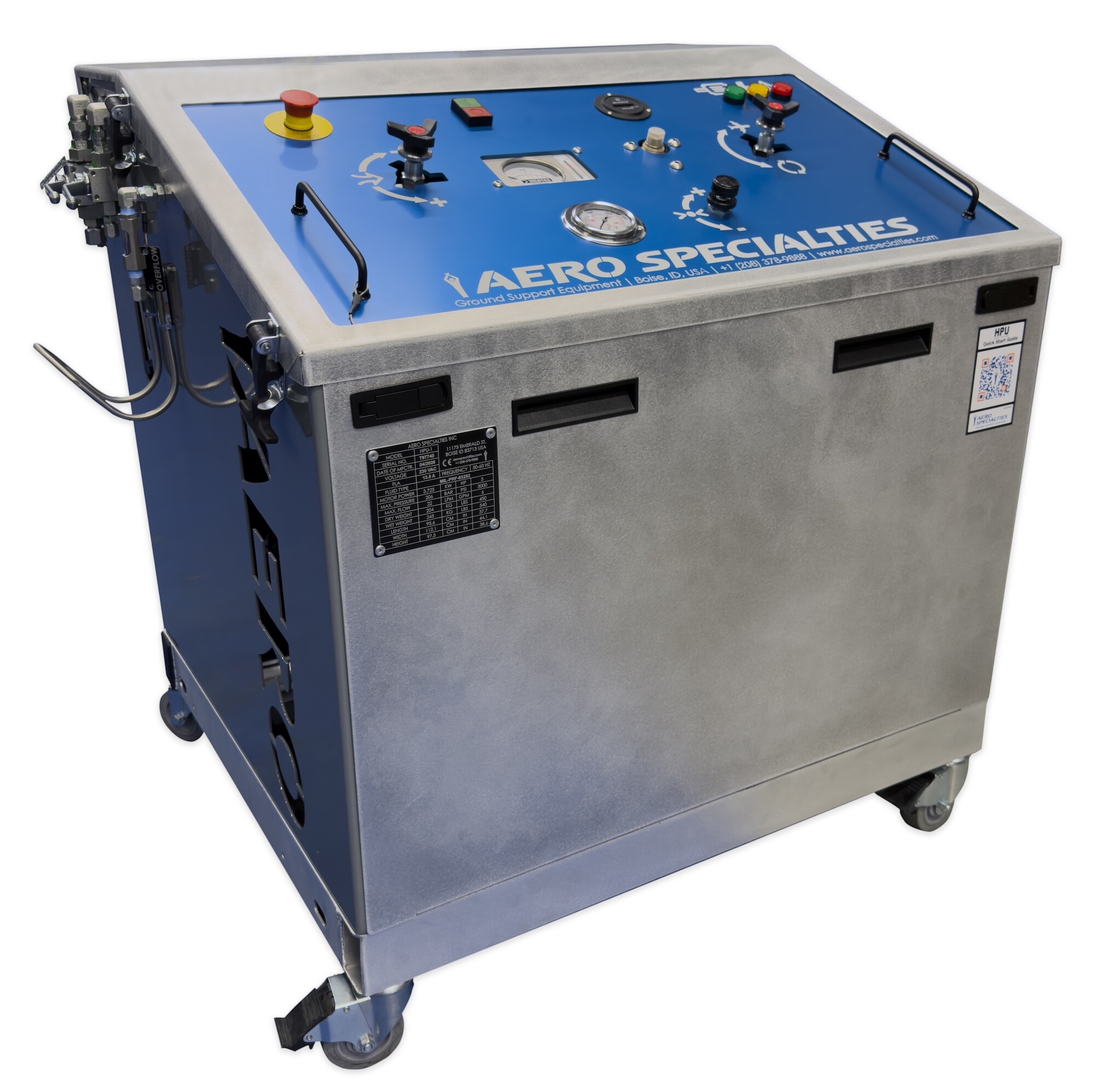

AERO Series Hydraulic Power Units, Size 1

SKU 2020303 Category Brands: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Are you ready for fast, simple, and efficient operating and testing of your aircraft hydraulic systems? AERO Specialties Hydraulic Power Units are the answer to your needs. These units utilize state-of-the-art technology to offer more flow, more power, and less noise all at a competitive price.

AERO’s size 1 HPU features an easily drainable 10-gallon (37 liter) fluid reservoir.

AERO’s HPUs are fitted with a modern digital display accompanied by an easy-to-use, software-driven operator interface. The included software allows for quick and easy access to settings, aircraft presets, calibration schedules, and more.

Our engineers developed these industry changing units with invaluable input from MROs and certified AMTs from around the world.

“We finally got to use the HPU on an aircraft last week and it worked perfectly. The pressure control is a really nice feature and it has to be the quietest HPU we have ever used. Thanks for the training, it served us well.”

-Stephen Ziglear, Director of Maintenance, Skyward Aviation

Comparable Tronair Hydraulic Power Unit (Mule, HPU): 50, 51, series

The equipment listed on this information sheet must only be operated by appropriately trained aircraft technicians.

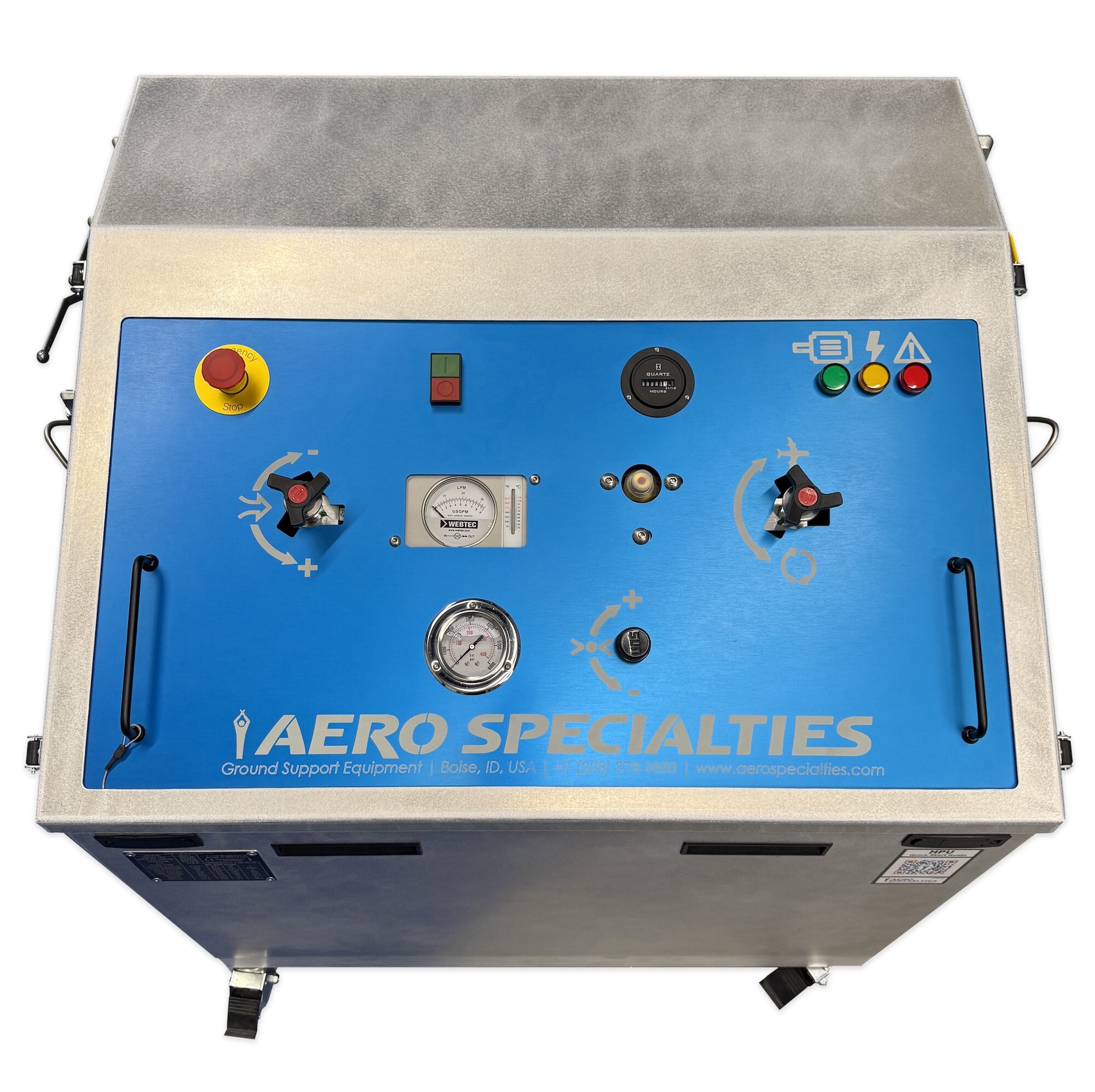

Push Button Digital Screen:

  • Main dashboard displays live flow rate, pressure, fluid temperature, proper fluid level and the condition of both filters with an intuitive layout
  • Three programmable setpoints for flow and pressure
  • Available in French, German, English or Spanish in either metric or imperial units
  • Maintenance dashboard allows quick input of the date/time, operator and aircraft tail numbers and tracks filter replacement and gauge calibration
  • Easily navigated using backlit push buttons and rocker button
  • Data logging generates useful reports for each individual test performed with a time stamped data file of all pressure, flow and temperatures
  • Each file can be saved to a thumb drive and identified by the aircraft tail number
Standard Features:

  • 3-micron synthetic pressure filter
  • Electronic filter clogging indicators
  • Automatic high fluid temperature shutoff
  • Visual reservoir sight glass
  • Automatic high/low level reservoir monitoring with automatic shutoff
  • 25 ft (7.6 m) power cord, cables are pig-tailed and plug-ready (no plug included)
  • 15 ft (4.6 m) -8 Supply Hose
  • 15 ft (4.6 m) -12 Return Hose
  • 5,000 psi (345 bar) dual scale analog gauge
  • Low noise, (<74dBa) Quieter than a shop vacuum
  • Easy to access fluid sample port
  • Fluid sampling valve meets ANSI T2.24.1-1991
  • Easily drainable 10-gallon (38 l) reservoir
  • Ergonomically designed for easy maneuverability and low clearance in tight hangers
  • Durable stainless-steel skins
  • Full true drip pan with drain plug
  • Leak preventing hose hangers
  • Super bright green running light
  • Super bright red warning/error light
  • Voltage Monitor
  • CE Compliant

Dimensions/weight

  • Dry Weight: 400 lbs (181 kg)
  • Wet Weight: 482 lbs (218 kg)
  • Crated Weight: 650 lbs (294.8 kg)
  • Width: 39 in. (99 cm)
  • Height: 42 in. (106 cm)
  • Depth: 26 in. (66 cm)

Options

  • Dual delivery hoses 15’
  • 25’ delivery hoses
  • Dual 25’ delivery hoses
  • 50’ power cord - 10AWG 4 Conductor (6mm^2 EU) (no plug included)

Specifications

  • Max Flow Rate: 5 GPM (23 LPM)
  • Fluid Type: Mineral Based or Skydrol Type IV or V
  • Max Pressure: 3,000 PSI (207 BAR)
  • Pressure Hose: -8 (1/2")
  • Return Hose: -12 (3/4")
