IDI EO-30/30 Mini-Mule, 2.5 GPM

SKU 2006766 Category
Legacy AERO Product ID: IDI EO-30/30

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

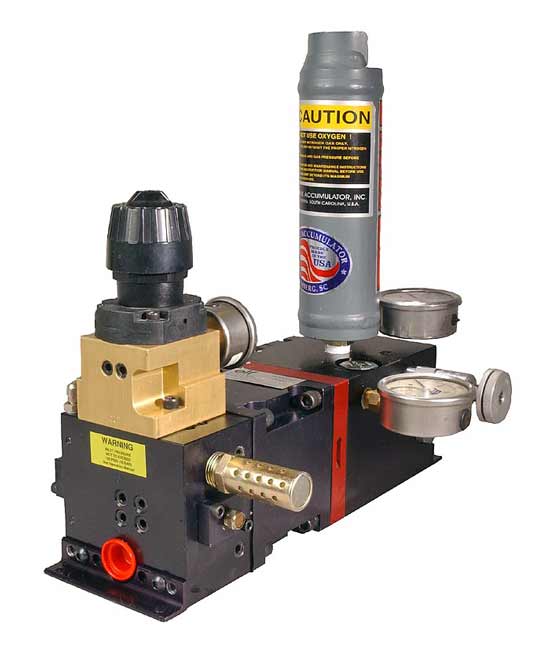

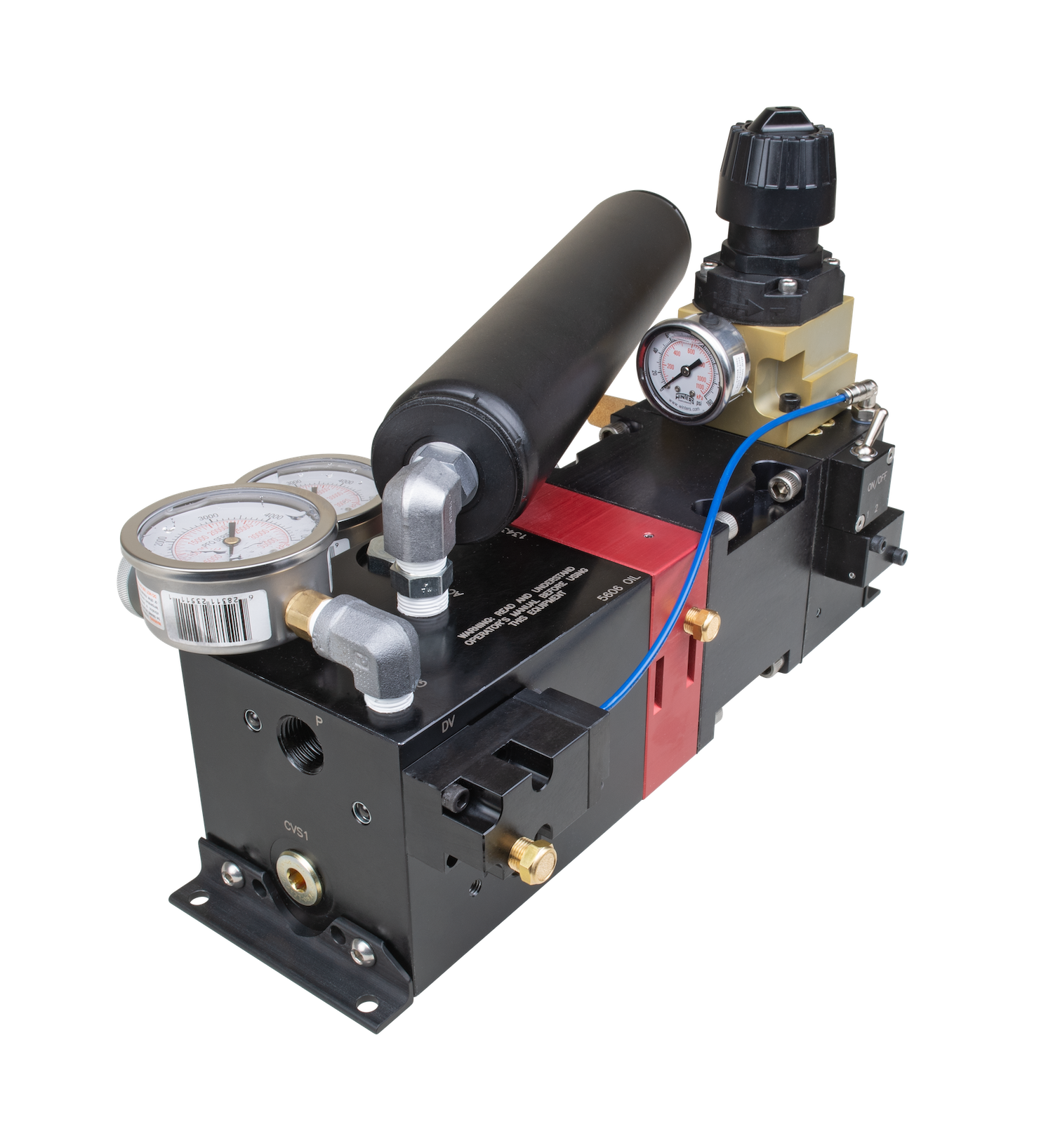

The EO-30/30 air-powered hydraulic mini-mule is a compact pump with a lot of kick. You can use it around the hangar or out on the field to run flaps, swing the gear, and any other hydraulic functions. The EO-30/30 comes in MIL-H-5606. Runs on shop air, connects to aircraft quick-disconnects and runs in-line. Aircraft hydraulic couplers and optional 5 gallon reservoir are available separately.

  • Maximum pressure: 2,500 psi
  • Maximum flow: 2.5 GPM
  • Ratio: 30:1
  • Required inlet pressure: 80-125 PSI at 20-25 CFM

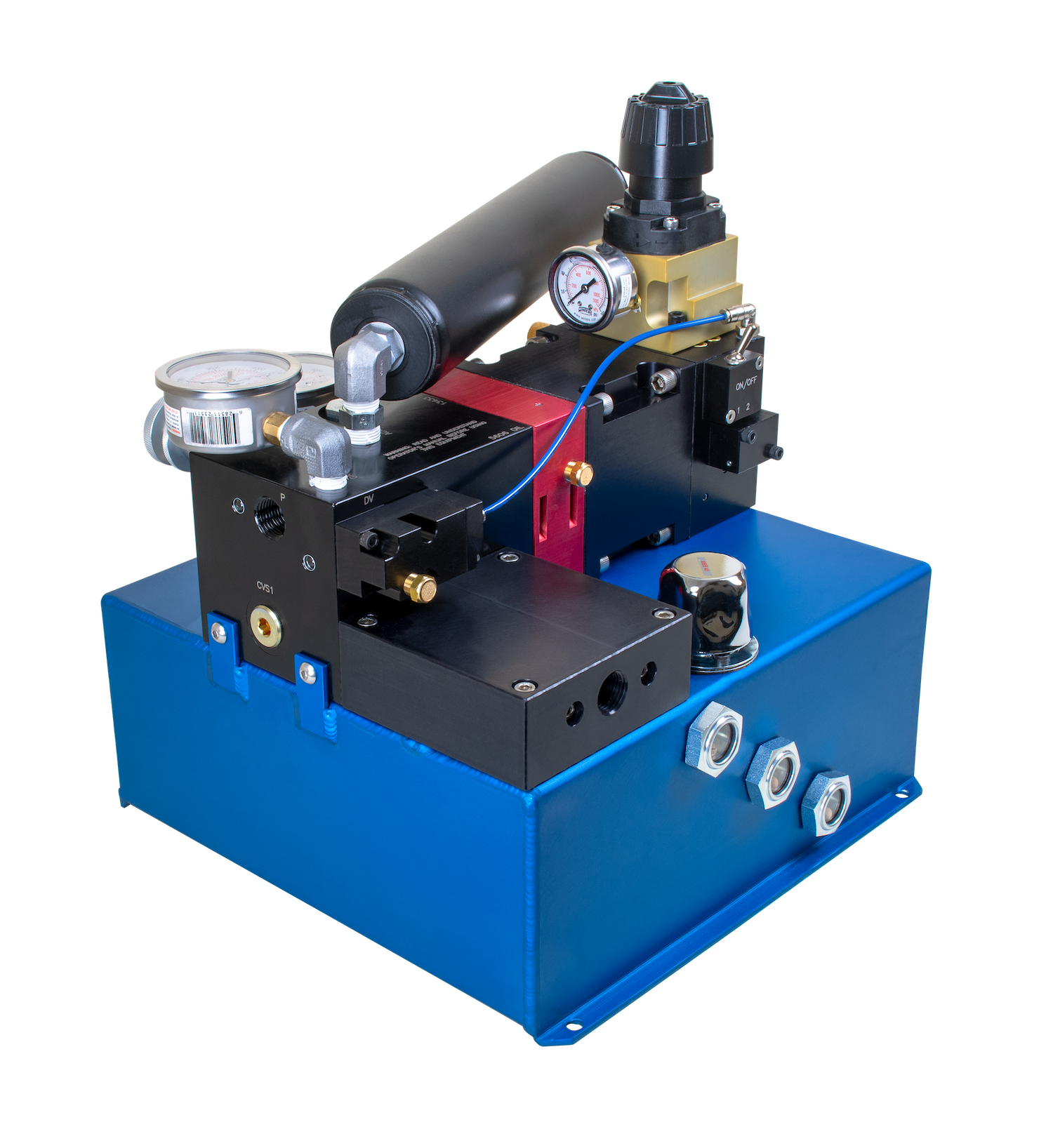

NOTE: Additional photos show optional 5-gallon reservoir. Hoses not included.

  • Compact size (14" long x 9" wide x 14" high)
  • Light weight: 28 lbs. complete
  • Powered by compressed air; no electrical required
  • No inlet air valve, air regulator, or air lubricator required
  • Totally sparkless operation
  • Polymeric seals for long life and high efficiency
  • Oil accumulator to decrease pulsation through system
  • Integral subplate-mounted air regulator
  • Up to 4 gallons per minute of hydraulic flow
  • 2,500 psi of working pressure

STANDARD PRODUCTS WARRANTY
Effective: February, 2000

INTERFACE DEVICES, INC. (hereafter, the factory) warrants it’s products to be free from defects in material and workmanship under normal use and service for a period of one (1) year from date of shipment from the factory. Any defect discovered after the warranty period has expired will be deemed to be outside the above coverage. No goods claimed to be under warranty shall be accepted for return unless authorized by the factory beforehand.

Upon discovery of a defect (other than freight damage) or a shortage of an item received in the original factory container, the purchaser shall, within (10) calendar days, deliver notice of the defect or shortage. Damaged freight claims must be placed with the freight carrier and will not be honored by the factory. If after due investigation of a claim of defect or shortage is found valid, the factory may discharge it’s entire obligations to the purchaser by either repair or replacement of the defective product or component and for shortages by furnishing a replacement of the missing quantity (FOB, factory).

This express warrantee supersedes and is in lieu of all other remedies and warranties, including the implied warranties of merchantability and fitness, and liability for negligence. IN NO EVENT SHALL THE FACTORY BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSSES, EXPENSES OR DAMAGES.

Dimensions: 14" x 9" x 14" (35.56cm x 22.86cm x 35.56cm)

Weight: 28 lbs. (12.7 kg.)

Fluid Types:

MIL-H-5606

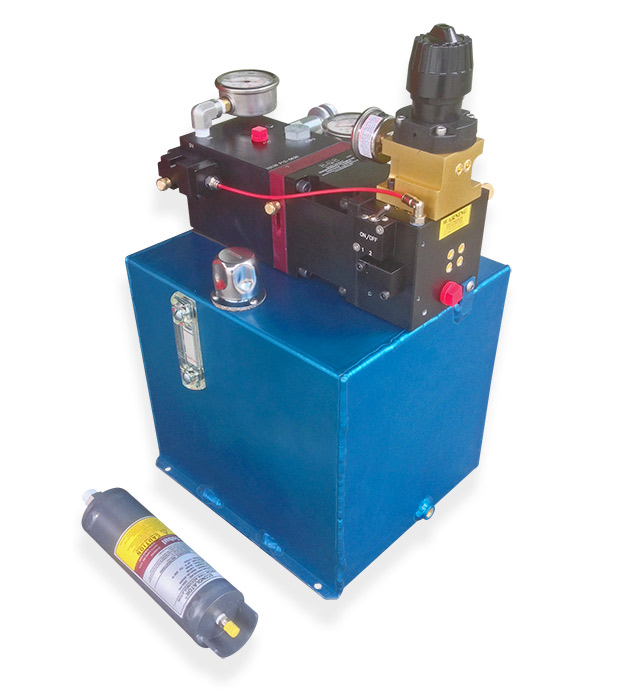

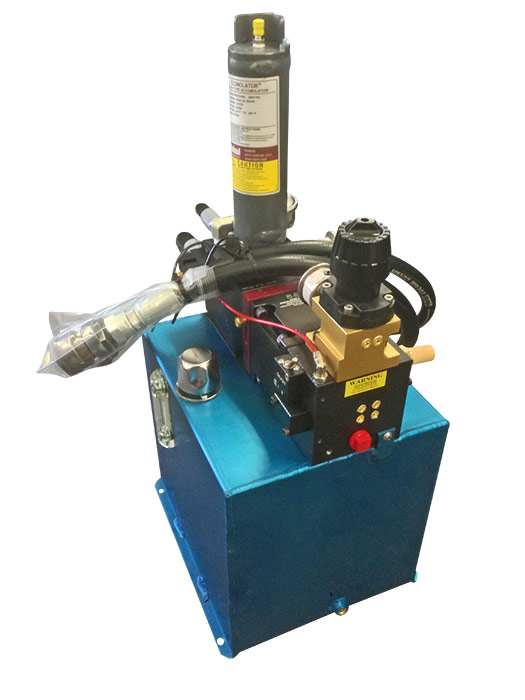

Optional 5-Gallon Reservoir:

5-gallon, anodized aluminum reservoir option for IDI mini-mule. Bolts onto unit for servicing aircraft. (For bench testing only)
