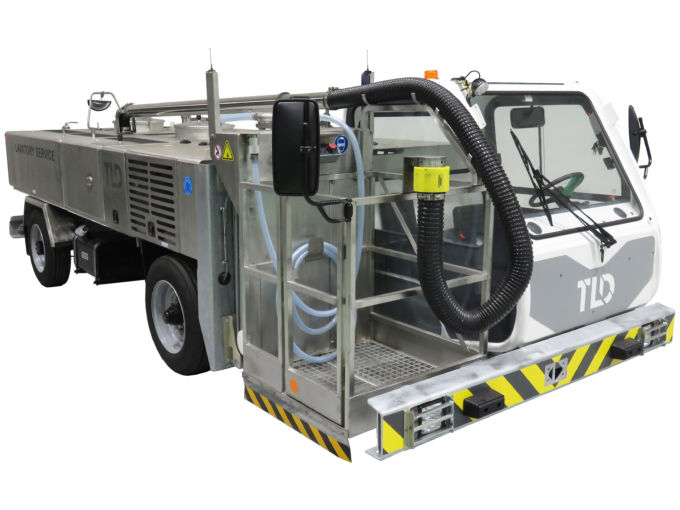

TLD LSP-900 Lavatory Service Vehicle

TLD LSP-900 Lavatory Service Vehicle

SKU LSP-900 Categories ,

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

The LSP-900 Aircraft Lavatory Servicing Vehicle is designed to provide airlines and the airport servicing industry an all stainless steel unit for application on all current new generation aircraft.

Engineered to the highest standards, the LSP-900 stands up to extreme weather and abusive ramp conditions. Improved design features simplifies aircraft servicing, provides economical operation, reduces flight delays, cuts maintenance costs and minimizes risks of environmental hazard.

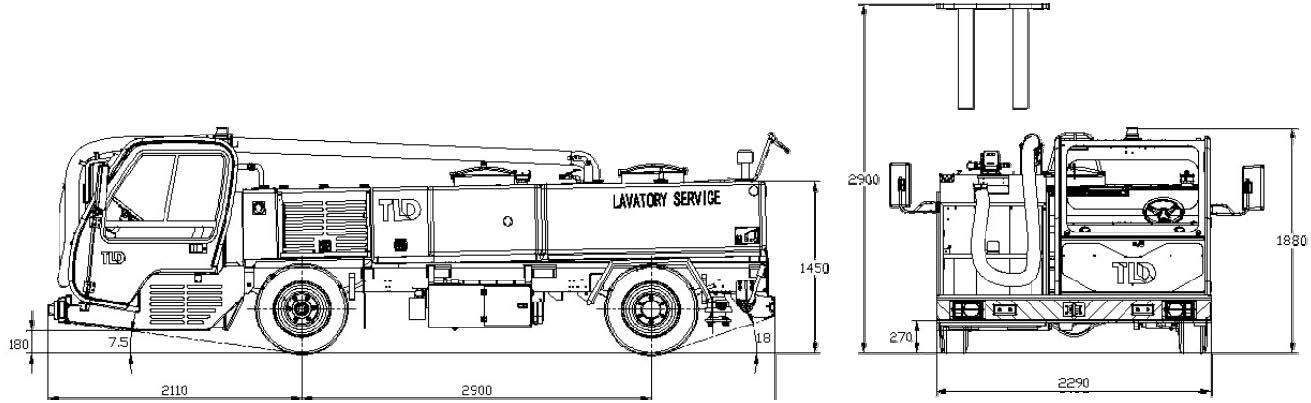

This equipment allows aircraft servicing up to 5m [16.4’] height with 2.9m [114”] lift. All pumping operation controls are performed from the front lifting platform in a safe environment. The operator’s cab is rubber shock-mounted for a comfortable drive and provides excellent ramp visibility. The LSP-900 complies with common international requirements and regulations.

Standard Features
Engine PERKINS: Diesel 2.2 liters, 35.7kW@2600RPM.
Emission: US EPA TIER3, EU Stage IIIA
Transmission Powershift transmission with torque converter and oil
cooler. Two forward and one reverse gears.
Speed Max 25km/h
Steering Assisted hydrostatic front wheel.
Turning radius: 7 m (23’)
Fuel tank Capacity 80L / 21 U.S. gallon
Hydraulic tank Capacity 80L / 21 U.S. gallon
Dynamic brakes Brake system on 4 wheels with booster.
Front wheels: Dry disks / Rear: Drums.
For maximum safety, front and rear break circuit are
independent.
Parking brake On rear wheels activated by cable
from cabin.
Hydraulic circuit A gear pump provides the hydraulic fluid required for
all operations: steering, lift controls and pumping.
Waste circuit Telescopic rigid stainless pipe from tank to basket.
Water pump group Stainless steel centrifugal self priming
disinfectant pump with strainer and adjustable
relief valve (3.5 bar (50 PSI)). Pump driven by
hydraulic motor. Controlled from lifting platform.
Flow: 110L/min, Flow meter zero reset
Spring-loaded hose reel.
Front axle Large-size, with steering cylinder. Mounted on
leaf spring.
Rear axle Drive axle mounted on leaf springs.
Disinfectant/waste tank set Tanks are stainless steel 304 with internal
baffle; all inside fittings and weld joints have
smooth finish and all inside corners are rounded
1” radius.
• Manual draining valve
• Level gage / visual level indicator
• 2 man holes   500 mm (17”)
• Filler neck and cap
• Internal spray for waste tank cleaning
• Effective capacity:
– Disinfectant: 1150L (305 US gal)
– Waste: 2250L (595 US gal)
Wheels/tires 215/75 R17.5 Tubeless
Electric equipment – 12 VDC system. 55 A generator power
– 1 master switch
– 2 headlights. Stop lights. Back-up lights. Turning
indicators. 1 working light
– Fuel gage, hour-meter, E-switch in cab
– Safety interlocks to prevent vehicle from being
driven while platform is raised.
– Platform movement warning buzzer.
Lifting platform Stainless steel material with antiskid floor.
820 x820 mm (32 x 32 ”) / 200 kg (440 lbs) capacity.
Lift cylinders fitted with parachute check valves.
Emergency control device to lower platform in case of
failure.
Lift controls Dead-man push-buttons for lift controls.
Controls: up/down/e-stop/pump controls.
Low disinfectant level indicator.
Flexible hose Premix flexible hose 1’’ diameter equipped with a
connector.
Dump valve Large 4” diam. ball valve, 90  rotation, for fast
dumping of waste.

Options
• Air conditioner with padded cab
• Aircraft detection limit switches
• Break-away coupling
• Cold weather kit (down to -40 ˚C)
• Detergent mixer (Dosatron)
• Emergency DC pump for steering purpose
• Powered dump valve
• Rear access stainless steel ladder
• Rear view video device
• Safety interlock (to prevent driving when hose is not stowed)
