TLD TPX-100-E Towbarless Aircraft Tractor

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

The TPX-100-E is an electric towbarless tractor designed for push back of most commuters, and single aisle aircrafts up to 100 tons, from SAAB 2000 to BOEING B757 (100 tons maxi).

Its unique AC/DC technology in this range of tractor increases driving comfort & lifetime and allows to get more reliability and to reduce operating costs.
The cradle system is designed to fit all NLG, included inclined models.

It includes the over torque warning device as well as an automatic control of loading/unloading to allow fail safe operations.
Provided with a comfortable ergonomic cabin, the TPX-100-E offers a high level of maneuverability combined with an excellent visibility. Its heavy-duty design ensures the TPX-100-E offers outstanding reliability.

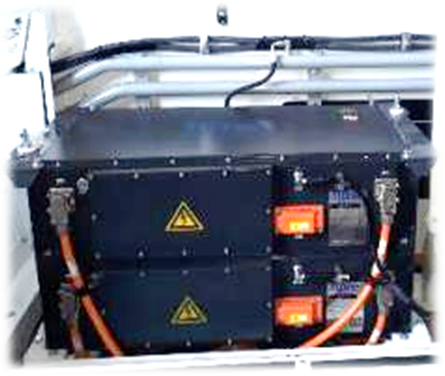

  • Li-ion iBS battery packs (2 or 3)
  • Lead-acid battery (775 Ah 80VDC)
  • Fixed or Onboard battery charger (400Hz or 50/60Hz supply)
  • Remote control
  • Embraer 130/135-140/145, CRJ 100/200 compatibility
  • Embraer 170/175-190/195 / DC9 / MD80 Compatibility
  • Rotating beacon
  • Air conditioning
  • Webasto heater
  • De-icing windscreens
  • Jack plugs
  • Fire extinguisher
  • Multifunction box (cup holder, bypass pins and headset storage, USB charging plug for electronic devices)
  • Long range video camera (to the front)

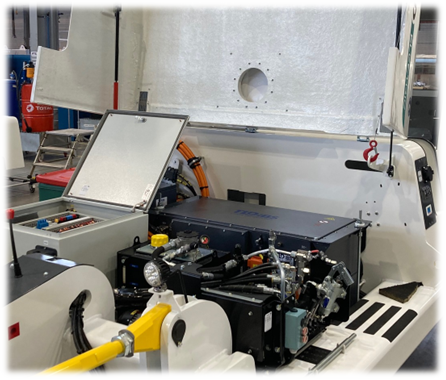

  • Full electrical drive line powered by:
    • 2 or 3 packs of Li-ion iBS batteries (80VDC)
    • OR lead-acid batteries (80VDC)
  • 2 asynchronous electrical motors coupled with twin wheel reducer, controlled through of 2,650A inverters
  • Current regeneration on front driving wheels and dry discs on rear steering wheels hydraulically actuated
  • Parking brakes integrated within electrical motors, operating through lack of current (failsafe system)
  • Unique maneuverability with hydrostatic steering on rear axle (max 55°)
  • Overtorque protection and backplate monitoring system
  • Comfortable, centered driver position for optimal vision on NLG, with adjustable steering column and suspended seats (Driver and passenger)

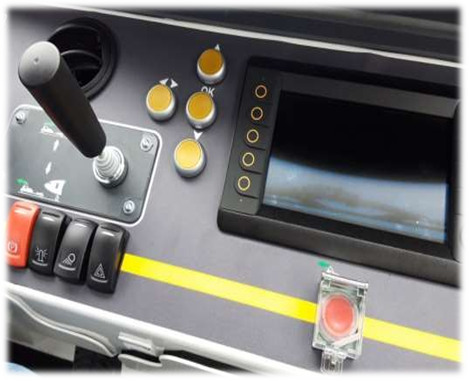

  • Full color display with multiple indications on operation, unit status, and troubleshooting
  • Emergency stop on dashboard & emergency reverse gear
  • Semi-automated capturing system with aircraft recognition
  • Continuous control on tractive and braking forces
  • Easy and quick emergency release system
