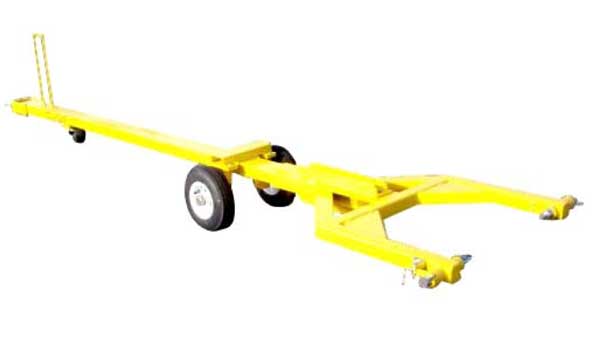

AERO B717/DC9/MD80 Towbar (Fixed Height)

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Lead times vary, contact us for availability

The AERO B717/DC9/MD80 towbar is fabricated to withstand the forces of pushback and towing operations when attached to the nose gear of a Boeing 717, MD80-88-90 or DC-9 aircraft.

Compares to Tronair Custom DC-9/MD-80 towbar, part number 01-1267-0000.

Note: Crating is recommended for protection of towbars during transit. AERO Specialties accepts no liability for damage during transit of un-crated towbars.

Shipping Dimensions: 165” L x 42” W x 12" H (4.19m x 106.68cm x 30.48cm)

Weight: 310 lbs. (140.61 kg.)

  • Main frame constructed of structural square tube.
  • 4 Inch Lunette towing eye.
  • 3.50 x 6" pneumatic tires.
  • Towbar is shear bolt designed to protect aircraft nosegear.
  • Small caster behind towing eye keeps towing eye from striking ground surface.
  • Epoxy powder coated per customer color.
