Bell 206A "JetRanger" (with Pop-Out Floats) Mechanical Ground Handling Wheels

Bell 206A “JetRanger” (with Pop-Out Floats) Mechanical Ground Handling Wheels

SKU 2001389 Category
Legacy AERO Product ID: 002098
Brand:

$2,046.82 USD

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

Helicopter ground handling wheels are used to lift a helicopter off the ground for easy movement in the hangar or on the ramp. They are attached to the skids, allowing for the user to easily balance the aircraft during maneuvering without the tail hitting the ground.
Our ground handling wheels provide a portable and dependable solution for the maneuvering of your helicopter. This model of mechanical ground handling wheels allows for movement of Bell 206A “Jet Ranger” model helicopters equipped with pop-out floats by means of heavy-duty tires and an integrated locking system. By applying force to the included 48″ (122cm) handle bar (not shown), the helicopter may be lifted off the ground and the ground handling wheel automatically locked in place with the engagement pin when the proper height is reached.
Jet Rangers with the light weight 6-pac floats will require this single wheel design. The wheel assembly is locked in place with a pin into the skid tube. The wheels lock automatically in the full down position.
Price is for both the left and right side assemblies as well as a handle bar.

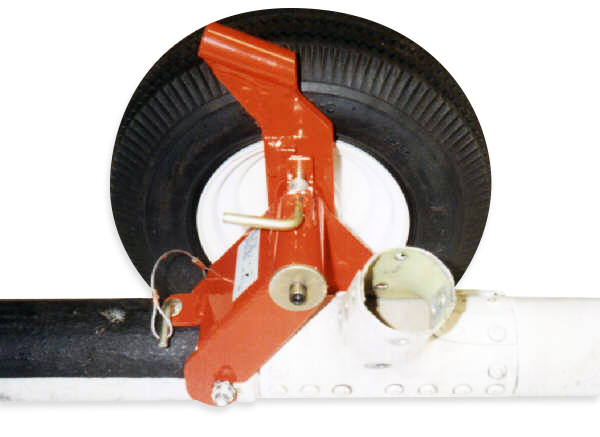

Note: Photo shows unit attached to helicopter skid tube.

Unit dimensions (each side):

14" x 14" x 22" (35.6 x 35.6 x 55.9 cm)

21 lbs. (9.5 kg)

Shipping dimensions:

Box: 14" x 14" x 26" (35.6 x 35.6 x 66 cm)

Tube: 1.75" diameter x 52.5" L (4.4 x 133.4 cm)

Shipping weight: 50 lbs. (22.7 kg)

  • Skid tube diameter: 3.00"
  • Operation: mechanical, 48" bar
  • Tire size: 4.10-3.50-6 @ 85 psi
  • Approximate skid lift: 3"
  • Attach points: 3 pins, .50 diameter
  • Color: orange powder coat
  • Must be removed prior to flight
