TUG Technologies 660-27 Wide Body Belt Loader

SKU Tug-660-27 Category

This Item Will Be Quoted.

Prices shown are for products sold in USA only. For pricing in regions outside of USA, please request a quote.

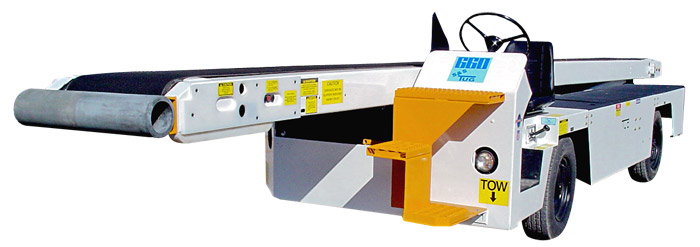

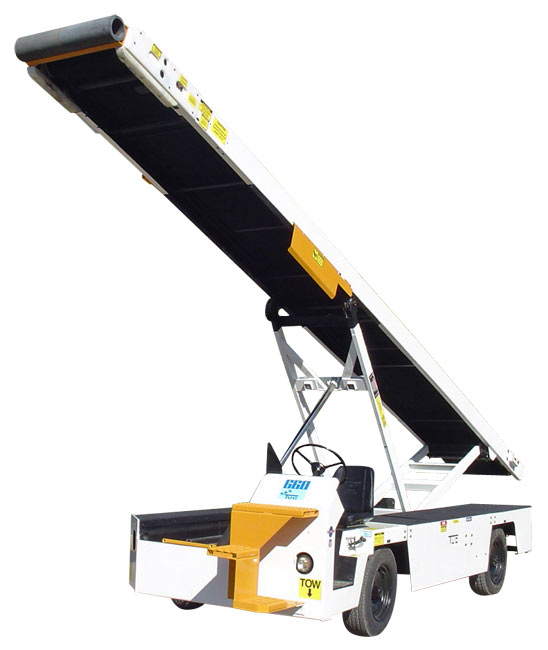

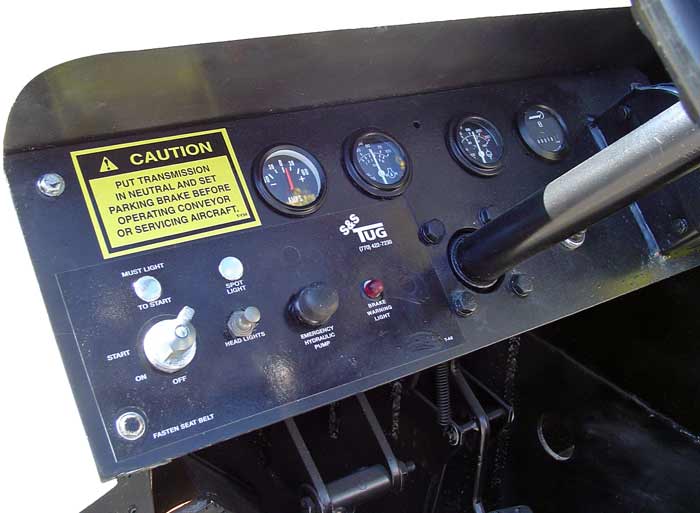

The TUG 660 is a customizable beltloader with independent height adjustment on either end of the conveyer. The front of the conveyor operates at heights between 43 and 170 inches (1.09 and 4.32 m) while the height at the rear of the unit can be adjusted between 13 and 37 inches (0.33 and 0.94 m). Controls are located at either end of the conveyer. The conveyer guide may be retracted as required. This beltloader includes safety features such as a collapsible safety rail and emergency hydraulic pump.

NOTE: This beltloader is shown with optional front steps.

  • Ford 2.3L Fuel-injected gas engine: Tier 2 Compliant
  • Recessed headlights
  • Combination tail and stop lights
  • Back-up lights
  • Automatic transmission
  • All hydraulic hoses rated at 2250 psi
  • Non-slip surface on fenders
  • Non-slip surface on brake pedal
  • Engine speed governor
  • Adjustable over-center park brake lever
  • Conveyor lifting emergency pump
  • Front, rear and side reflectors

  • Length: 300" (7620 mm)
  • Height: 59" (1498.6 mm)
  • Wheelbase: 110" (2794.0 mm)
  • Conveyor length less front bumper: 294" (7467.6 mm)
  • Conveyor width less guide rails: 34" (863.6 mm)
  • Conveyor capacity at full incline: 2000 lb (907 kg)
  • Belt width: 24" (609.6 mm)
  • Door sill compatibility: 40 to 170" (1016.0 to 4318.0 mm)
  • Gross vehicle weight: 6680 lb. (3030.0 kg)

  • Gas & diesel: 45-90 fpm (13.7 to 27.4 mpm)
  • Electric: 10-90 fpm (3.1 to 27.4 mpm)
